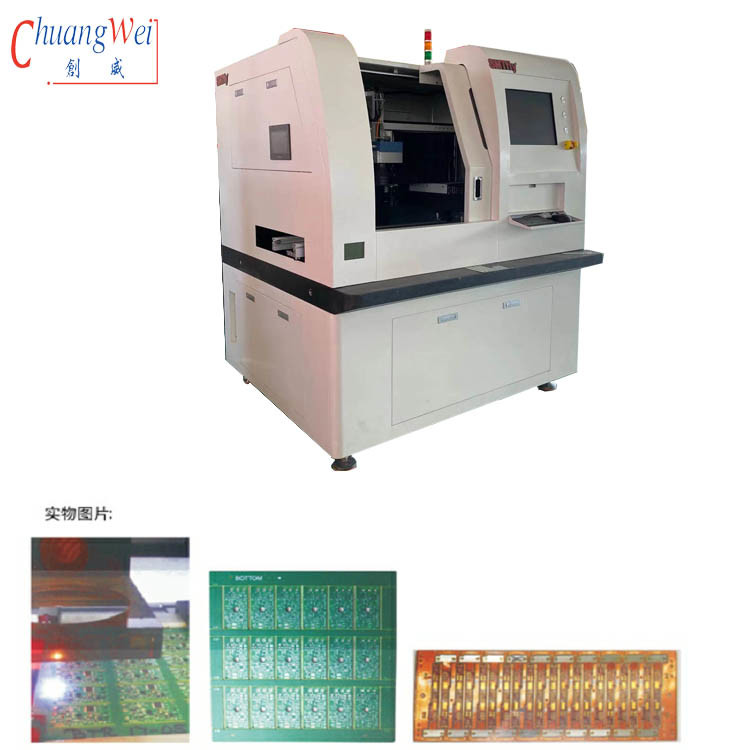

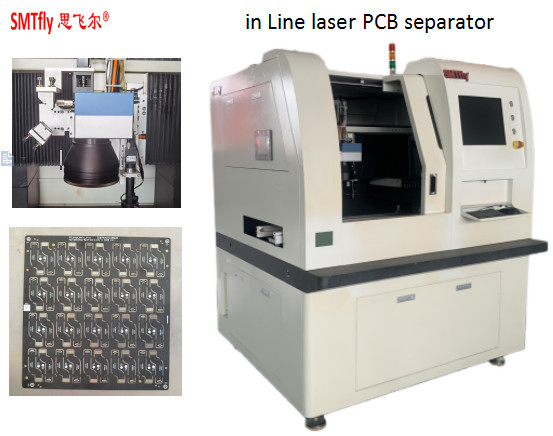

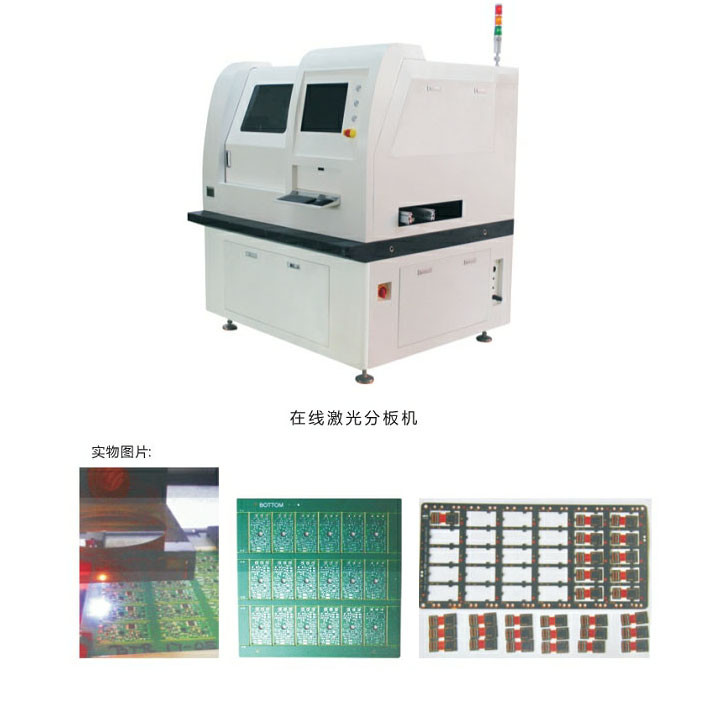

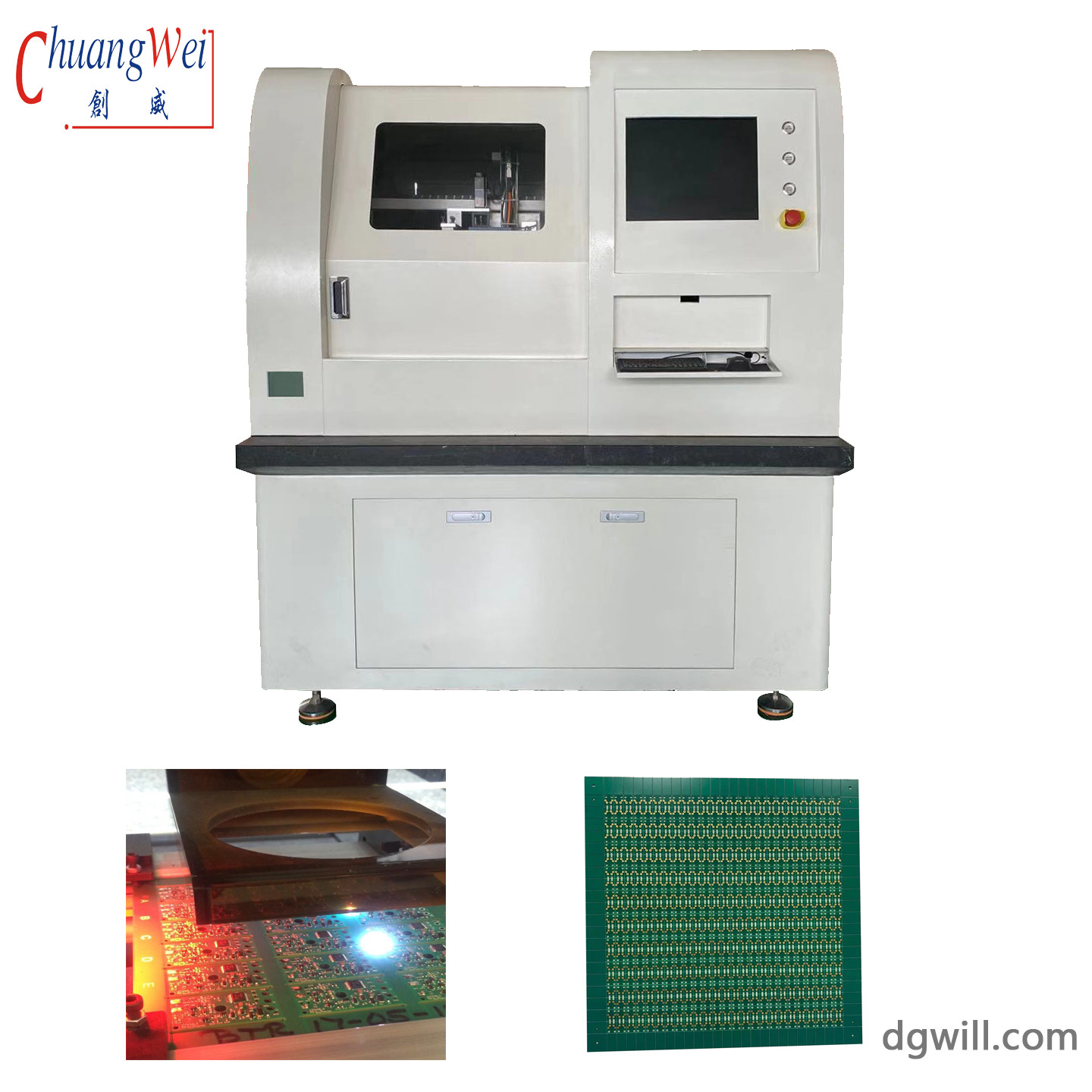

Inline Laser PCB Depaneling Machine with 355nm Laser Wavelength

PCB Depaneling Machine Laser Cutter with 355nm Laser Wavelength

Challenges of Depaneling using Routing/Die Cutting/Dicing Saws

• Damages and fractures to substrates and circuits due to mechanical stress
• Damages to PCB due to accumulated debris
• Constant need for new bits, custom dies, and blades
• Lack of versatility – each new application requires ordering of custom tools, blades, and dies
• Not good for high precision, multi-dimensional or complicated cuts
• Not useful PCB depaneling/singulation smaller boards

Lasers, on the other hand, are gaining control of the PCB depaneling/singulation market due to higher precision, lower stress on the parts, and higher throughput. Laser depaneling can be applied to a variety of applications with a simple change in settings. There is no bit or blade sharpening, lead time reordering dies and parts, or cracked/broken edges due to torque on the substrate. Application of lasers in PCB depaneling is dynamic and a non-contact process.

Advantages of Laser PCB depaneling/singulation

• No mechanical stress on substrates or circuits
• No tooling cost or consumables.
• Versatility – ability to change applications by simply changing settings
• Fiducial Recognition – more precise and clean cut
• Optical Recognition before PCB depaneling/singulation process begins.
• Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
• Extraordinary cut quality holding tolerances as small as < 50 microns.
• No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Specification

Laser Source











Why us





1. Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3..Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend
