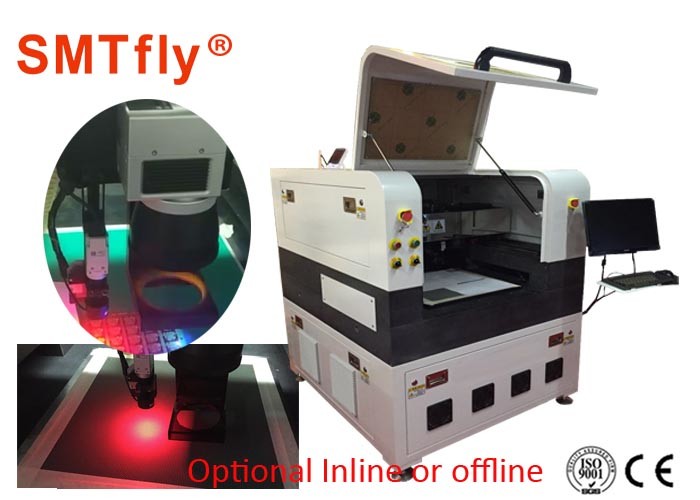

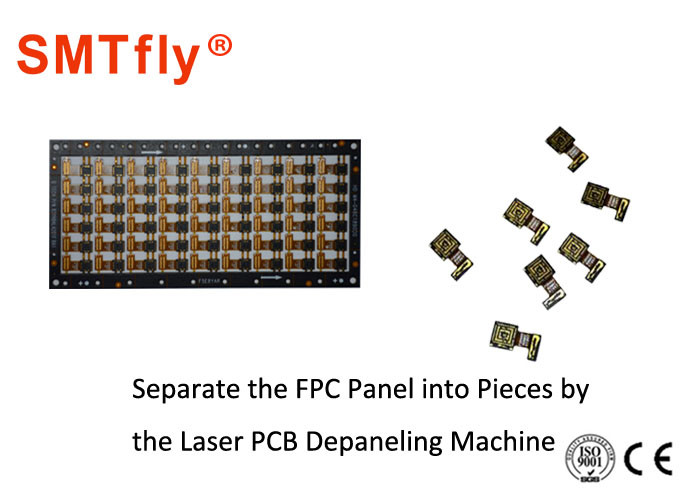

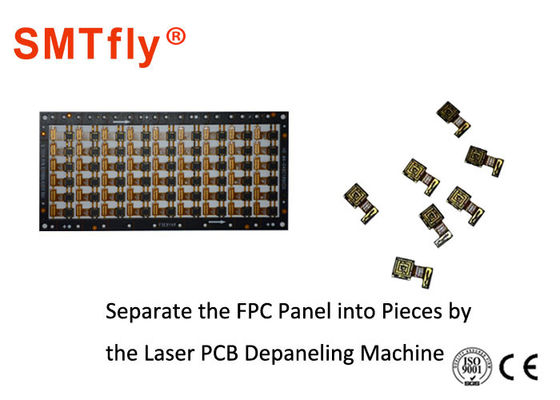

Automatic PCB FPC Laser Cutting Machine Offline Low Power Consumption Rigid-Flex PCB Cutting
1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3. Reduce energy consumption, Cost savings;
4. Cost-effective, fast cutting speed, stable performance
5. Available board thickness: 0-3.2mm . V-groove thickness:0-2mm;
6. Pre-set the cutting start and end point to well control the cutting length;
7. The blades are sharp and indurable. And they can be sharpened between 7 and 10 times;
8. Minimize the shearing stress to avoid micro-cracks of the solder joints;
|
Model |
SMTfly-6 |

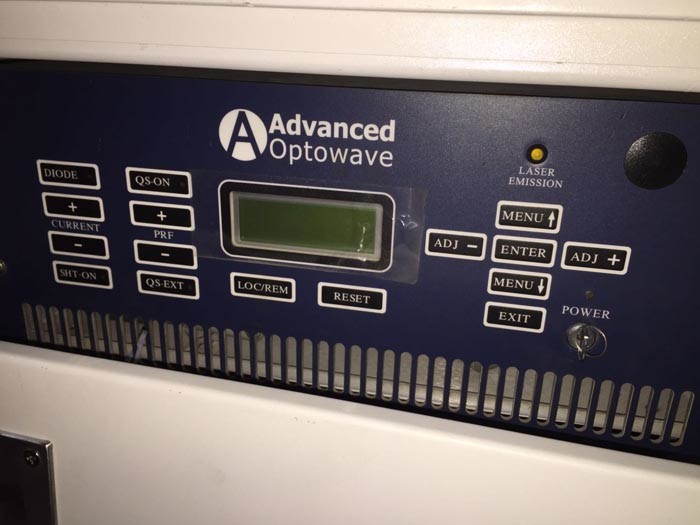

| Laser Brand | USA Optowave |
| Laser Rate | Solid-State UV Laser |
| Laser Wavelength | 335nm |
| Laser Power | 10/12/15/17/20W |
| Positioning Precision | ±2μm |
| Repetition Precision | ±1μm |
| Working Area | 600*600mm |
| Laser Scanning Speed | 2500mm/s (max) |
| Machine Weight | 2300kgs |
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 1-2 days after getting your payment
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them..
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
