Name: In Line laser PCB Depanel Machine Optional
Brand: SMTfly pcb depaneling
SKU: SMTfly-5L
Rating: 4.6 (105 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material:: Stainless Steel

Laser: 10-17W

Voltage: 110V/220V

Machine Dimension: 1480mm*1360mm*1412 Mm

Machine Weight: 1500kgs

Name: UV Laser Depaneling System

High Light:

AC220V Pcb Laser PCB Depaneling Machine

AC220V laser cutter pcb

17W Pcb Laser PCB Depaneling Machine

Basic Infomation

Place of Origin: China

Brand Name: SMTfly pcb depaneling

Certification: CE ROHS

Model Number: SMTfly-5L

Payment & Shipping Terms

Packaging Details: each set be packed in plywood case

Delivery Time: 1-3 work days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 260 sets per month

Gallery

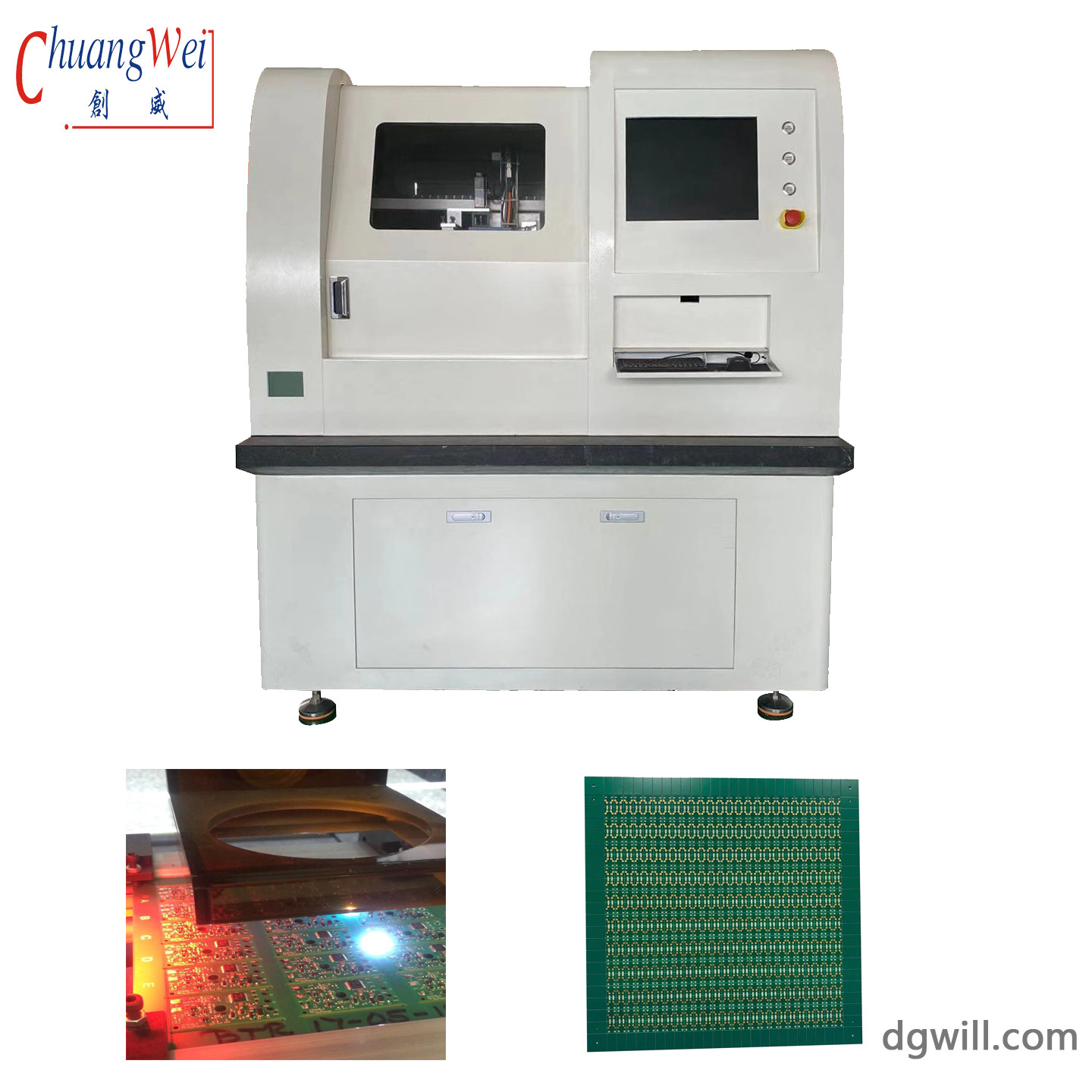

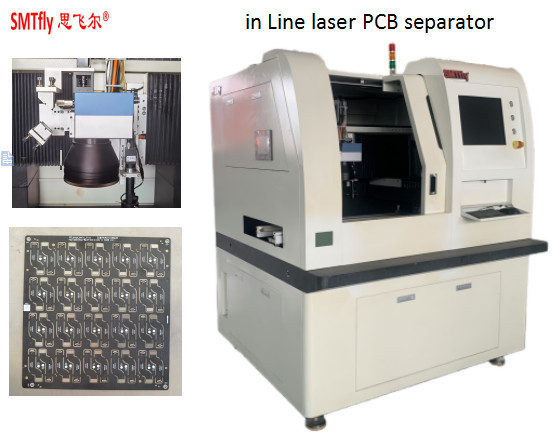

In Line laser PCB Depanel Machine Optional

Product Description

In Line laser PCB Depanel Machine Optional Inline or Offline

Advantages of Laser PCB depaneling/singulation

No mechanical stress on substrates or circuits
No tooling cost or consumables.
Versatility – ability to change applications by simply changing settings
Fiducial Recognition – more precise and clean cut
Optical Recognition before PCB depaneling/singulation process begins.
Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
Extraordinary cut quality holding tolerances as small as < 50 microns.
No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Specification:

Specification
Cutting accuracy of the whole machine: 0.02mm	humidity: ＜60%
size of processed products: 330330mm/330670	floor loading: 1500kgf/m2
moving speed of the platform:300mm/s	human-computer operation and data storage:industrial computer
processing speed of the vibration mirror: ≤50000mm/s	size of the host computer: 125013001600 (L X H X D)mm
minimum processing line width : 0.0015mm	Machine Weight: 1500 Kg
positioning accuracy of the platform: 0.002mm	Equipment Source: AC220/3KW
operation interface: Chinese/English interface	operating system: Windows7
repeatability of the platform: 0.002mm	processing picture file: Gerber或DXF
size of the dust collector: 500650900 (L X H X D)mm	compensation for shrinkage and expansion: Automatic compensation of MARK points
ambient temperature: 20±2℃	dust collector: 1.5KW
power supply of the dust collector: AC 220V 50/60Hz	dust collector weight: 85Kg
