One of the main advantages of this PCB laser cutting machine is that it applies no mechanical stress on substrates or circuits. This means that there is no risk of damaging the delicate electronic components during the cutting process. Additionally, there are no tooling costs or consumables to worry about, making it a cost-effective solution for PCB depaneling.
The laser cutting machine is also highly versatile, with the ability to depanel virtually any substrate. It features fiducial recognition and optical recognition before the PCB depaneling/singulation process begins, ensuring that the cutting process is as accurate as possible. The machine also offers extraordinary cut quality, holding tolerances as small as < 50 microns. This means that even complex contours and multidimensional boards can be cut with ease.
With no design limitations, this laser cutting machine can cut virtually any size PCB board, including complex contours and multidimensional boards. It is also designed for easy human-computer operation and data storage, featuring an industrial computer for efficient and effective operation. The machine is optimized for use in ambient temperatures of 20±2℃.
In summary, the Laser PCB Depaneling Machine is a highly precise and versatile cutting machine laser that is ideal for the PCB industry. With no mechanical stress on substrates or circuits, no tooling costs or consumables, and the ability to cut virtually any substrate, this machine is a cost-effective solution for PCB depaneling/singulation process. Its extraordinary cut quality and no design limitations make it an indispensable tool for the PCB industry.
| Advantages | No mechanical stress on substrates or circuits, No tooling cost or consumables, Versatility, Fiducial Recognition, Optical Recognition before PCB depaneling/singulation process begins, Ability to depanel virtually any substrate, Extraordinary cut quality holding tolerances as small as < 50 microns, No design limitation – ability to cut virtually any size PCB board including complex contours and multidimensional boards |
| Processed Product Size | 330*330mm/330*670 |
| Laser | 10-17W |
| Dust Collector Power Supply | AC 220V 50/60Hz |
| Voltage | 110V/220V |
| Cutting Accuracy | 0.02mm |
| Machine Weight | 1500kgs |
| Floor Loading | 1500kgf/m2 |
| Mission | Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
| Machine Dimension | 1480mm*1360mm*1412 Mm |

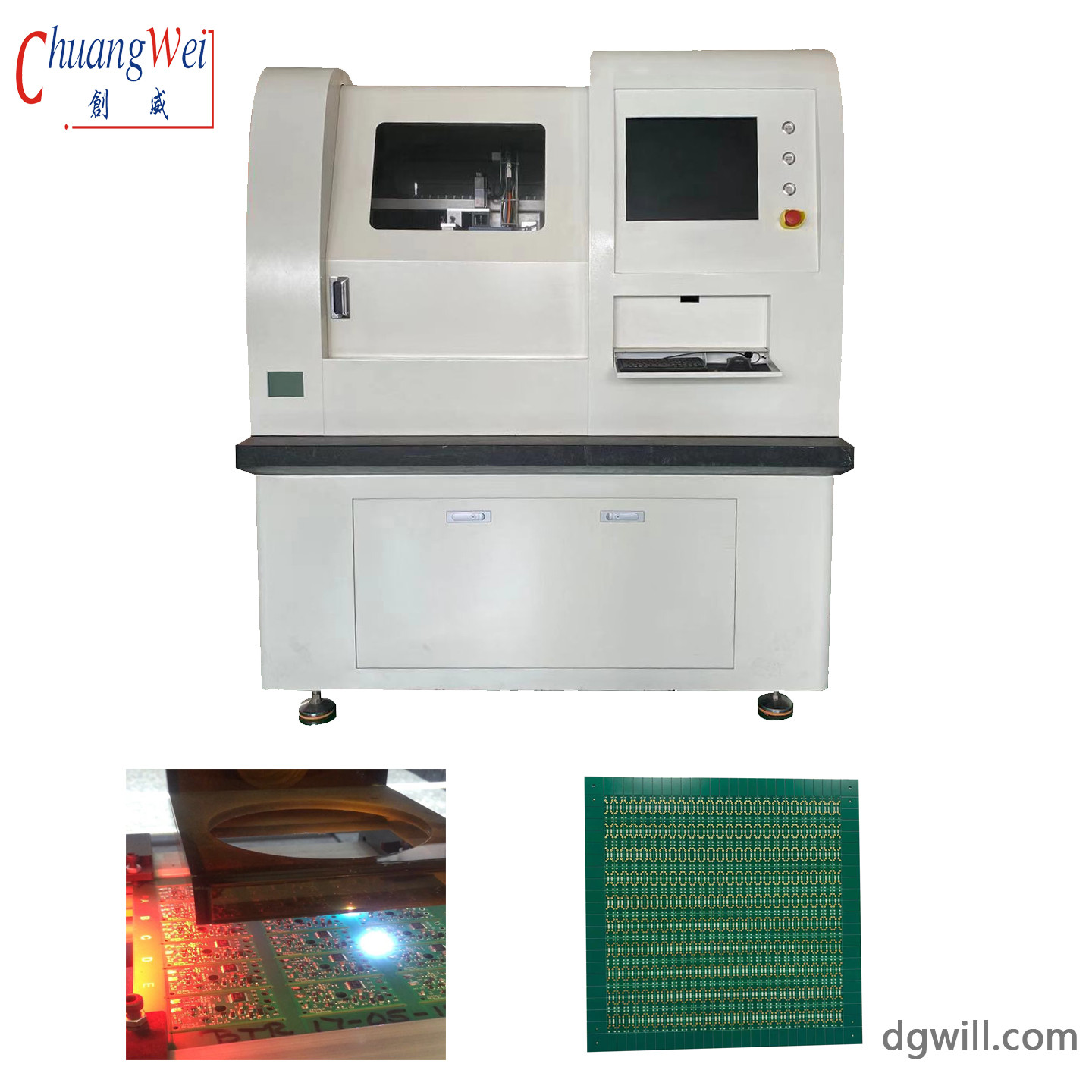

The CWVC-6 laser PCB depaneling machine is an excellent cutting machine laser that has many applications in the electronics industry. It is particularly useful in cutting printed circuit boards (PCBs) to size, making it an essential tool for PCB manufacturers. The repeatability of the platform is an impressive 0.002mm, ensuring that the cuts are precise and accurate every time. The moving speed of the platform is fast, at 300mm/s, allowing for quick and efficient operation.
The CWVC-6 laser PCB depaneling machine is also known as a UV laser depaneling system. It is equipped with an industrial computer that allows for easy human-computer operation and data storage. This feature makes it easy to use for both experienced and novice operators. The product comes with a one-year warranty, except for accessories, giving customers peace of mind knowing they have purchased a high-quality product that is built to last.
The CWVC-6 laser PCB depaneling machine is suitable for a variety of product application occasions and scenarios. It is perfect for use in PCB manufacturing plants, electronic product assembly plants, and research and development laboratories. It is also suitable for small businesses and DIY enthusiasts who require a high-quality cutting machine laser for their projects. With its high precision and accuracy, it can cut through a variety of materials, including FR-4, polyimide, and ceramics.
In conclusion, the ChuangWei CWVC-6 laser PCB depaneling machine is an excellent choice for anyone looking for a reliable and high-quality PCB cutting machine. Its fast delivery time, sturdy packaging, and one-year warranty make it an attractive and reliable option. Its precision and accuracy make it suitable for a wide range of product application occasions and scenarios, making it a must-have tool for the electronics manufacturing industry.
The Laser PCB Depaneling Machine is designed to provide efficient and precise cutting of printed circuit boards. Our product technical support and services include:
Our experienced team of technicians and engineers are dedicated to ensuring the optimal performance of your depaneling machine. Contact us for more information on our technical support and services.
Product Packaging:
The Laser PCB Depaneling Machine will be packaged securely to ensure that it arrives at your doorstep in perfect condition. The machine and all its accessories will be placed in a sturdy wooden crate, and properly cushioned to prevent any damage during transportation.
Shipping:
Once you place your order for the Laser PCB Depaneling Machine, we will process it within 2-3 business days. Once the machine is ready to be shipped, we will provide you with a tracking number that you can use to track your shipment. Shipping times may vary depending on your location, but you can expect it to arrive within 2-4 weeks.
Price: Negotiable
Supply Ability: 100 sets per year
Delivery Time: 5-8 days
Packaging Details: plywood case
Payment Terms: T/T, Western Union, L/C
