Name: Industrial Computer And Data Storage For Easy Operation Of Laser PCB Depaneling Machine
Brand: SMTfly pcb depaneling
SKU: SMTfly-5L
Rating: 4.6 (122 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material:: Stainless Steel

Laser: 10-17W

Voltage: 110V/220V

Machine Dimension: 1480mm*1360mm*1412 Mm

Machine Weight: 1500kgs

Name: UV Laser Depaneling System

High Light:

Easy Operation Laser PCB Depaneling Machine

Data Storage PCB Depaneling Machine

Basic Infomation

Place of Origin: China

Brand Name: SMTfly pcb depaneling

Certification: CE ROHS

Model Number: SMTfly-5L

Payment & Shipping Terms

Packaging Details: each set be packed in plywood case

Delivery Time: 5 work days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 260 sets per month

Gallery

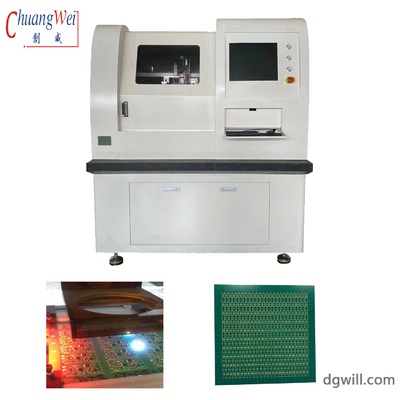

Industrial Computer And Data Storage For Easy Operation Of Laser PCB Depaneling Machine

Product Description

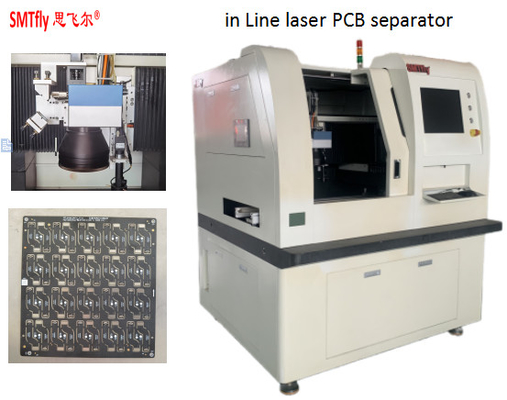

In Line laser PCB Depanel Machine Optional Inline or Offline

Advantages of Laser PCB depaneling/singulation

No mechanical stress on substrates or circuits
No tooling cost or consumables.
Versatility – ability to change applications by simply changing settings
Fiducial Recognition – more precise and clean cut
Optical Recognition before PCB depaneling/singulation process begins.
Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
Extraordinary cut quality holding tolerances as small as < 50 microns.
No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Specification:

Specification
Cutting accuracy of the whole machine: 0.02mm	humidity: ＜60%
size of processed products: 330330mm/330670	floor loading: 1500kgf/m2
moving speed of the platform:300mm/s	human-computer operation and data storage:industrial computer
processing speed of the vibration mirror: ≤50000mm/s	size of the host computer: 125013001600 (L X H X D)mm
minimum processing line width : 0.0015mm	Machine Weight: 1500 Kg
positioning accuracy of the platform: 0.002mm	Equipment Source: AC220/3KW
operation interface: Chinese/English interface	operating system: Windows7
repeatability of the platform: 0.002mm	processing picture file: Gerber或DXF
size of the dust collector: 500650900 (L X H X D)mm	compensation for shrinkage and expansion: Automatic compensation of MARK points
ambient temperature: 20±2℃	dust collector: 1.5KW
power supply of the dust collector: AC 220V 50/60Hz	dust collector weight: 85Kg

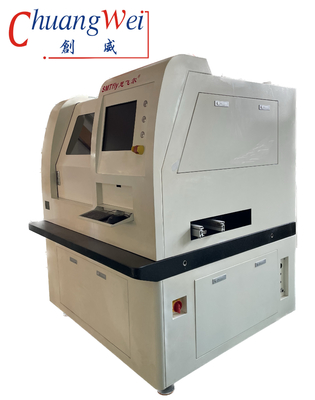

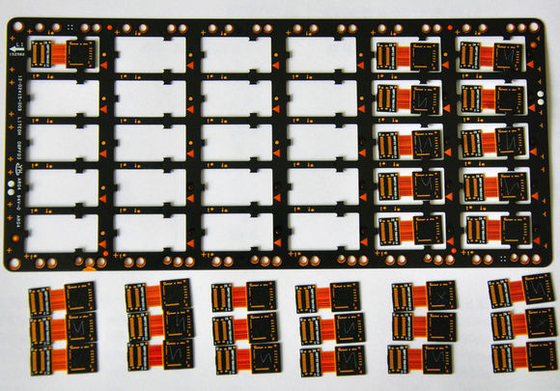

PCB Laser Depaneling Detailed Photoes:

CE approval

Production flow
