High Precision Cutting Accuracy of 0.02mm with Laser PCB Depaneling Machine

1 Set
MOQ
Negotiable
Price
High Precision Cutting Accuracy of 0.02mm with Laser PCB Depaneling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material:: Stainless Steel
Laser: 10-17W
Voltage: 110V/220V
Machine Dimension: 1480mm*1360mm*1412 Mm
Machine Weight: 1500kgs
Name: UV Laser Depaneling System
High Light:

0.02mm Laser PCB Depaneling Machine

,

High Precision Laser PCB Depaneling Machine

,

Cutting Accuracy Laser PCB Depaneling Machine
Basic Infomation
Place of Origin: China
Brand Name: SMTfly pcb depaneling
Certification: CE ROHS
Model Number: SMTfly-5L
Payment & Shipping Terms
Packaging Details: each set be packed in plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Product Description

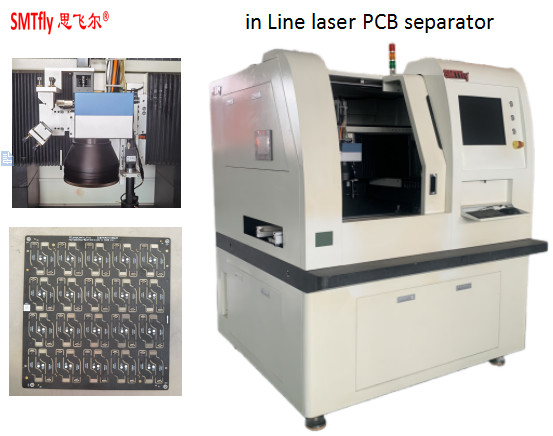

In Line laser PCB Depanel Machine Optional Inline or Offline



Advantages of Laser PCB depaneling/singulation

  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards



Specification:







Specification

Cutting accuracy of the whole machine: 0.02mm

humidity: ＜60%

size of processed products: 330*330mm/330*670

floor loading: 1500kgf/m2

moving speed of the platform:300mm/s

human-computer operation and data storage:industrial computer

processing speed of the vibration mirror: ≤50000mm/s

size of the host computer: 1250*1300*1600 (L X H X D)mm

minimum processing line width : 0.0015mm

Machine Weight: 1500 Kg

positioning accuracy of the platform: 0.002mm

Equipment Source: AC220/3KW

operation interface: Chinese/English interface

operating system: Windows7

repeatability of the platform: 0.002mm

processing picture file: Gerber或DXF

size of the dust collector: 500*650*900 (L X H X D)mm

compensation for shrinkage and expansion: Automatic compensation of MARK points

ambient temperature: 20±2℃

dust collector: 1.5KW

power supply of the dust collector: AC 220V 50/60Hz

dust collector weight: 85Kg
