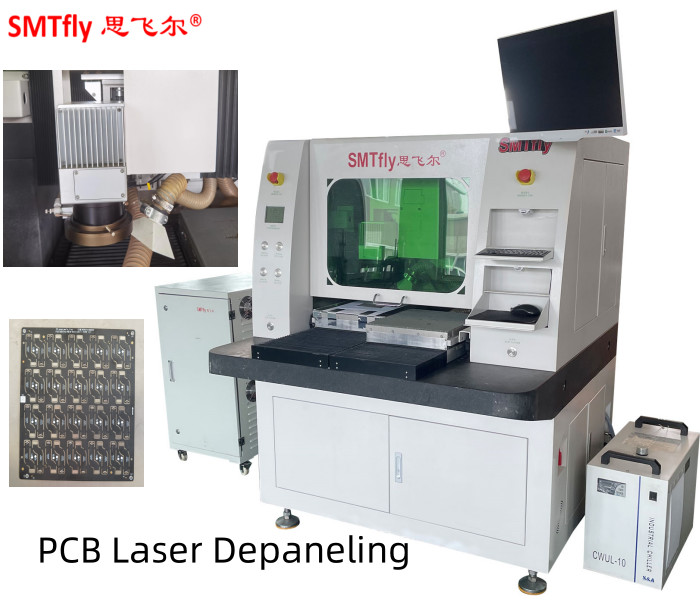

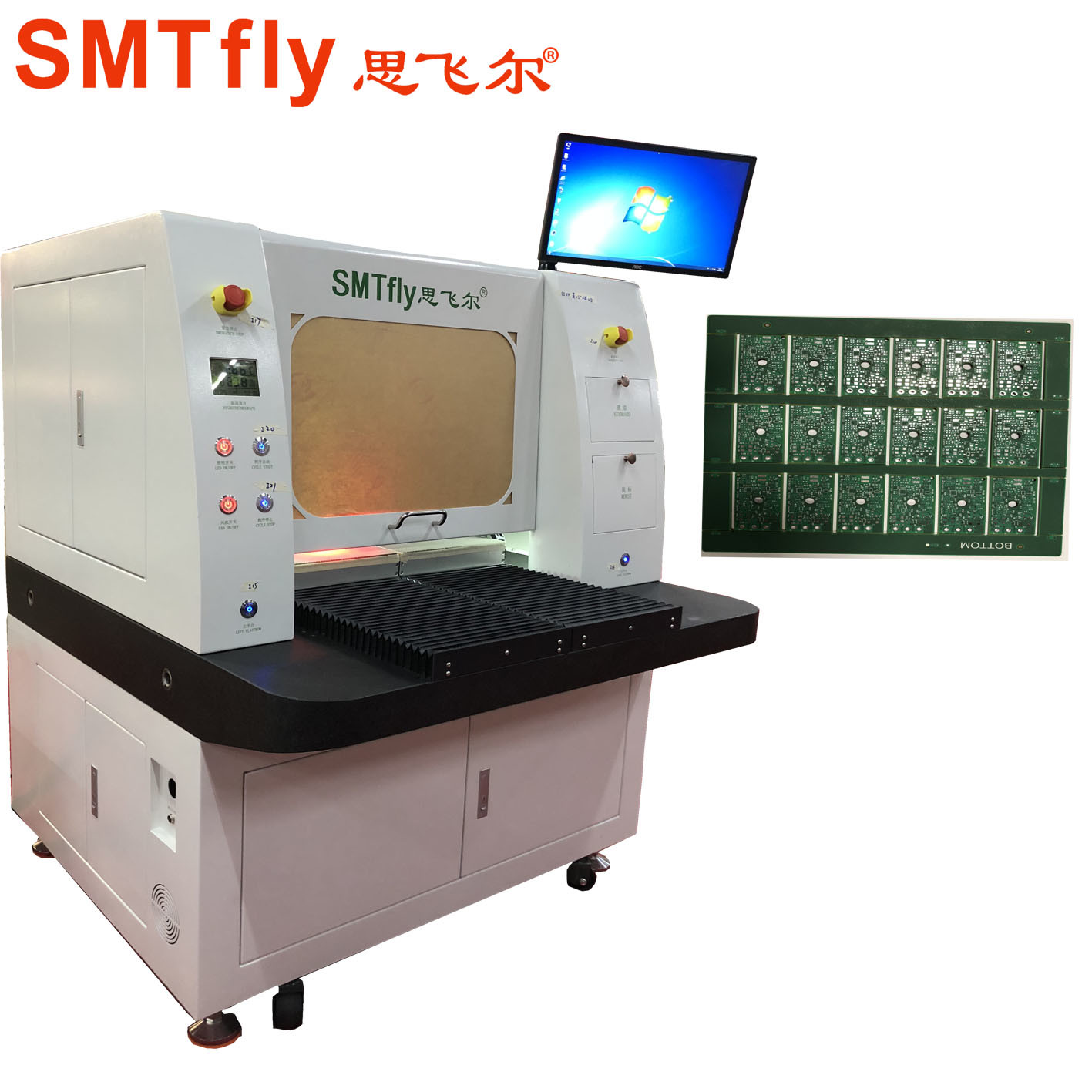

PCB Laser Cutting Machine for Printed Circuit Boards and Flex Boards PCB Laser Cutting Parameter
AC220V Laser Cut FR4 Precision Laser Pcb Cutting Depaneling Machine
Parameter |
| |
Technical parameters | Main body of laser | 1000mm*940mm *1520 mm |
Weight of machine | 450Kg | |
Power | AC220 V | |
Laser | 355 nm | |
Laser |
Optowave 10W(US) | |
Material | ≤1.2 mm | |
Precisio | ±20 μm | |
Platfor | ±2 μm | |
Platform | ±2 μm | |
Working area | 300*300mm | |
Maximum | 3 KW | |
Vibrating | CTI(US) | |
Power | AC220 V | |
Diameter | 20±5 μm | |
Ambient | 20±2 ℃ | |
Ambient | ＜60 % | |
The Machine | Marble | |
PCB Laser Cutting Machine Advantages
The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.
PCB Laser Cutting Machine Application
FPC and some relative materials;

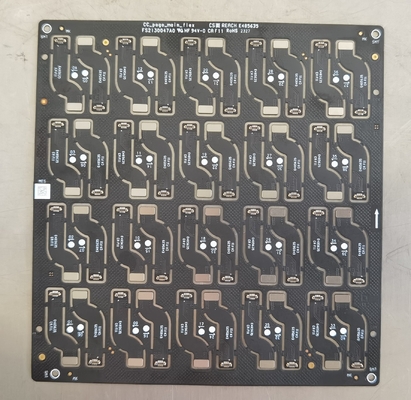

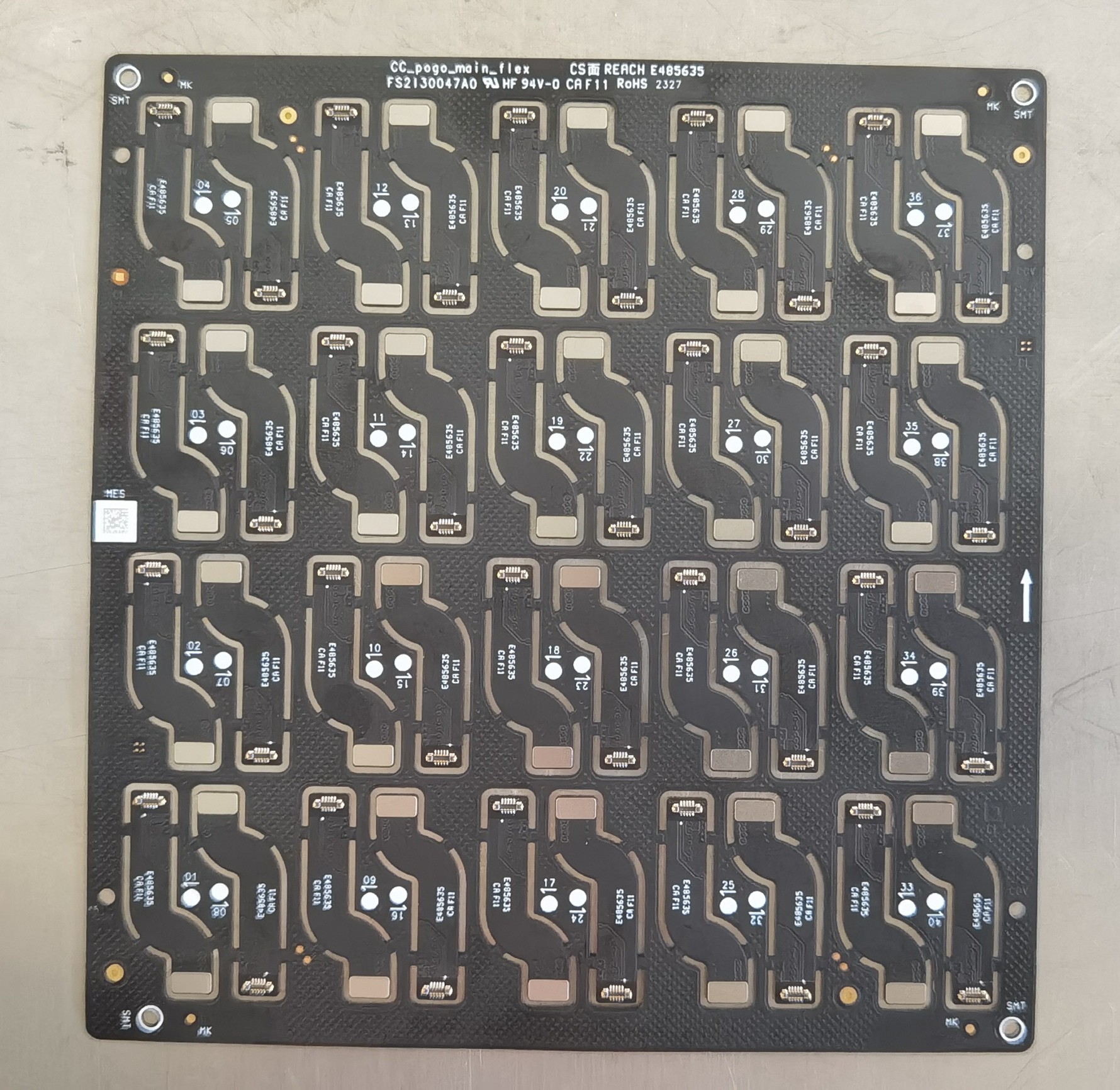

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
