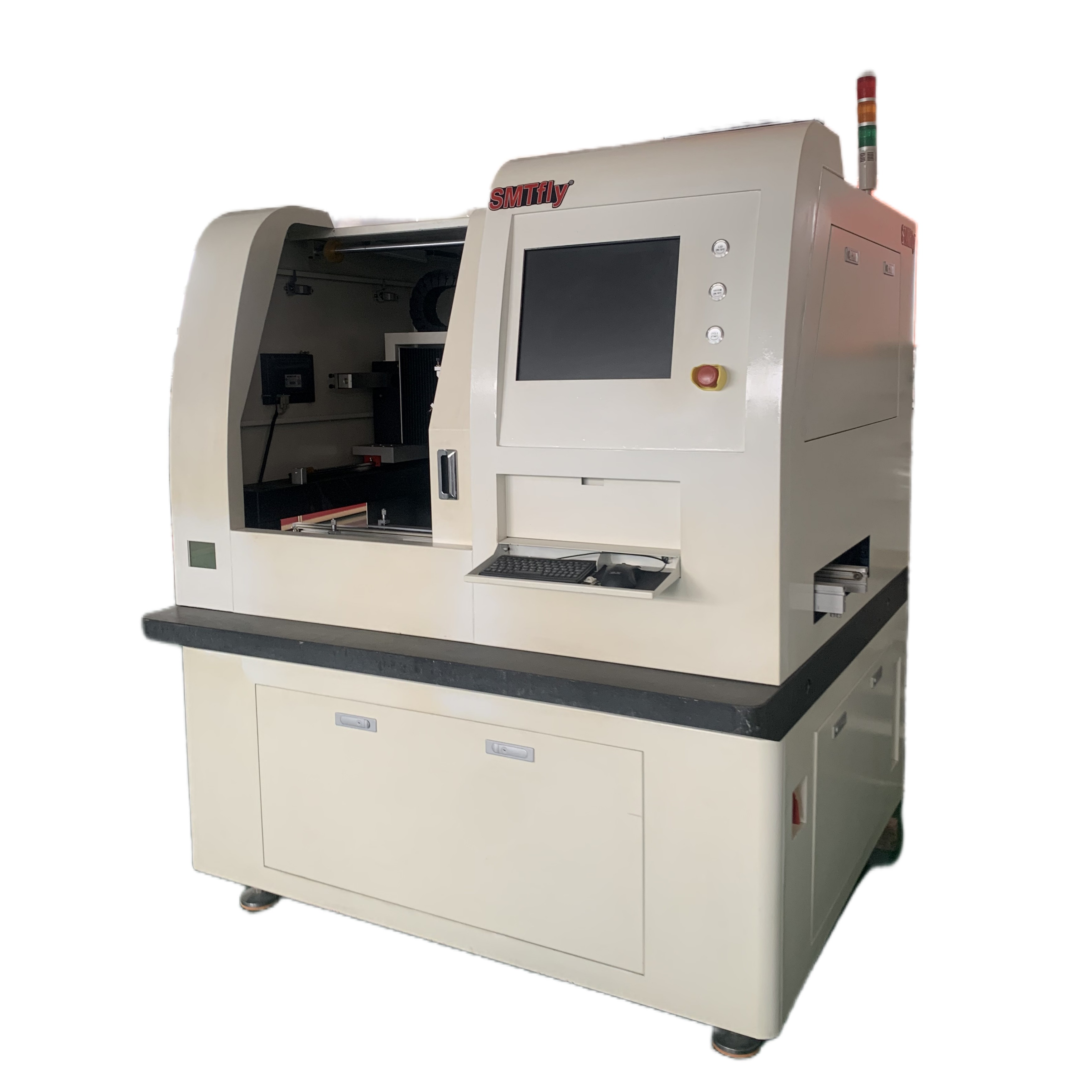

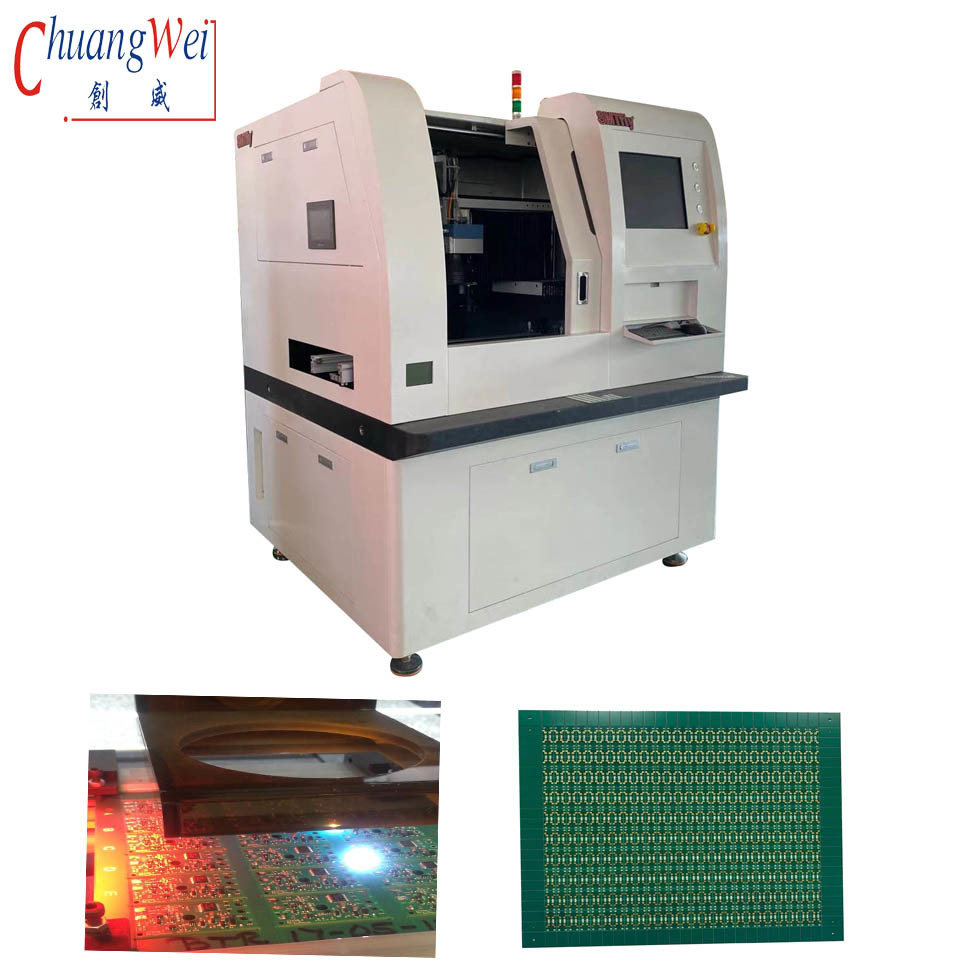

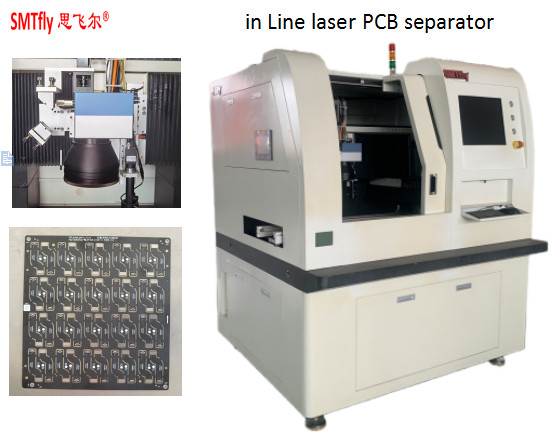

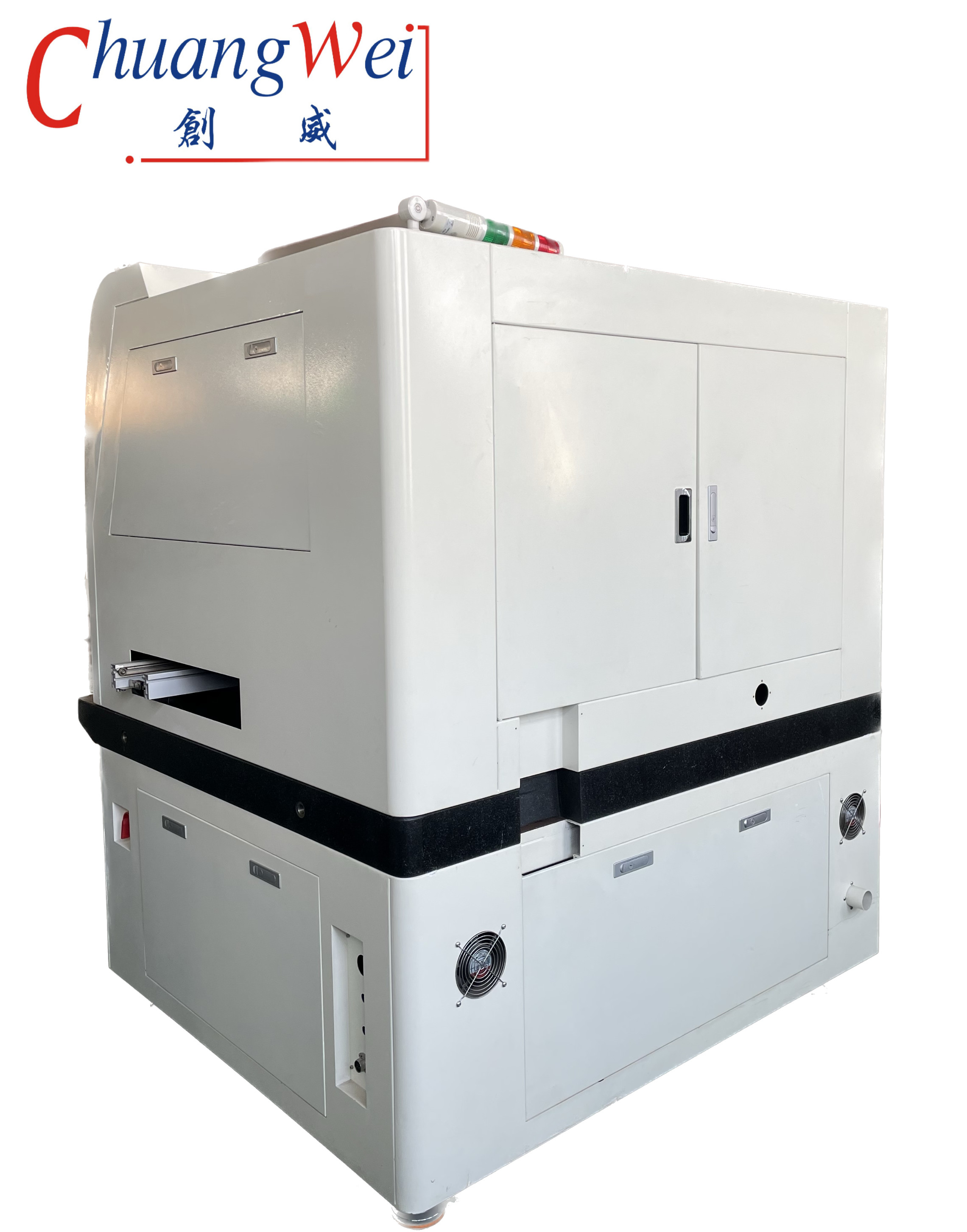

In Line laser PCB Depanel Machine Optional Inline or Offline
Advantages of Laser PCB depaneling/singulation
Specification:
|
Specification |
|
|
Cutting accuracy of the whole machine: 0.02mm |
humidity: ＜60% |
|
size of processed products: 330*330mm/330*670 |
floor loading: 1500kgf/m2 |
|
moving speed of the platform:300mm/s |
human-computer operation and data storage:industrial computer |
|
processing speed of the vibration mirror: ≤50000mm/s |
size of the host computer: 1250*1300*1600 (L X H X D)mm |
|
minimum processing line width : 0.0015mm |
Machine Weight: 1500 Kg |
|
positioning accuracy of the platform: 0.002mm |
Equipment Source: AC220/3KW |
|
operation interface: Chinese/English interface |
operating system: Windows7 |
|
repeatability of the platform: 0.002mm |
processing picture file: Gerber或DXF |
|
size of the dust collector: 500*650*900 (L X H X D)mm |
compensation for shrinkage and expansion: Automatic compensation of MARK points |
|
ambient temperature: 20±2℃ |
dust collector: 1.5KW |
|
power supply of the dust collector: AC 220V 50/60Hz |
dust collector weight: 85Kg |
Our Advantage :
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
