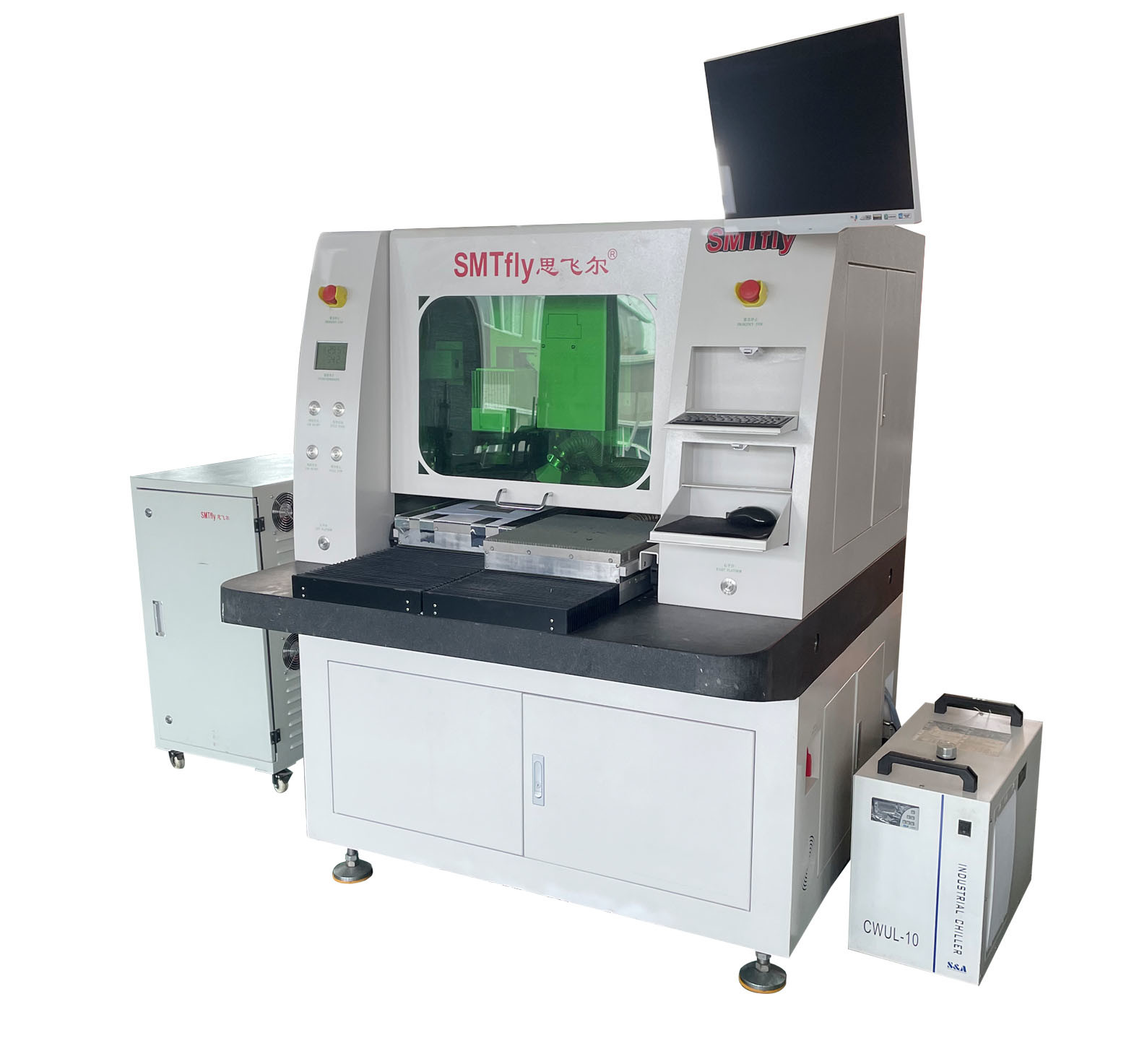

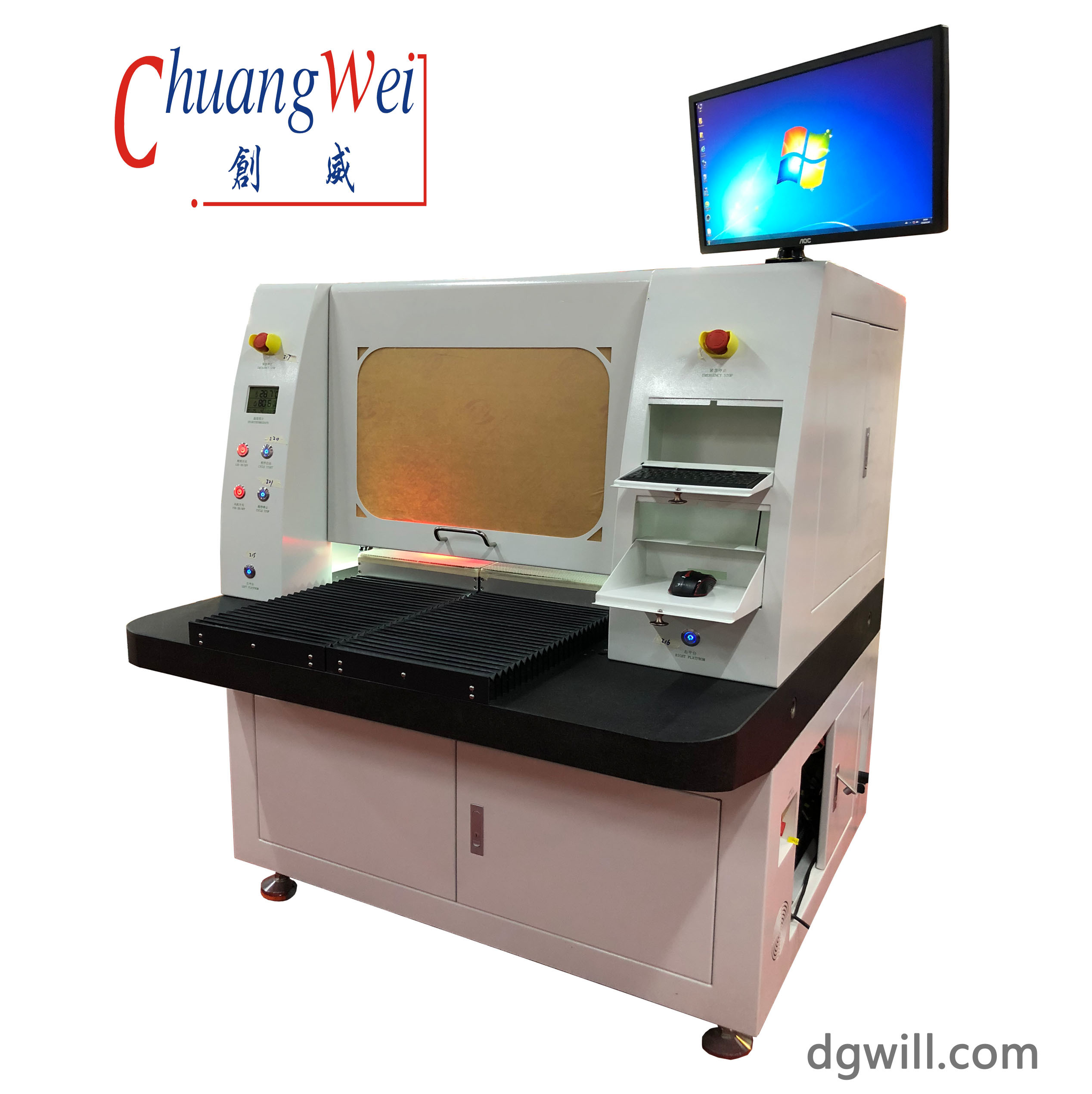

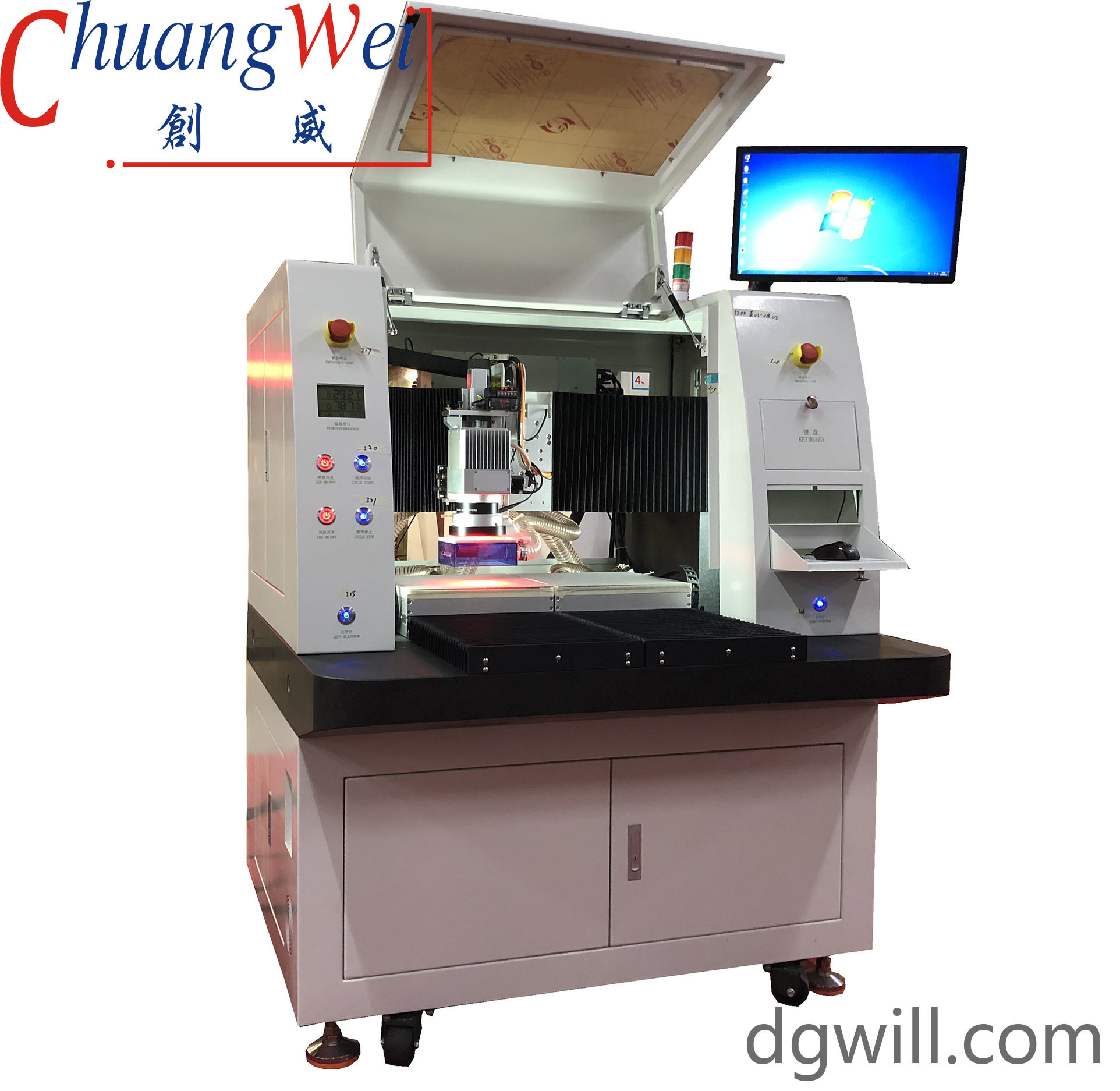

PCB Laser Depaneling Separator 0.02 Precision 335mm
Features:
| Specification | |
| Cutting accuracy of the whole machine: 0.03mm | humidity: ＜60% |
| size of processed products: 330*330mm/330*670 | floor loading: 1500kgf/m2 |
| moving speed of the platform:300mm/s | human-computer operation and data storage: industrial computer |
| processing speed of the vibration mirror: ≤50000mm/s | size of the host computer: 1250*1300*1600 (L X H X D)mm |
| minimum processing line width: 0.002mm | Machine Weight: 1500 Kg |
| positioning accuracy of the platform: 0.003mm | Equipment Source: AC220/3KW |
| operation interface: Chinese/English interface | operating system: Windows7 |
| repeatability of the platform: 0.003mm | processing picture file: Gerber或DXF |
| size of the dust collector: 500*650*900 (L X H X D)mm | compensation for shrinkage and expansion: Automatic compensation of MARK points |
| ambient temperature: 20±2℃ | dust collector: 1.5KW |
| the power supply of the dust collector: AC 220V 50/60Hz | dust collector weight: 85Kg |
Our Service:
A. Installation: On-site installation and commissioning, to ensure smooth production;
B. Factory Warranty: One-year warranty factory service;
C. Pre-consultation: provides professional SMT solutions for the full line;
D. Technical Training: provides professional training from level 1 to level 3;
E. Technical Support: provides 7 days * 24 hours technical support;
F. Software Upgrade: offer lifetime free software upgrades for all products.
