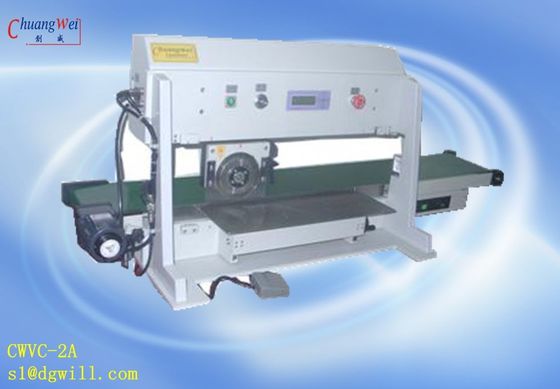

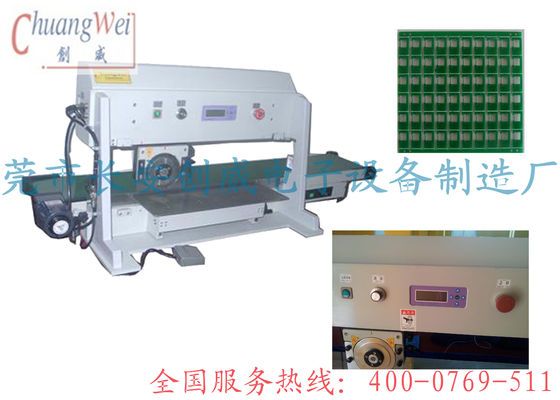

Fiber Glass PCB Separation With Convey Belt And CE Approved PCB Separating Specification:
|
pcb separating machine size |
880mm X 460mm X 560mm |
|
pcb cutting length |
460 mm |
|
pcb separating machine weight |
185 kg |
|
pcb cutting thickness |
0.6-3.5 mm |
|
pcb cutting speed |
100 / 200 / 300 / 500 mm /s |
Features:
1. The circular blade moves horizontally and the straight knife moves up and down
to cut the board with the pcb staying, thus the electronic elements won’t be damaged .
2 . With microcomputer technology, the program can control the cutting schedule and cutting times with storage of up to 100 groups of data . This machine is suitable for width from 58mm to 220mm of board .
3. The gap between the upper and lower blade is adjustable , from 0mm to 15mm .
4. The straight blade moves up and down , which is available to cut double-sided board .
5. The manual switch controls the cutting speed of 1 cut/s .
6. No need to feeding boards manually with high-tech device , there are reserved port for external robotic hand .
7. The productivity is visible due to the auto counter performance .
8. With safety device of Omron infrared light sensor , the machine stops operation when it senses the hand or foreign matter in the moving zone of the blade .
9. With step motor , the machine locks by itself and positioning accurately when in an energized state .
10. When the solder panel with many pieces of boards is separated , it’s easy to hurt the elements or the circuit . While this machine is available to avoid the damages and improve working efficiency and quality .
11. After cutting the pcb , the boards can be transferred directly to the inspection line through the conveyor belt .
