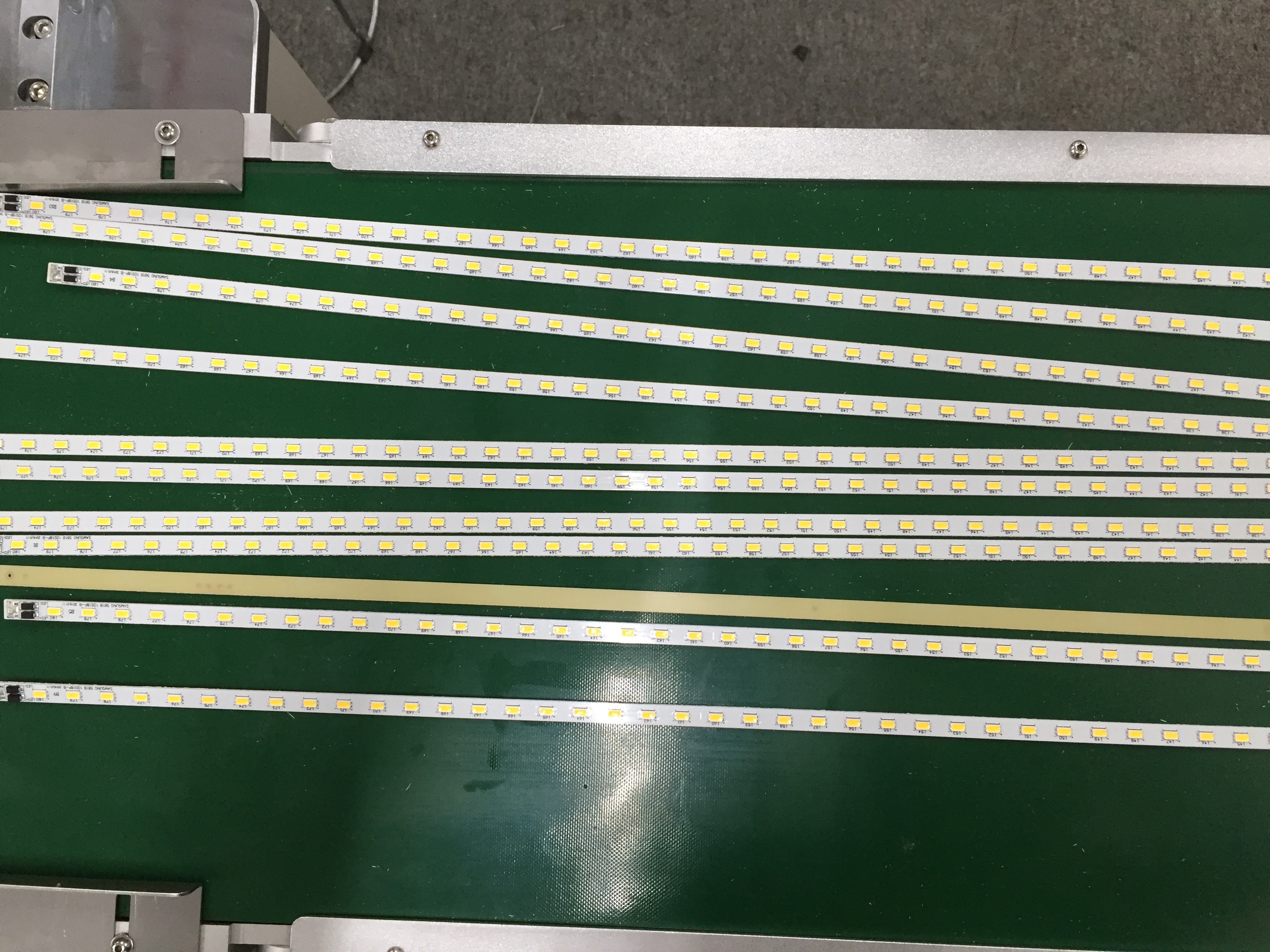

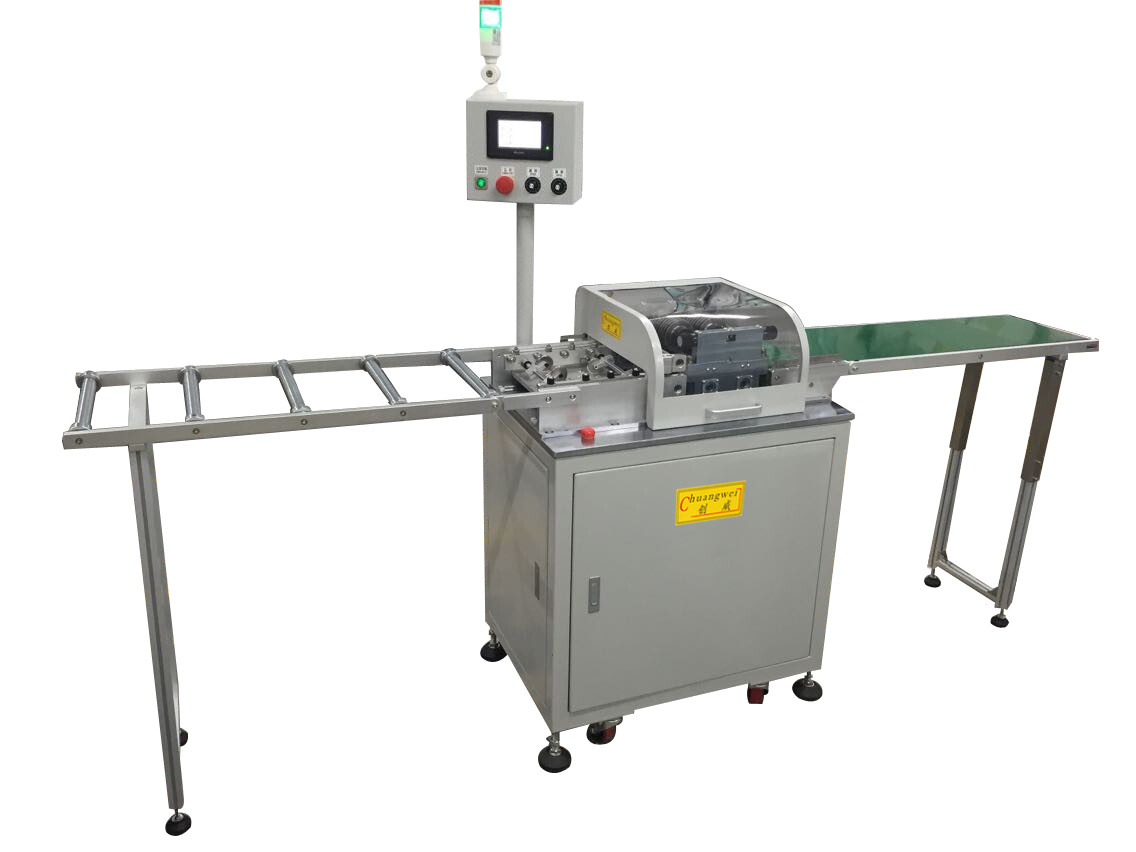

Multi-blade Pcb Separator Cutting a Large Number of LED Board at One Time:
Features for PCB separator:

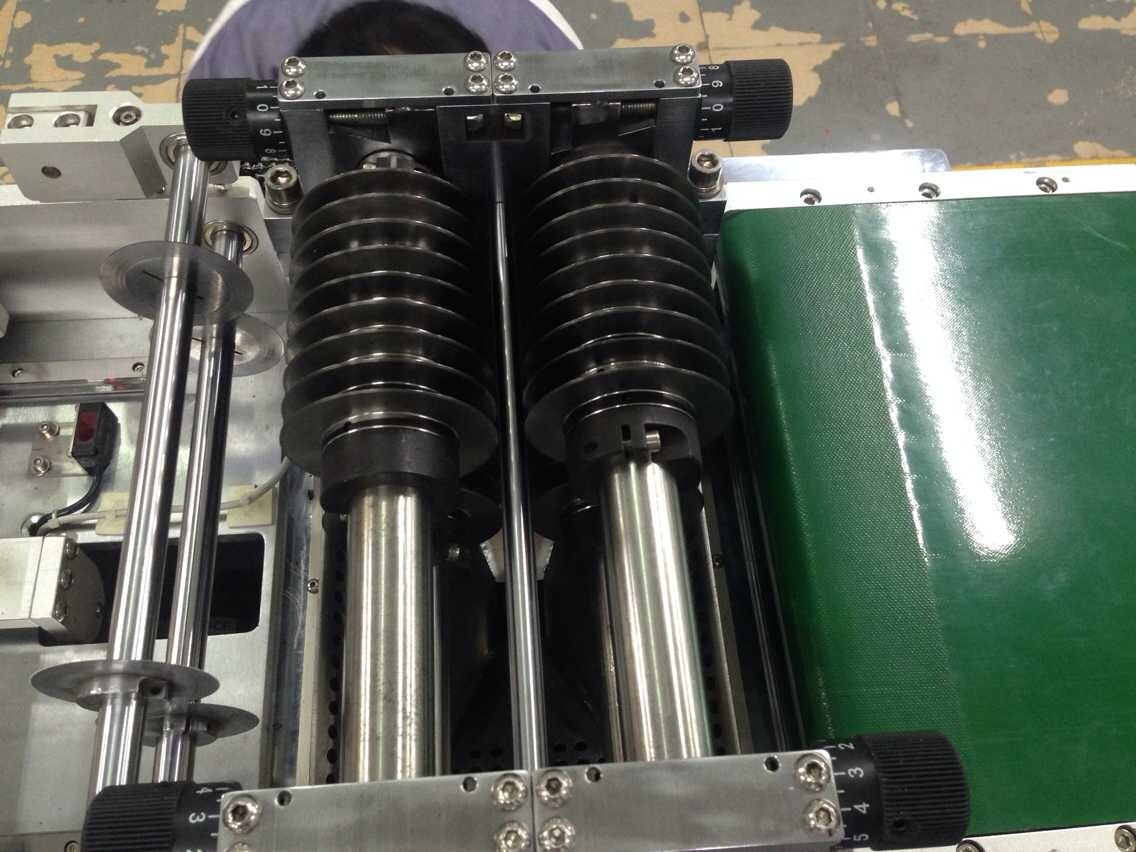

1), 10 pairs of blades are available
2), Of the blades is adjusted to individual PCB
3), Sensors are used to monitor the separating process

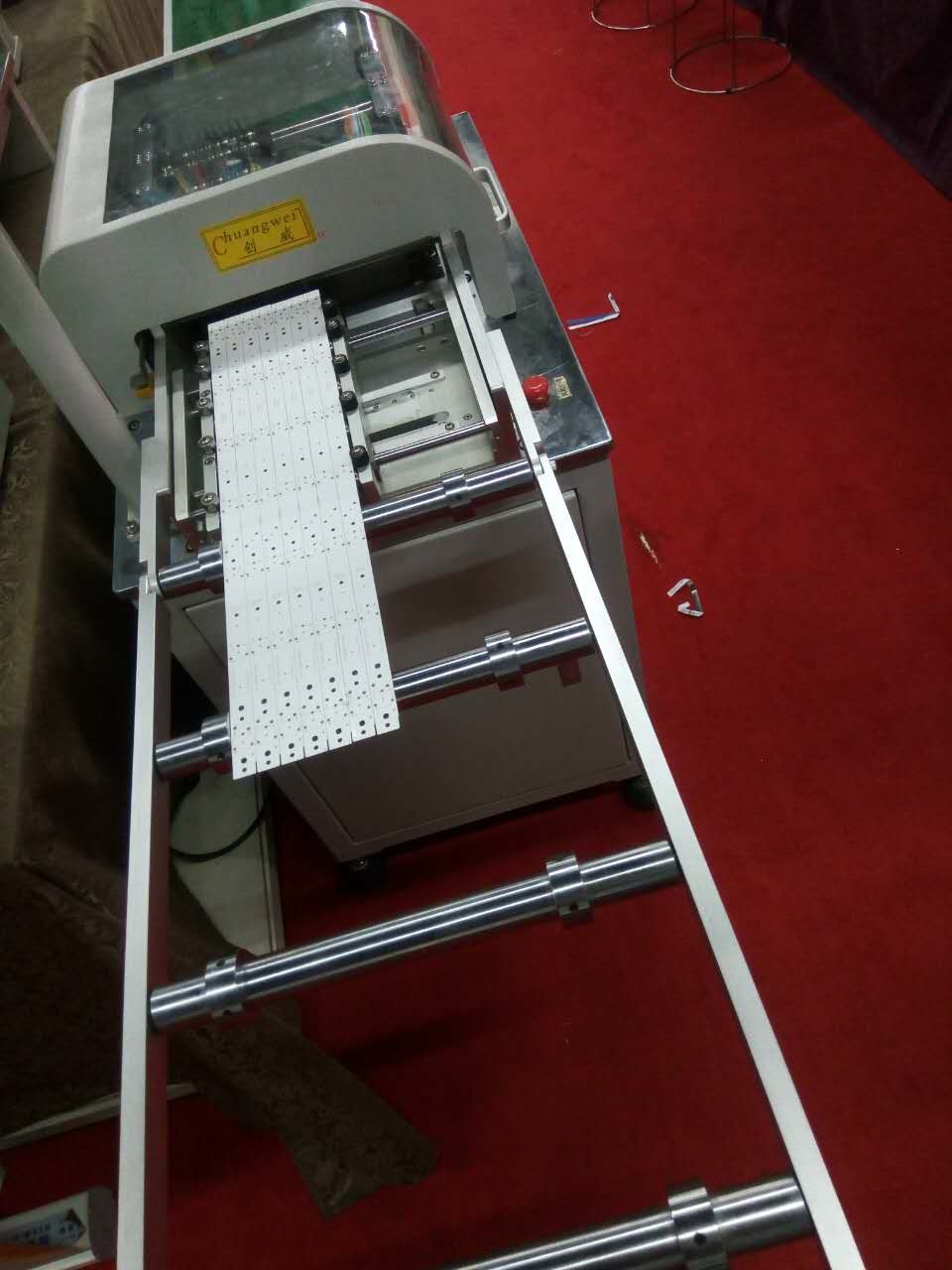

4), The PCBs are placed either by hand or they feed automatically by a loading station.
5), Easy operating
6), Could be adjusted according to PCB sizes and customers' requirements
7), Could be customized made as customers' request
Specification:
| Separation speed | 100-220mm/s |
| Panel length | Unlimited |
| Panel width | Max 310mm |
| Number of blades | Max 11 pairs |
| Width of PCBs | 7-245mm |
| PCB thickness | 0.6-3.5mm |
| Component height | 30mm |
| Solder side | max 10mm |
More information about this multiple blades PCB Separator machine,welcome to contact us:
