400mm/S PCB Depaneling Machine,Multiple Blades PCB V-cut Depanelizer Machine
LED Multi Group Multi-Blade PCB Cutting Machine

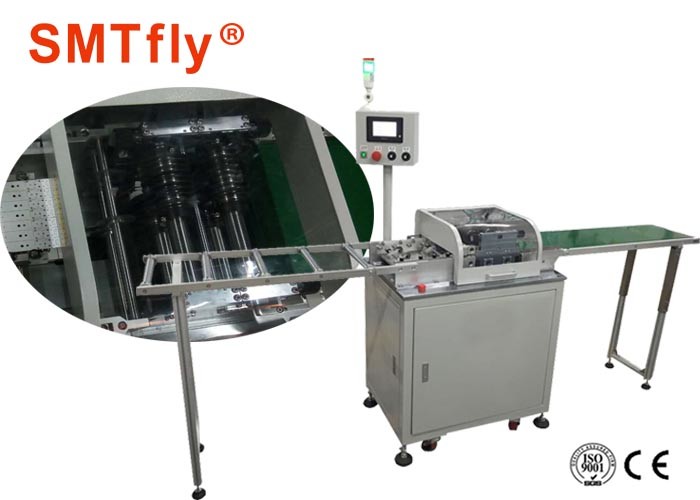

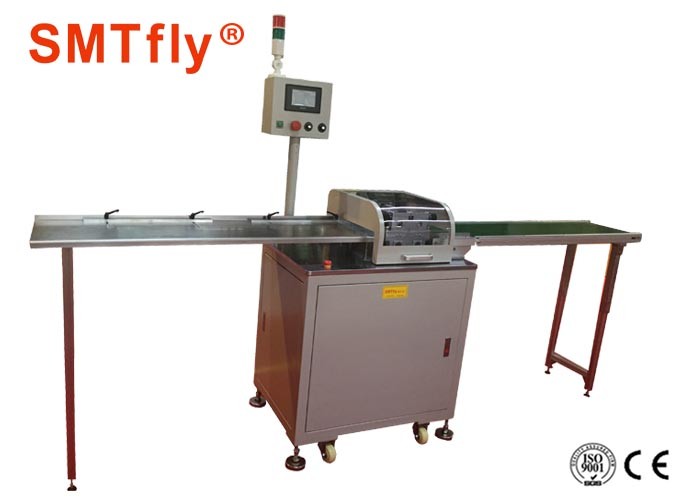

This is an LED multi group multi blade cutting machine SMTfly-3SN. It is automated equipment and it can butt joint your production line equipment.
It can cut all kinds of board. 10pcbs in one panel,19 pieces blade can cut without any problem.
Application :
LED panel, fiberboard, aluminum plate, aluminum substrate, copper substrate, fr4, glass fiberboard
| Origin | China |
| Brand name | Chuangwei |
| Certificate | CE |
| Model number | SMTfly-3SN |
| Packaging details | plywood case |
| delivery time | 15 days after the payment |
| payment term | T/T , Paypal, West union |
| Supply ability | 15 sets / month |
| warranty | free for one year |
Specification :
| Maximum board length | unlimited |
| Board thickness | 0.6-5.0mm |
| Plate feeding speed | 400mm / s |
| Blade material | SKH-9 |
| Working temperature | 10-35℃ |
| Storage temperature | -20-50℃ |
| Voltage | 220/110 V |
| Dimension | 2200 mm*630mm*1150mm |
Machine Features :
1. The machine adopts the computer screen control with a counting device, which you can use to preset
the processing production. And the space of cutting tool is visible on the screen.
2 . It can cut many boards with multiple sets of knives work at the same time.
3 . The knife flywheel is adjustable as a whole from 0 to 5mm
4 . The distance between knives is regulable as well, applying to pcb with width from 15mm to 20mm.
5 . The blade is made of imported SKH51 high speed steel material, which is durable and have a long
service life.
6 . It is convenient to adjust the cutting speed through rotary knob.
7 . No limits of the cutting length.
8 . Thickness range of pcb: 0.2-5.0mm
9 . With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
10 . The machine adopts multiple blade to separate boards with simple operation and high efficiency, fitted for batch production.
Chuangwei PCB cutting machine
From 2004 we started to develop,manufacture,sale,service for PCB cutting machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB cutting machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely.
