10W UV Laser PCB Cutter Machine / Depaneling Machine With 460 * 460mm Working Area UV Laser PCB Depaneling Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
PCB Laser Depanl Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
UV Laser PCB Depaneling Parameter
| Parameter | ||
|
Technical parameters |
Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) |
|
| Material | ≤1.2 mm | |
| Precision | ±20 μm | |
| Positioning | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 460*460 mm(could be customized made) | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine | Marble | |
UV Laser PCB Depaneling Features
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

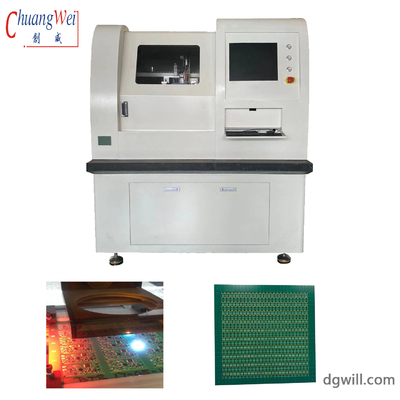

UV Laser PCB Depaneling Photo
