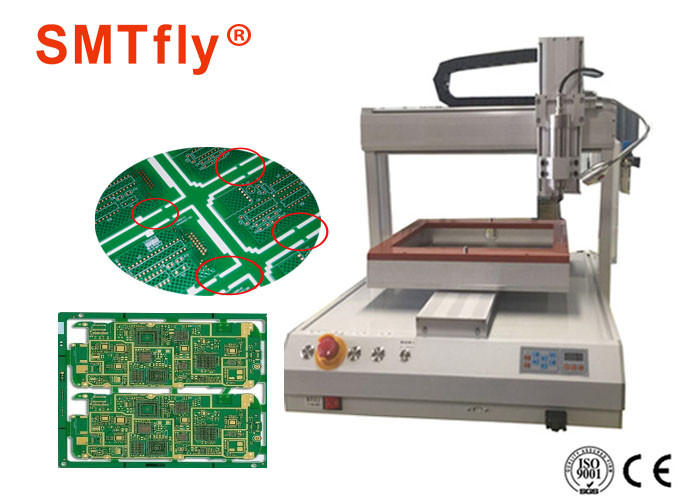

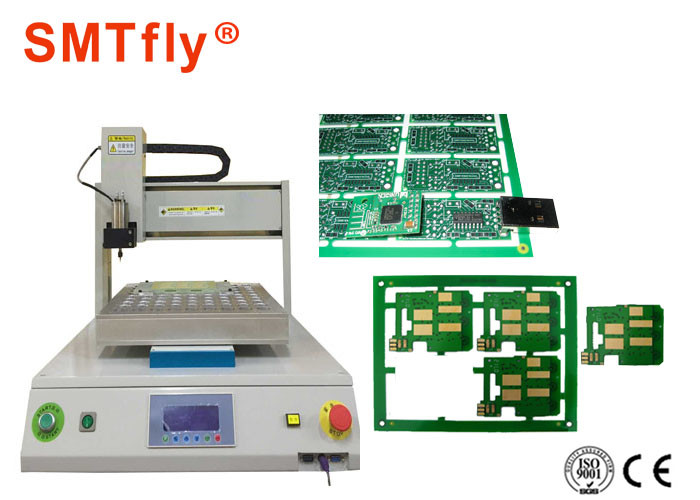

Name: White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle
Brand: ChuangWei
SKU: CWD-3A
Rating: 4.6 (126 reviews)

White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle

1 Set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Color: White

Program: Teaching Box

PCB Max Size: 650*450mm(Could Be Customized Made)

PCB Thickness: 0.6-3.5mm

Spindle: China

Name: PCB Router

High Light:

pcb depaneling equipment

laser pcb depaneling machine

Basic Infomation

Place of Origin: China

Brand Name: ChuangWei

Certification: CE

Model Number: CWD-3A

Payment & Shipping Terms

Packaging Details: plywood case

Delivery Time: 7 days

Supply Ability: 100 Sets/Month

Gallery

White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle

Product Description

White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle

Features:

Desktop Robots
Programming using a user-friendly teaching pendant with large. No need to learn complicated programming languages.
Vacuum system for Down Vac version sits under the board support fixture for removing debris and dust.
50,000 rpm spindle motor
Repeatable accuracy ±.01mm
2 models available up to a work area of 650mm x 450mm
Store up to 100 programs or 6000 work points on the memory card resident in the router.
ChuangWei will design and build your fixtures
For in-line applications, a floor type routing system is available

Specification:

Motor drive system	Servo / stepper motor
Spindle speed	50000r/s
Cutting performance	500mm/s
Drive system repeatability	±0.02mm
Cutting speed Resolution	±0.01mm
Configuration	X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality)
Repeatability	<0.1mm
PCB positioning fixture load/unload	Manual
PCB thickness	0.4-4mm
Working area	650*450mm
Spindle motor power	0.5KW
Spindle motor speed	50000r/m
Spindle motor cooling	Air-cooled
Machine dimension	980580615mm
Weight	135KG
Security settings	emergency stop switch

Production Flow:

White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle 0

Customer List:

White 0.5KW Manual Desktop PCB Router Depaneling Machine with Air Cooled Spindle 1

More information welcome to contact us:

Email: s5@smtfly.com

Wechat/Whatsapp: +86 136 8490 4990
