Applications :
Cutting the aluminum base boards , FR4 , fiber glasses , pcba , etc .
please leave a message to the email : s1@dgwill.com
Features :
1. Cutting with the double straight knives , it is especially suitable for the segmentation of precision SMD sheet and aluminum PCB .
2. With guillotine operation , it applies to PCB of all kinds of thickness , whose board schedule is less than 1-2mm , so there is no concerns about safety .
3 .The inner stress when cutting will be under 180ue , in case of a solder crack and the damage of precision components .
4. The minimum width between the edge of V-groove and the parts is 0.3mm , and the maximum height is 70mm .
5 .We provide free grinding of the blade after its abrasion .

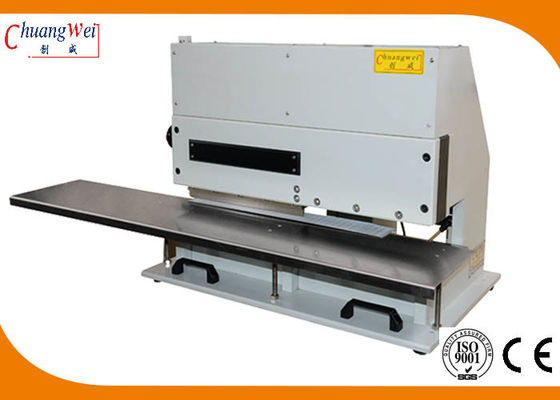

V-CUT PCB depaneling machine
1. Max. PCB depaneling length is unlimted
2. Depaneling PCB without bending and tension stress
3. Safety use, easy operation
4. Depaneling process without vibrations
V-CUT PCB depaneling machine specifications :

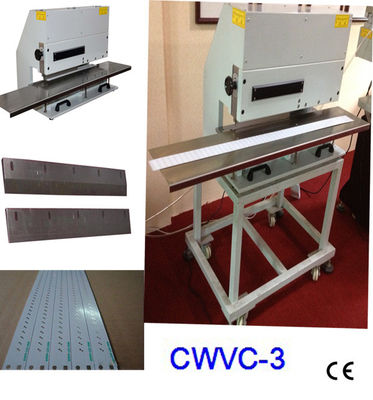

| Model | CWVC-3 |
| Max. PCB depaneling length | unlimited |
| PCB depaneling thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 780x500x620mm |
| PCB depaneling machine weight | 185Kg |
Chuangwei PCB depaneling machine
From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,
pneumatic-driven,mold and die punching,milling cutter router etc.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB depaneling machine base your actual requires.
PCB depaneling machine mainly applies to depanel various shape,length and thickness
Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.
For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
Any interest please contact us freely.
