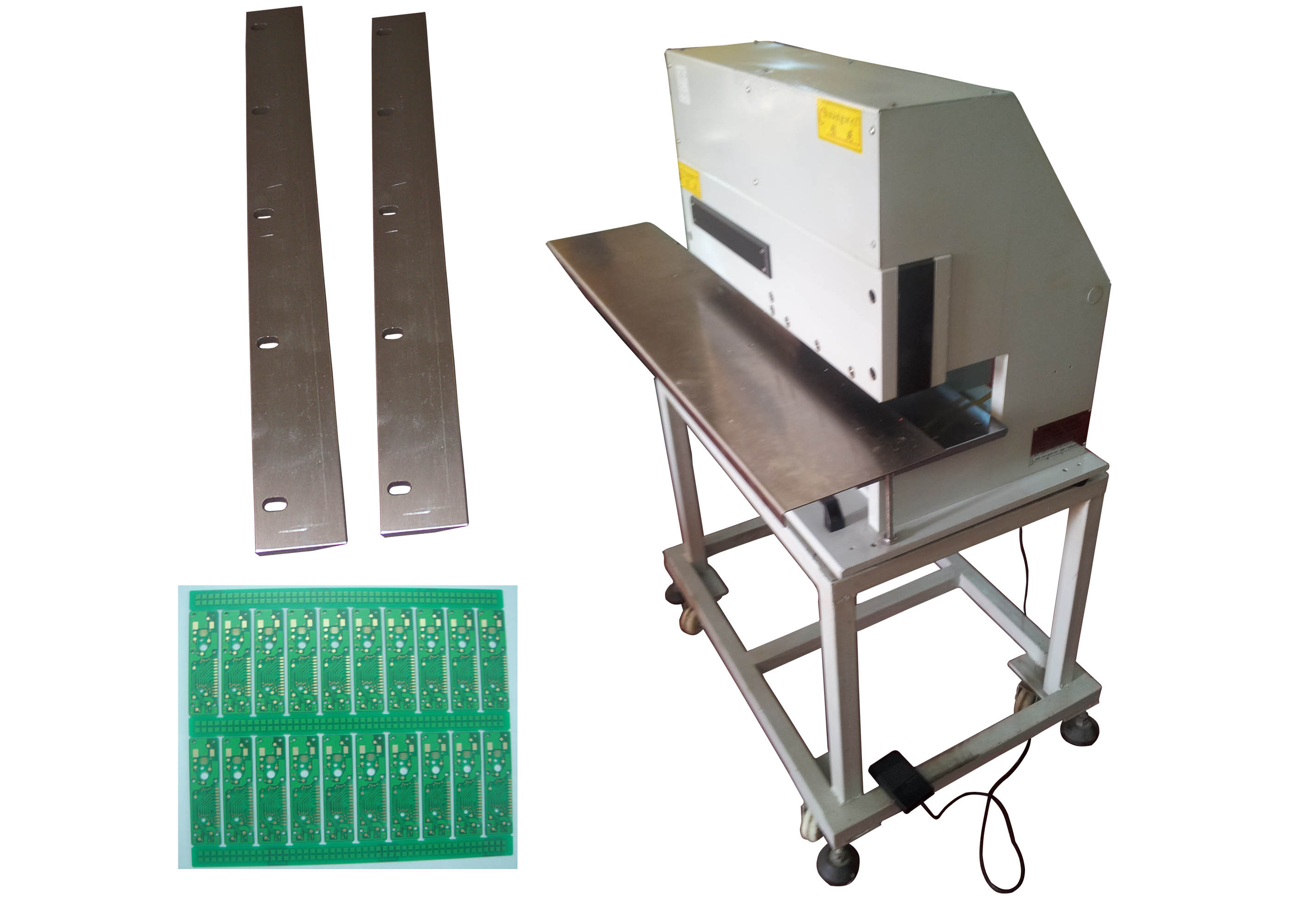

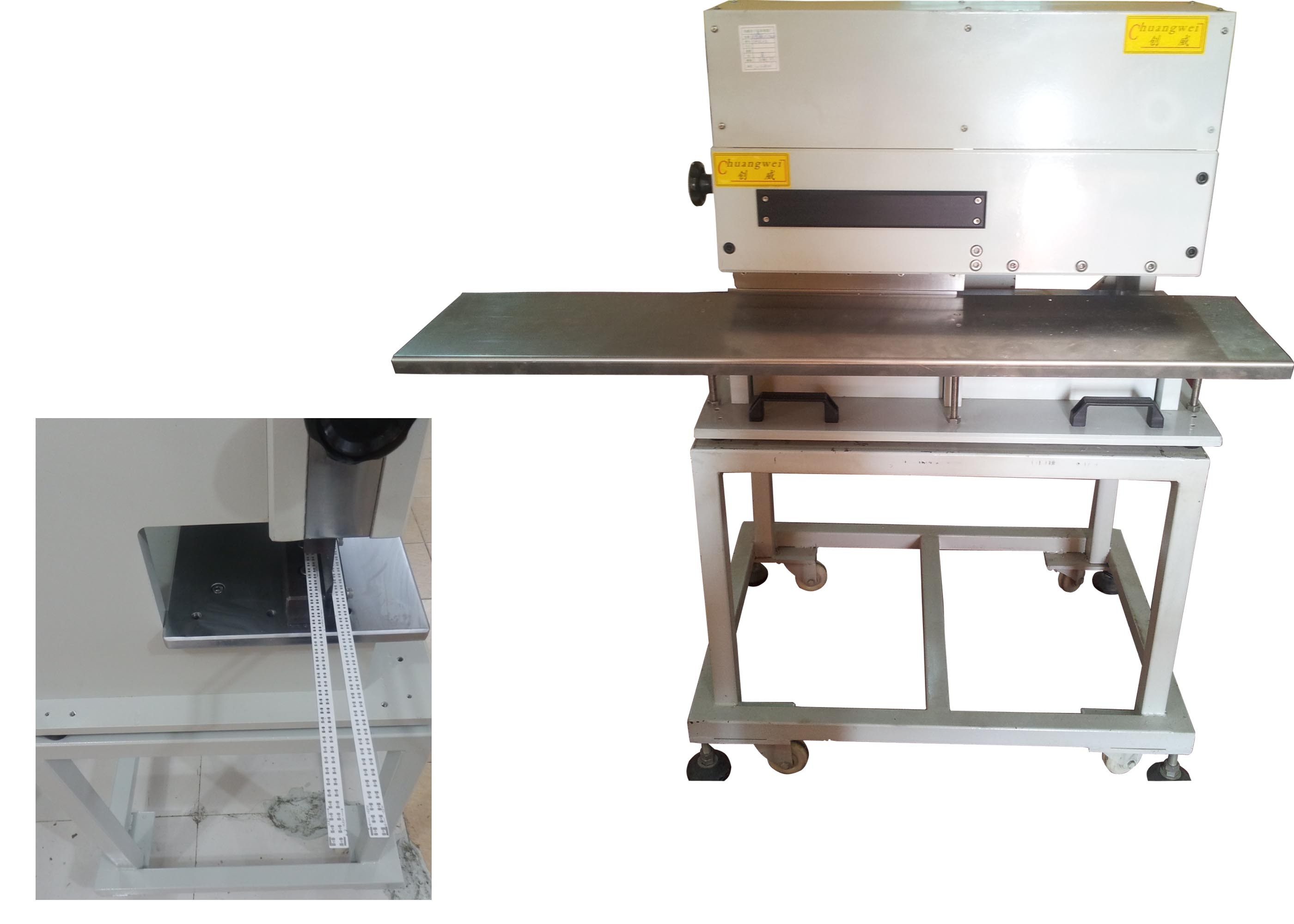

Professional Multi Blades V-Cut PCB Separator 330mm Vietnam Good Quality
*Easy maintenance and operation
*Thin PCB even to 0.3mm can be sheared safely
*Shearing process without vibrations due to pneumatic drive unit
| Model | YCWV |
| Max. PCB shearing length | 330mm(Can custom made) |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V 10W |
| Working air pressure | 0.5-0.7Mpa |
| Model Blade Motion | Upper Circular Blade Moving Automatically |
| PCB shearing machine size | 620*230*400mm |
| PCB shearing machine weight | 165kg |
| Upper circular blade | diameter 125mm,cutting point angle 26-28' |
| Voltage | 220v/110v,50/60hz,250w |
1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
Why us
|
1. Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2. Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3. Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4. One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
Cooperative clients
Q1:What is your Warranty for the product? How do you carry out it?
A1:We provide 1 Year Warranty for unit machine and 3 years warranty for main board.
More details pls contact me.
Q2: What’s the leading time? (How long do you need to prepare my goods?)
A2:1-3 working days for sample orders
3-20 working days for bulk order (based on different quantities).
Q3: How is your product quality?
A3:We provide supreme - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control, and Final Quality Control for every piece. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.
Q4: Can you put my brand name (logo) on the product?
A4:Yes! We can provide professional OEM services to make it your brand even for your trial sample order.
Q5: How much do I need to pay for your OEM service?
A5: It’s according to your logo's size and color.
Q6: What payment method do you accept?
A6: T/T(Bank transfer), Western Union, Paypal, etc.
Q7: Do you have any After-Sales service?
A7:Yes! If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.
Q8: Are you just trading company or factory?
A8: We are professional manufacturer for automation machine since 2004.
Welcome to visit our company and hope to learn more from your side!
