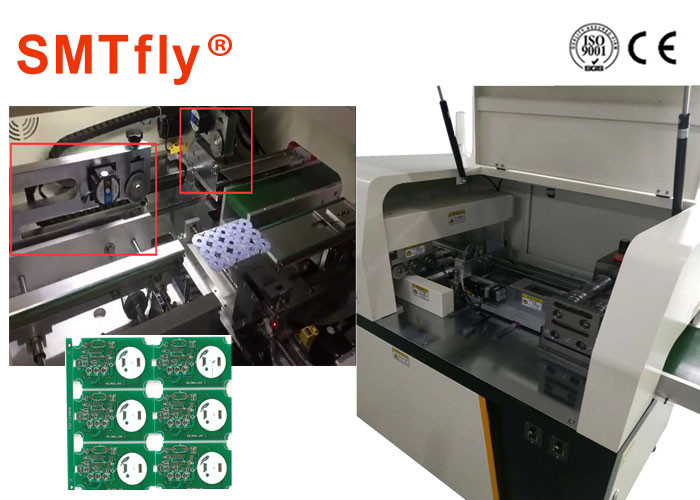

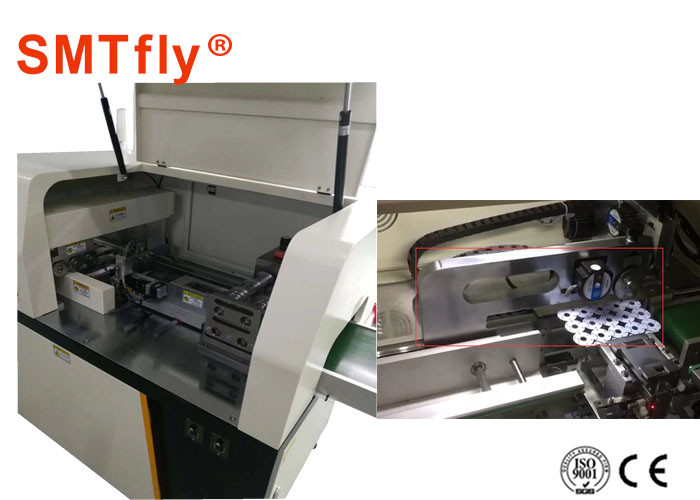

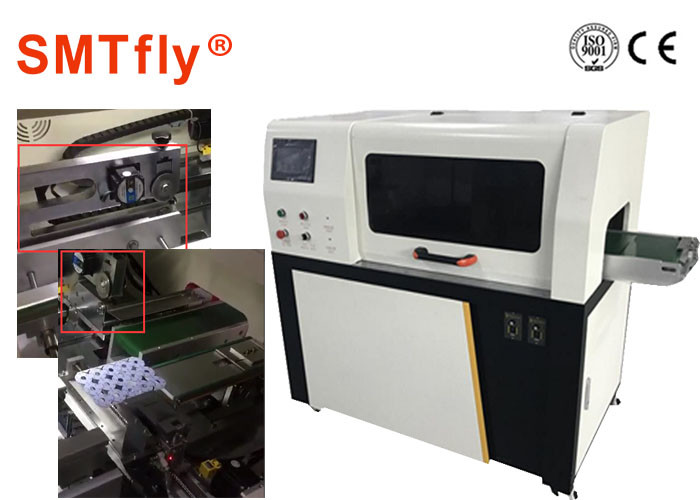

Automatic Inline V-Cut PCB Separator,PCB Depaneling Machine Description:
This is a double directions depaneling with horizontal and vertical boards
to realize inline depaneling for “#” shape panels at one time.
High automation, connect PCB loader and unloader, can be achieved without human, save labor.
Touch screen operation, enabling quick product changing, PLC data storage
capacity is 100 programs.
One direction of depaneling is also workable, could set horizontal and vertical depaneling by touch screen, more intelligent.
Dust cleaner is optional.
Automatic Inline V-Cut PCB Separator,PCB Depaneling Machine Features:
※Workable for “#”shape depaneling.
※Horizontal and vertical depaneling is optional.
※Blade set can be quickly changed.
※Could connect PCB loader and PCB unloader to realize fully automated production to save labor.
※Simple operation, workers can operate it after training.
※Unique new blade design, lifetime should be increased by 1.5-2 times.
※Safety: Sensor is used to ensure safe production.
Automatic Inline V-Cut PCB Separator,PCB Depaneling Machine Specification:
| Blade dimension | Circular blade:￠80 ￠60mm |
| PCB width | 300mm(could be customized) |
| Driven mode | Stepping / Servo motor(optional) |
| V-cut angel | >40° |
| Cutting speed | 300-500/s |
| Blade material | High speed steel |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 220/110V |
| Dimension | 1250(1560)mm×800mm×1295mm |
| Packaging weight | 300kgs |
