V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment

1 Set
MOQ
1USD/1set
Price
V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Width: 300mm(could Be Customized)
Driven Mode: Stepping / Servo Motor(optional)
V-cut Angel: >40°
Cutting Speed: 300-500/s
Blade Material: High Speed Steel
Air Pressure: 0.5-0.8Mpa
Voltage: 220/110V
Packaging Weight: 300kgs
High Light:

metal cutter machine

,

pcb shear cutter
Basic Infomation
Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-5
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 8-15 days after payment
Supply Ability: 30sets/month
Product Description
V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment​ Parameter:

Blade dimension

Circular blade:￠80 ￠60mm

Linear Blade: 356×43.5×6mm
PCB width 300mm(could be customized)
Driven mode Stepping / Servo motor(optional)
V-cut angel >40°
Cutting speed 300-500/s
Blade material High speed steel
Air pressure 0.5-0.8Mpa
Voltage 220/110V
Dimension 1250(1560)mm×800mm×1295mm
Packaging weight 300kgs

V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment Description:

This is a double directions depaneling with horizontal and vertical boards;
to realize inline depaneling for shape panels at one time;
High automation, connect PCB loader and unloader, can be achieved without human, save
labor.
Touch screen operation, enabling quick product changing, PLC data storage
capacity is 100 programs.
One direction of depaneling is also workable, could set horizontal and vertical depaneling by
touch screen, more intelligent.
Dust cleaner is optional.

V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment​ Features:

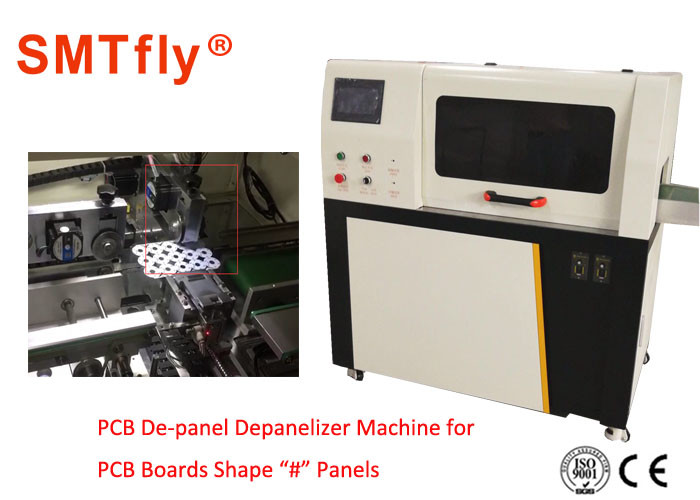

※ Workable for "#" shape depaneling.
※ Horizontal and vertical depaneling is optional.
※ Blade set can be quickly changed.
※ Could connect PCB loader and PCB unloader to realize fully automated production to
save labor.
※ Simple operation, workers can operate it after training.
※ Unique new blade design, lifetime should be increased by 1.5-2 times.
※ Safety: Sensor is used to ensure safe production.

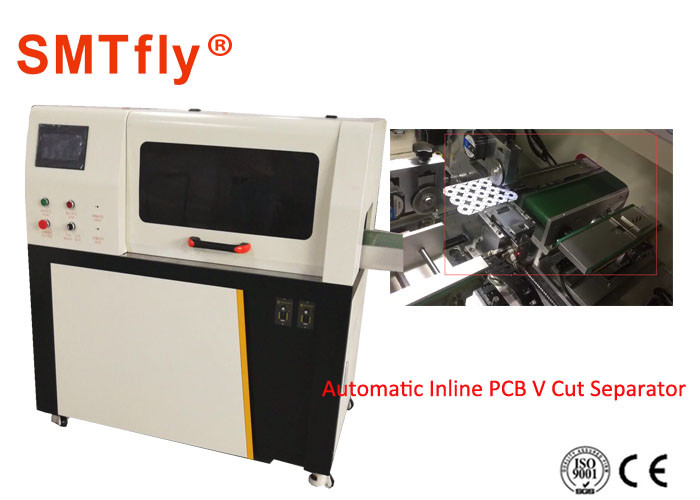

PCB Boards Cutter Machine Inline Printed Circuit Board PCB Depaneler Equipments Pic:

V-Cut PCB Separator Inline Printed Circuit Board PCB Depaneling Equipment 0
