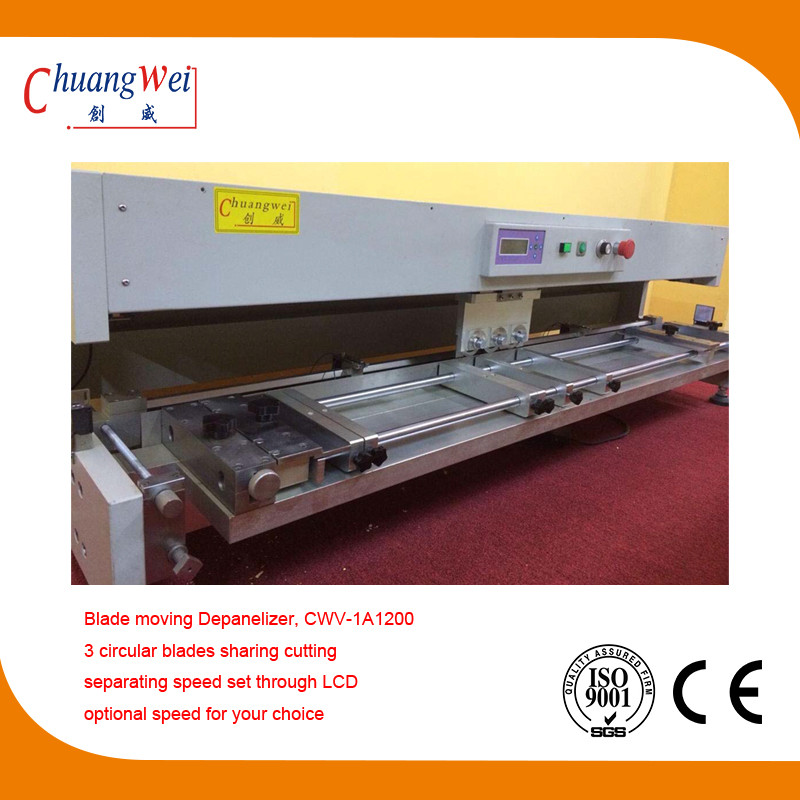

LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator

1 Set
MOQ
Negotiable
Price
LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: 0.6-3.5
Blades Quantity: 3 Circular Blades
Warranty: 1 YEAR
Blade Lifetime:: 7-8 Months
Power Supply(v):: 110/220
Type: Automatic PCB Cutter
High Light:

pcb depaneling machine

,

pcb shear cutter

Basic Infomation
Place of Origin: Dongguan China
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWV-1A1200
Payment & Shipping Terms
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Product Description



LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator



Feature:



● Separate pre-scored PCB assembly without stress on either PCB or component


● Blade moving trip is adjustable by LCD display


● Separating speed is adjusted by a rotary knob


● Handle Intermittent scoring or cut-outs


● Board with projected component can be cut precisely

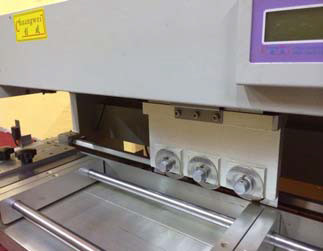

● 3 circular blades sharing cutting stress to protect PCBA

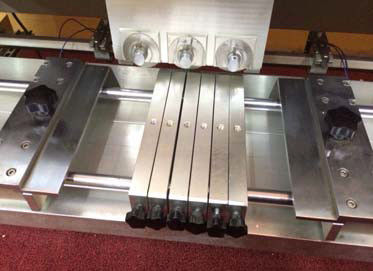

● Distance between 2 guide pieces is adjustable according to different PCBA length


● Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out



Specification



Size: 1660mm X 530mm X 510mm
Max PCB Length: 1200mm
Minimize Speed: 100/200/300/500mm/s
Minimize thickness: 0.6-3.5mm
Machine Weight: 350Kg





Our service



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine






CE approval



LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator 0





Our sales network



LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator 1





Our production flow



LCD Display Automatic Glass Cutting Machine 3 Circular Blades,PCB Separator 2
