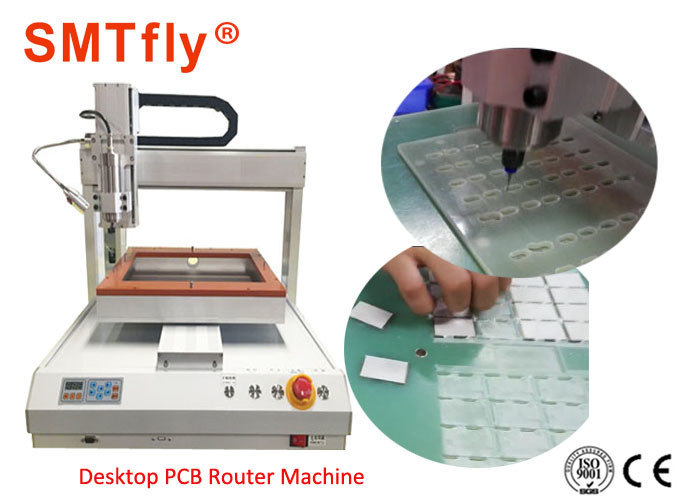

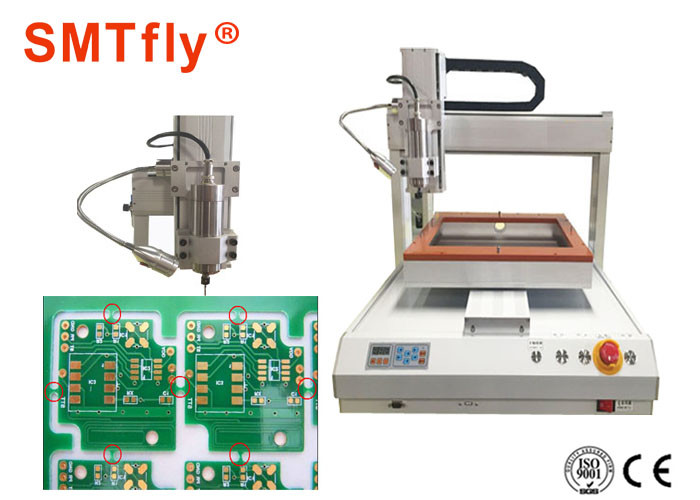

Tabletop PCB Router Machine 40000rpm 650mmX450mm,PCB Separator
ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up, and no risk of an operator making the wrong set-up.
Desktop PCB Router Features CW-3ADH01.pdf :
Desktop Robots
Programming using a user-friendly teaching pendant with large. No need to learn complicated programming languages.
Vacuum system for Down Vac version sits under the board support fixture for removing debris and dust.
50,000 rpm spindle motor
Repeatable accuracy ±.01mm
2 models available up to a work area of 650mm x 450mm
Store up to 100 programs or 6000 work points on the memory card resident in the router.
ChuangWei will design and build your fixtures
For in-line applications, a floor type routing system is available
Desktop PCB Router Specification:
|
Motor drive system |
Servo / stepper motor |
|
Spindle speed |
40000RPM |
|
Cutting performance |
500mm/s |
|
Drive system repeatability |
±0.02mm |
|
Cutting speed |
Max 100mm/S(depends on PCB material and cutting quality) |
|
Resolution |
±0.01mm |
|
PCB positioning |
fixture |
|
Load and unload way |
Manual |
|
PCB thickness |
0.6-3.5mm |
|
Working area(X, Y, Z) |
650x450x100mm(could be customized made) |
|
Motor power |
0.5KW |
|
Motor speed |
3000RPM |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
950*800*750mm |
|
Machine weight |
92KG |
|
Vacuun Cleaner |
Yes |
