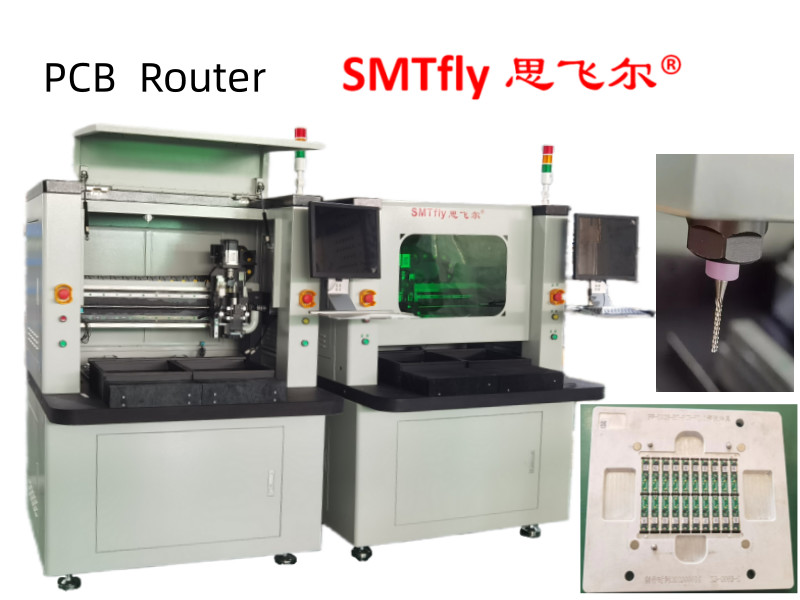

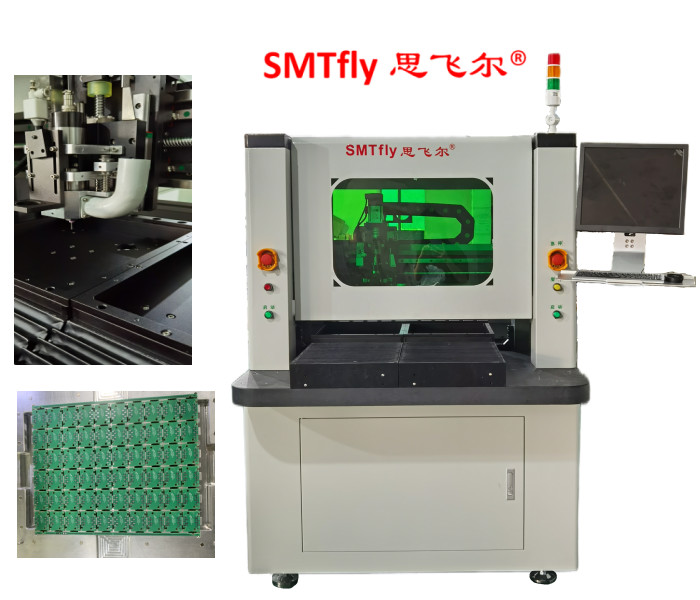

0.02mm Router Depanel PCB Circuit Board,PCB Depanelizer with CNC Application:
For milling joints connection PCB boards depaneling.
Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...
0.02mm Router Depanel PCB Circuit Board,PCB Depanelizer with CNC Features:
Specification:
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
CE Certification:
