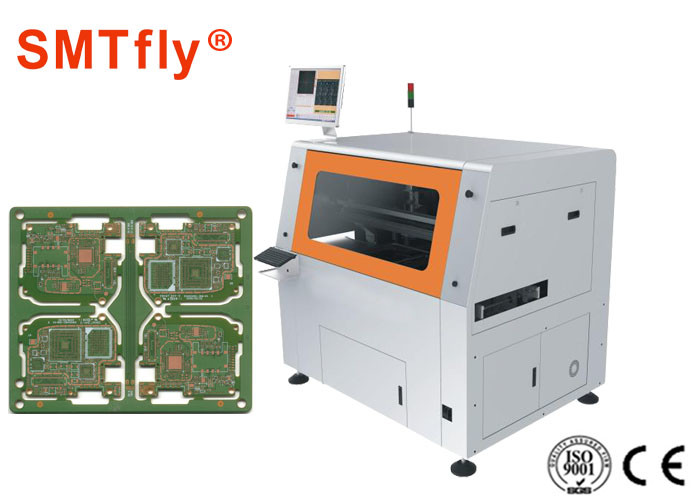

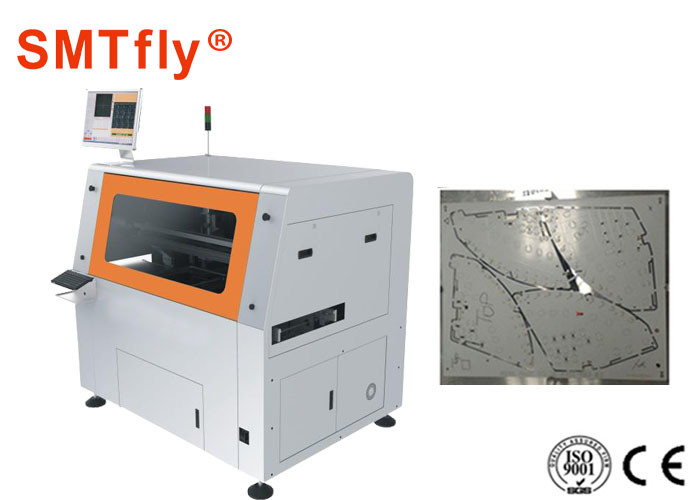

Inline PCB Router Depaneling Machine,PCB Separator,PCB Routing Cutter
ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up, and no risk of an operator making the wrong set-up.
● Passed CE international certification, ergonomic operation;
● Platform servo drive entry, faster speed and higher precision;
● Visual intelligent positioning, automatic correction of deviation;
● Software is easy to learn, simple training can be skilled;
● Broken knife detection, real-time monitoring of milling cutter abnormalities;
● Safe door sensor, open automatic alarm stop;
● Germany imported Kavo spindle, high speed, low noise;
● The machine runs at high speed, stable and does not shake.
|
Motor drive system |
Servo / stepper motor |
|
Spindle speed |
60000RPM |
|
Spindle brand |
Germany KAVO |
|
Drive system repeatability |
±0.02mm |
|
Max cutting speed |
100 mm/s |
|
Resolution |
±0.01mm |
|
PCB positioning |
fixture |
|
Power |
2.6KW 220V |
|
PCB thickness |
0.4mm-4mm |
|
Vacuum cleaner |
2.2KW/380V |
|
Motor power |
0.5KW |
|
Motor speed |
3000RPM |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
1350*1300*1450mm |
|
Machine weight |
850Kgs |
|
Vacuun Cleaner |
Yes |
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 1-2 days after getting your payment
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them..
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
