AC 220V 50Hz 4Mpa PCB Router Depaneling Machine,PCB Depaneler Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Desktop PCB Router
Color: Customized
Place Of Origin: Guangdong, China
Spindle Speed: 60000R/M
Fixture: Customized
Work Area: 330*330 Mm
Machine Size: 1350*1250*1450 Mm
Operation System: Windows 7
High Light:

4Mpa PCB Router Machine

,

AC 220V 50Hz PCB Router Machine

,

40000RPM pcb router

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: ChuangWei
Certification: CE / FCC / UL
Model Number: SMTfly-ONR
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 6 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 Sets/Month
Product Description

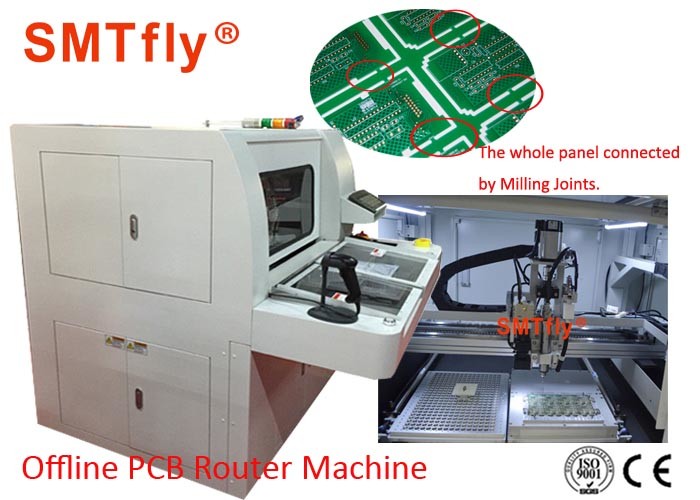

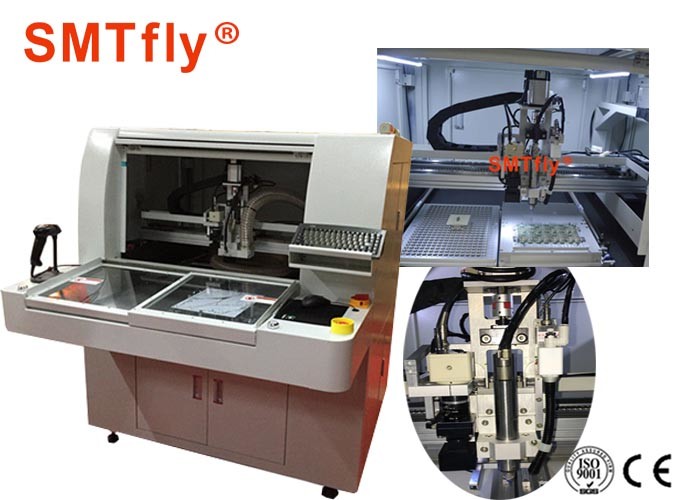

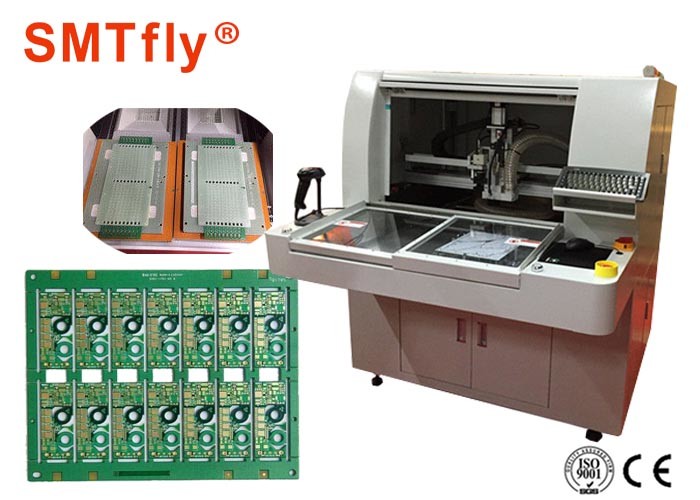

AC 220V 50Hz 4Mpa PCB Router Depaneling Machine,PCB Depaneler Machine



Desktop PCB Router Features

1. Broken knife detection, real-time monitoring of milling cutter abnormalities;


2. Safe door sensor, open automatic alarm stop;


3. Germany imported Kavo spindle, high speed, low noise;


4. The machine runs at high speed, stable and does not shake;



5. Repeatable accuracy ±.01mm;



6. 2 models available up to a work area of 650mm x 450mm;



7. Store up to 100 programs or 6000 work points on the memory card resident in the router;



8. ChuangWei will design and build your fixtures;



9. For in-line applications, a floor type routing system is available;



Desktop PCB Router Specification:

Motor drive system

Servo / stepper motor

Spindle speed

40000RPM

Cutting size

390*660 390*330 mm

Drive system repeatability

±0.02mm

Max cutting speed

100 mm/s

Resolution

±0.01mm

PCB positioning

fixture

Power

2.6KW 220V

PCB thickness

0.4mm-4mm

Vacuum cleaner

2.2KW/380V

Motor power

0.5KW

Motor speed

3000RPM

Spindle motor cooling

Air-cooled

Machine dimension

950*800*750mm

Machine weight

92KG

Vacuun Cleaner

Yes



ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up, and no risk of an operator making the wrong set-up.






Our Company


ChuangWei Electronic Equipment Manufactory

For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
