3mm Dual Table PCB Router Machine with Upper Lower Vacuum Cleaner
Specification:
| Dimensions(W*D*H): | 1220mm*1450mm*1420mm |
| Weight: | 550KG |
| Height offset: | 60~110mm |
| Motor type: | JiaBao series |
| Positioning repeatability: | 0.001mm |
| Axis working area(max): | 680mm*360mm*50mm |
| PCB fixation: | standard,specialization |
| PCB loading/unloading: | manual |
| PCB size (max): | 322mm*322mm |
| PCB thick (max): | 5mm |
| Rigidity fixturing: | standard |
| Fixturing fixation: | machinery |
| Power: | 400W |
| Spindle: | 50000rpm/min |
| Protect: | self/wind cooling |
| Change cutter: | Specialization |
Features:

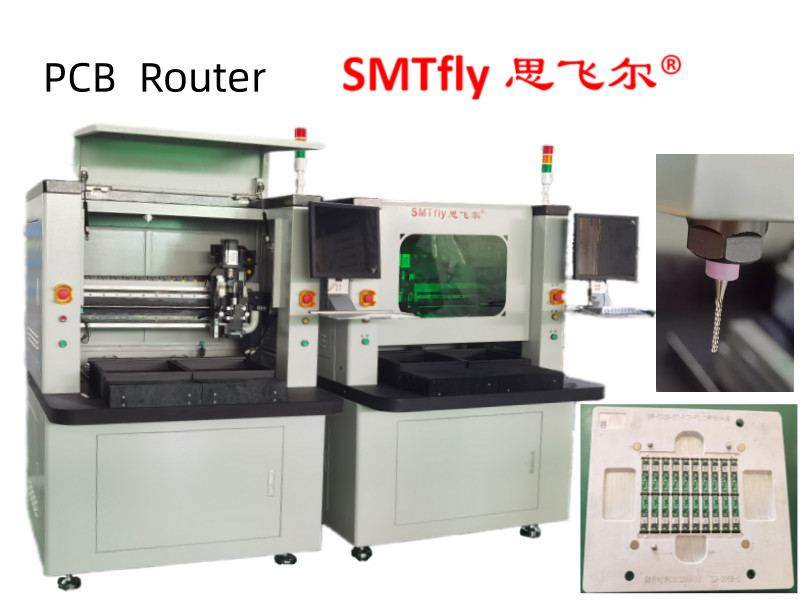

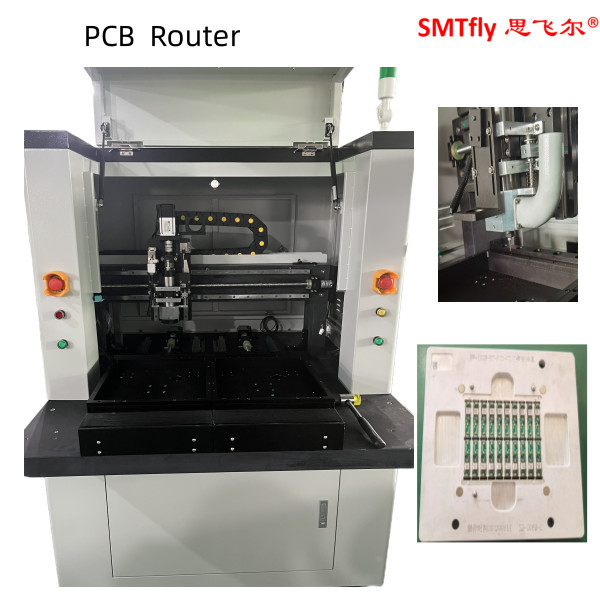

CW-F02 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.
The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.
The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.
Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.
The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.
Vacuum Cleaner:
Specification:
| Model | CW-F01-SV |
| Dimension | 650*400*1300mm |
| Material | S/S 41 carbon steel |
| Control way | Built-in |
| Filter | 100% Polyester needle non - woven bag |
| Falling mode | Manual joystick + Dust center of gravity falling automatically |
| Motor | 2HP, 1.5KW, 380V |
| Static pressure | 2000mmAQ |
| Vacuum suction diameter | 50mm |
| Filter bag arrangement | 8 PCS, 120(D)mm*500(L)mm |
| Surface treatment | Single-sided calendering |
| Cleaning way | Drawer type dust box |
| Positioning wheel | 4 pcs, ￠65*￠12mm |
| Handwheel | 2 pcs |
| Weight | 150kgs |
| Remark | Sealed soft rubber access door and clear door |
