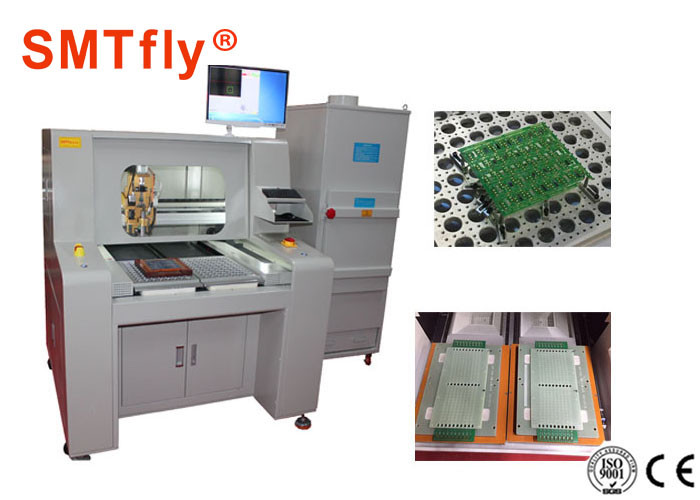

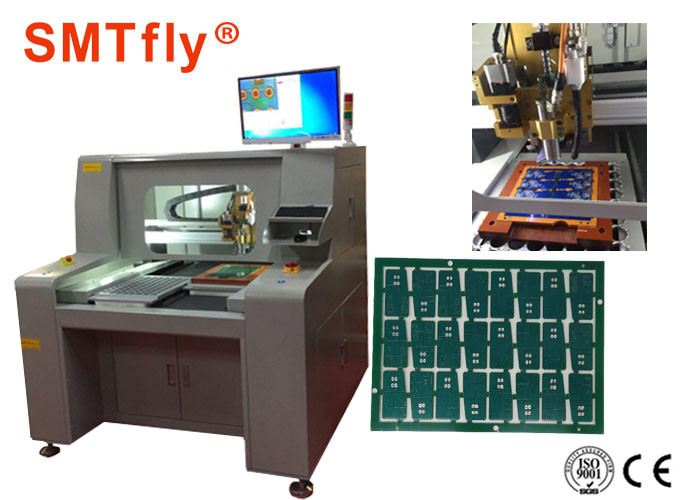

High Efficient PCB Router Machine PCB Singulation Dual workstation Quick and Efficient PCB Singulation
When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.
Easy to Use
Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.
Specification
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Application:
For milling joints connection PCB boards depaneling.
Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...
