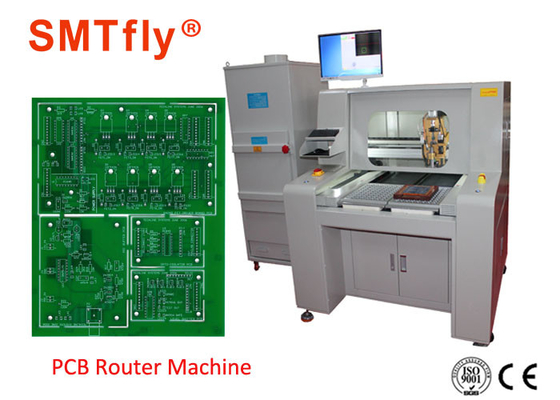

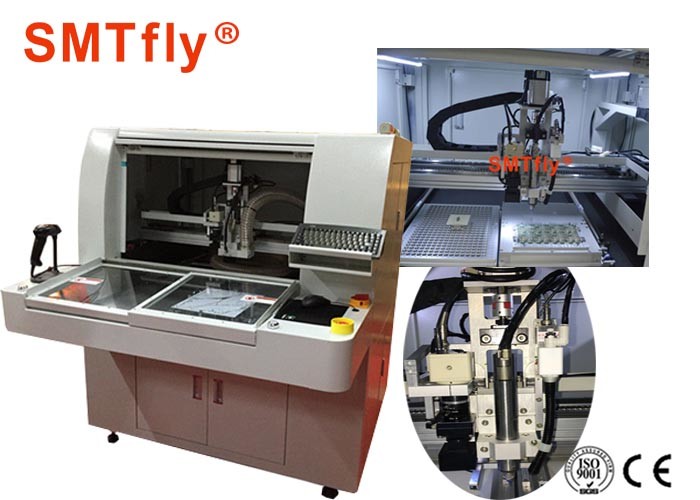

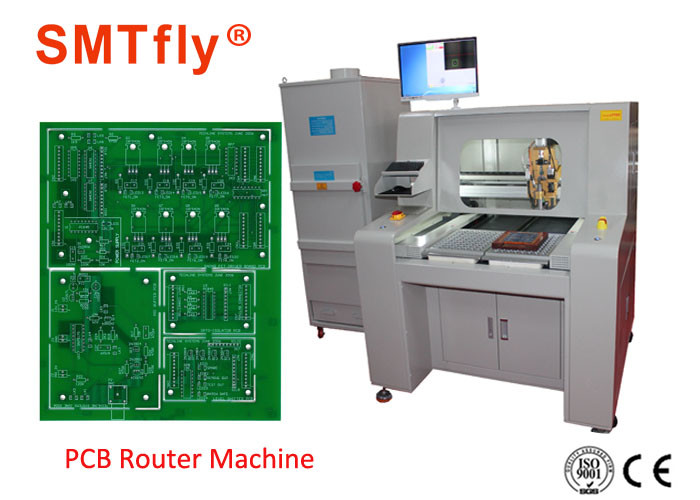

Stand Alone FR4 / MCPCB / PCB Router Machine with Windows 7 System
It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.
I. Hardware
SPINDLE Morning Star spindle and inverter
CCD:Sony 520 line industrial cameras
LENS:Computar EX2C
Screw:TBI Precision ground ball screw imports
Guide:HIWIN widening Imported linear guide rail
MOTOR:JiaBao LCF Series
I/O CONTRONL CARD: HFC PCI-9074
DRIVER CONTRONL CARD: HFC PCI-9074
I/O CARD:PCI-9074-64pcs/-38pcs
Static cleanup:STATIC-ST401A Series
Computer:RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface: AOC LCD17",Logitech mouse
2. software
Control system:Windows 7 Professional
Operation GUI:English Windows 7
Program edit:Inline
Vision system:CCD AOTU offset
Control system : F 1.0.2 version
3.Performance Parameters
Dimensions(W*D*H) : 1220mm*1450mm*1420mm
Weight : 550KG
Height offset : 60~110mm
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 650mm*500mm
PCB fixation : standard,specialization
PCB loading/unloading : manual
4.Why Choose Us?
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 1 day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for quality
◇ 18 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
If you're in neeed of this model,welcome to contact us:
Email: sales@dgwill.com
Wechat/Whatsapp(Bunny): +86 136 8490 4990
