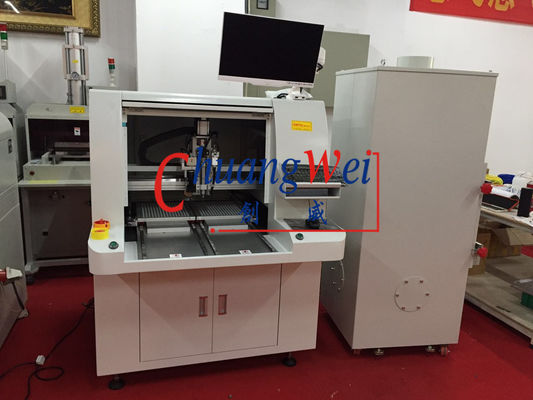

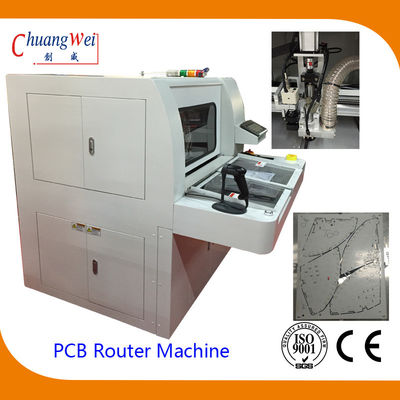

PCB Separator Routing Solutions with KAVO Spindle at 60000RPM Specifications:
| Model | CW-F01-S |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Value for a Low Cost
The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.
PCB Router Showroom
Warranty and Guarantee:
· 12 months Warranty. 30 days money back. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement
or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund
after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after
receiving the defective item. But you have to pay the extra shipping fee.
Other Policies:
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not
satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly
re-sent your email and we will reply to you as soon as possible.
· Serious Buyer Only! Please place bid only if you agree with all the terms.
