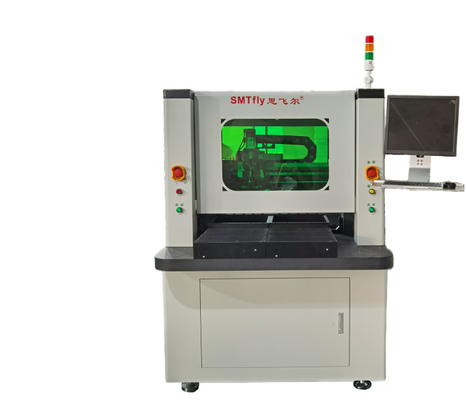

Dual Vacuum Blow 2 Station 0.5 - 3.0mm PCB Router Machine with Manual Bit Change

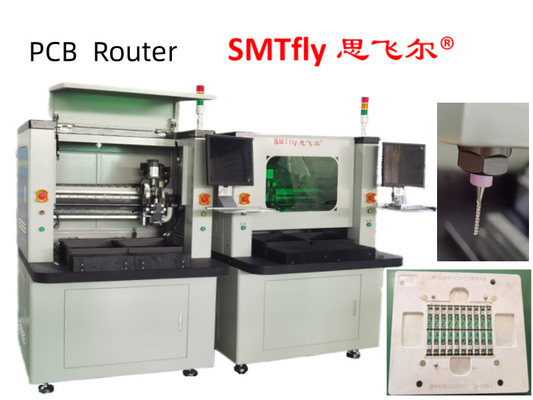

Dual Vacuum Blow PCB Separator Router Equipment Made by Chuangwei


Specification

• Setting Fixture : 2 stations
• Working Area : X: 320mm, Y: 320mm, Z: 60mm
• Cutting Area : Max: X: 320mm, Y: 320mm　Min: X: 100mm, Y: 100mm Z: 15mm
• PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
• PCB Thickness : 0.5 to 3.0 mm
• Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
• Precision of Cutting : ± 0.10 mm
• Positioning Accuracy : ± 0.01mm
• Positioning Repeatability : ± 0.02mm
• Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
• Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
• Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
• Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
• Bit Change : Manual
• Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
• Motor of Axis : 7 Axes (150W AC Servo motors)
• Bit Shift Count : Max. 2
• Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
• Safety Area Sensor : n/a
• Bit Break Detection : Standard
• Program Storage : HDD
• Program Backup : USB
• Operating System : Windows 7
• Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
• Conveyor Adjustment : Manual adjustment Max: Y: 350mm　Min: Y: 100mm
• Conveyor load capacity : Max: 2 Kg
• PCB Loading/Unloading : Automatic
• Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
• Air : 0.5Mpa
• Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
• Weight : approx. 500 Kg

Features :

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control

6. Easy teaching with image processing


Why choose us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
