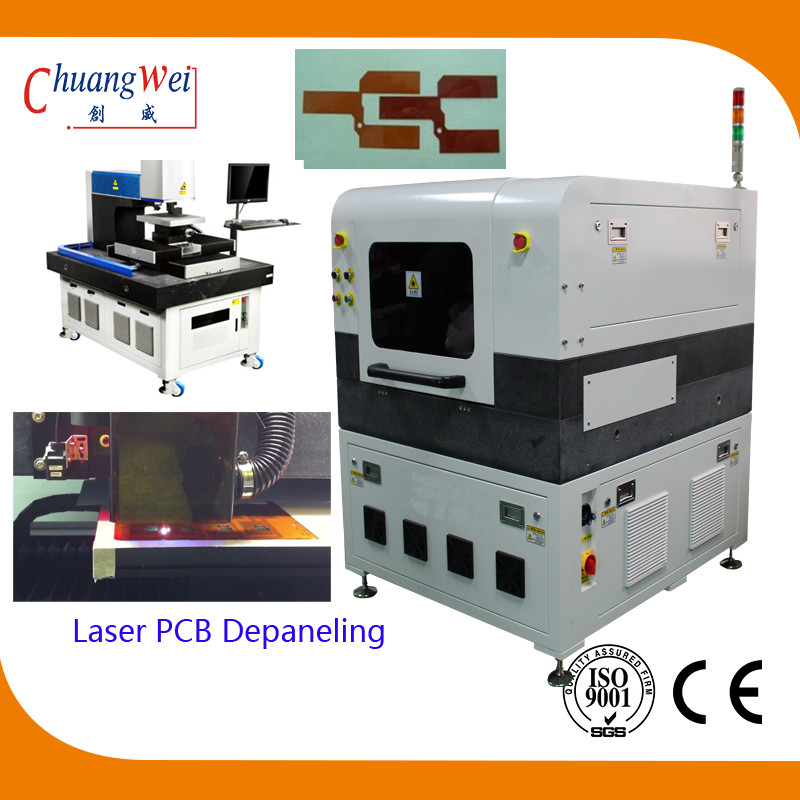

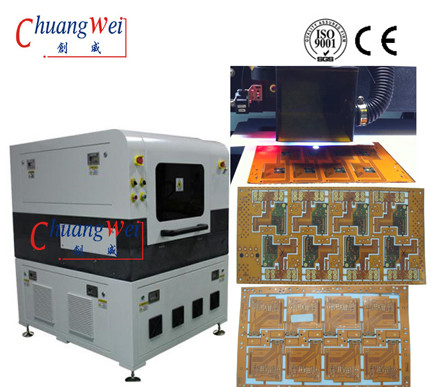

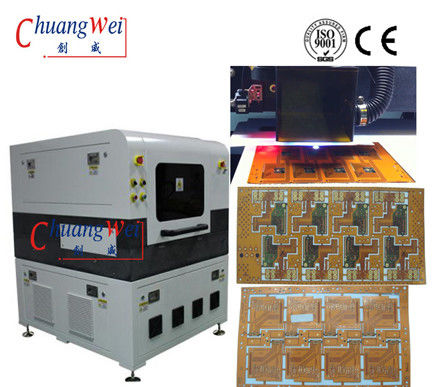

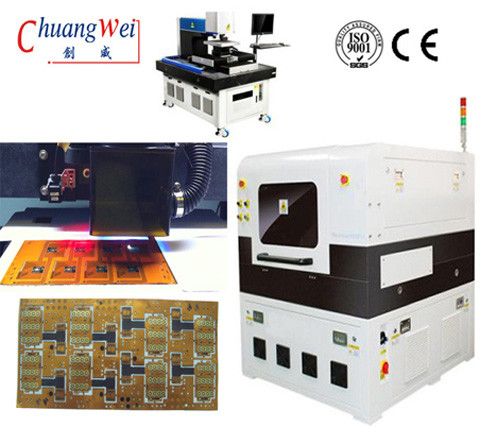

Cost-effective Laser PCB Depaneler Machine for High Accuracy Depaneling Cutting Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Specification
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/17W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmX460mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
Advantages:
