FPC Laser Depaneling Machine with 0.02mm Cutting Precision and 10W US Laser
FPC Laser Depaneling Machine Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings;
Cost-effective, fast cutting speed, stable performance.
FPC Laser Depaneling Machine Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
FPC Laser Depaneling Machine Parameter
| Parameter | ||
Technical parameters | Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) | |
| Material | ≤1.2 mm | |
| Precision | ±20 μm | |
| Positioning | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 460*460 mm(could be customized made) | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine | Marble | |
FPC Laser Depaneling Machine Features
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

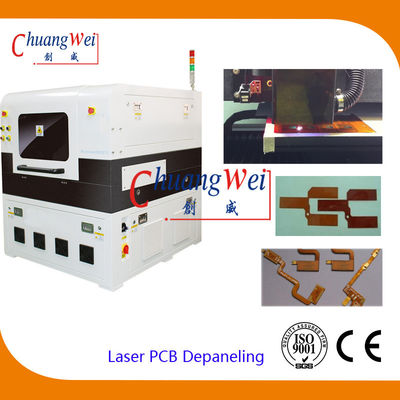

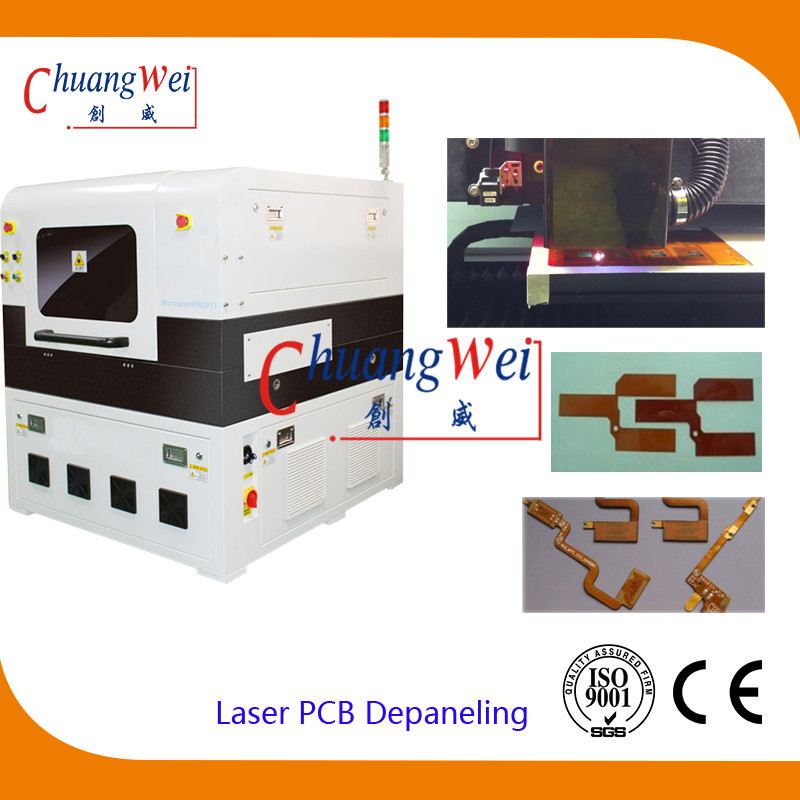

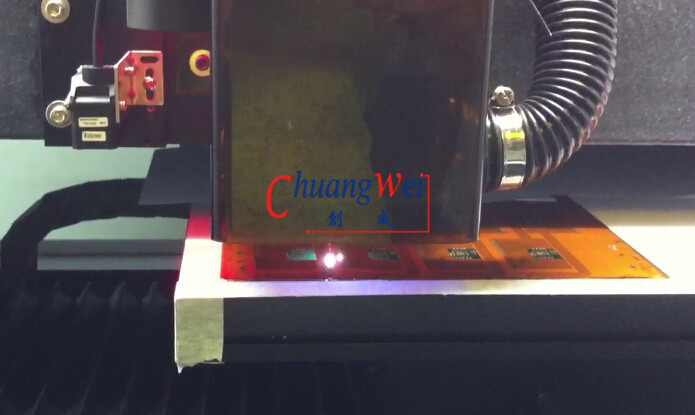

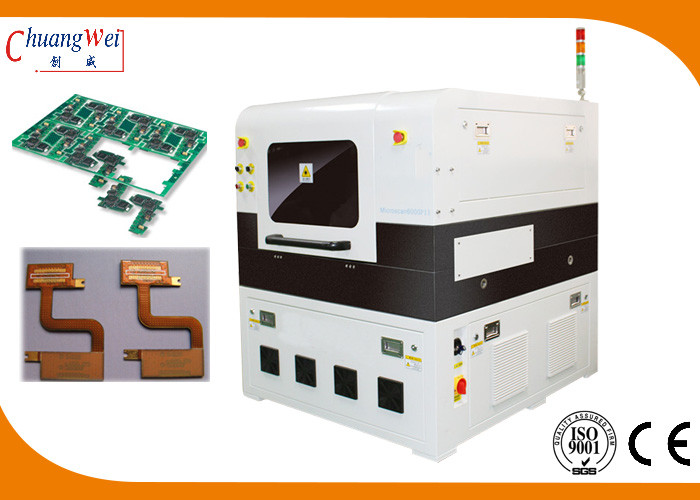

FPC Laser Depaneling Machine Detailed Photo
FPC Laser Depaneling Machine Workshop
