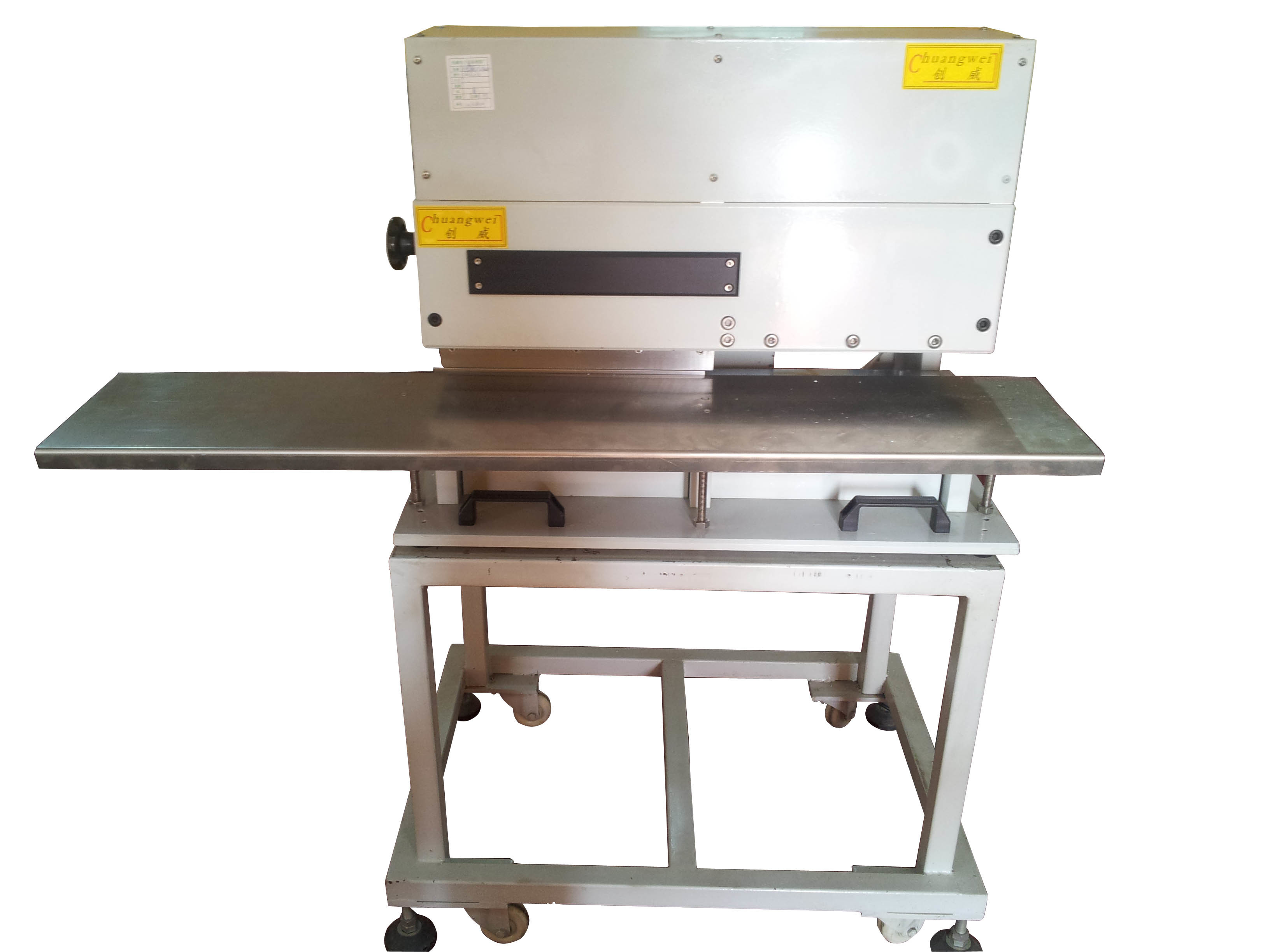

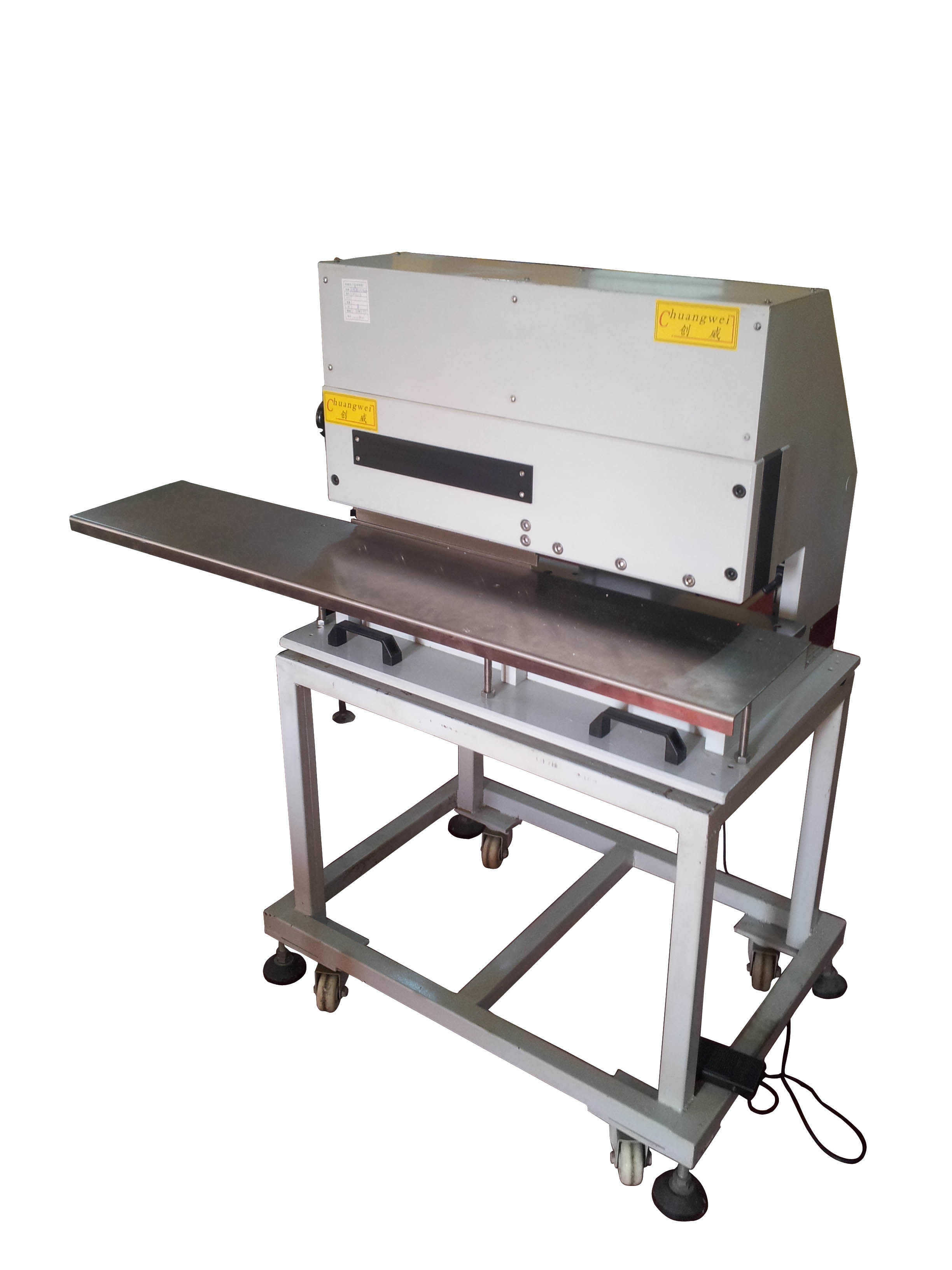

V Cut PCB Depaneling For Pneumatic PCB Separator MCPCB Depanelizer
Features:
1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .
2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust
| Model | CWVC - 3 |
| Max. PCB separating length | unlimited |
| PCB separating thickness | 0.3-3.5mm |
| PCB separating speed | by operator skilled level |
| Voltage | 110/220V |
| PCB separator machine size | 780x500x620mm |
| PCB separator machine weight | 185Kg |
Video:
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
Company information
From 1999 we started to development,manufacture , sale,service for PCB separator machine, until now , we have produced different kind PCB separator machine type for manual , motor-driven , pneumatic-driven,mold punching , milling cutter router .
You can depend on your company's condition and choose the most suitable one .
Also We can manufacture PCB separator machine base your actual requires . (any shape , length , thickness of PCB,aluminium PCB , LED strip , solar energy PCB , FR4 and soft material FPC etc . )
Any interest please contact us freely.
why choose us
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 1 day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for quality
◇ 12 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
