Multi Slitter Cutting LED Strip FR4 PCB Separator Circlure Blades
Product Description

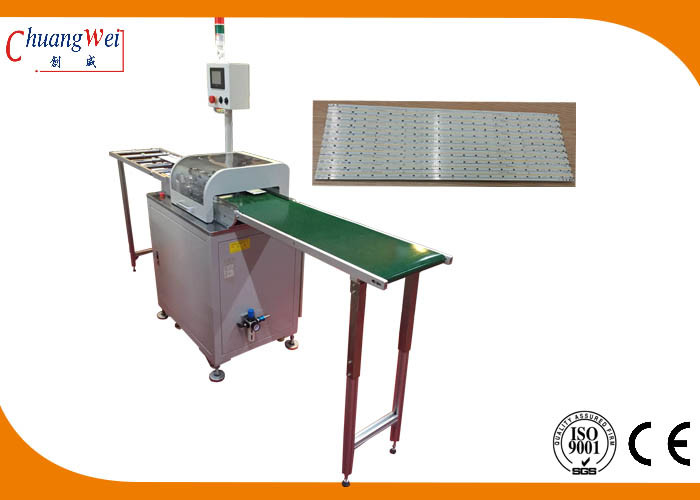

PCB Depaneling Multi Slitter Cutting LED Strip MCPCB PCB Separator
PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Specification :
Model
CWVC-5
Max Cutting Length
No limit
Blade Material
High speed steel
Cutting Speed
400mm/s
Cutting Thickness
1.0-3.5mm
Voltage
220V or 110V
PCB Depaneling machine with 9 pairs of blades,CWVC-5 Features:
1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
2. It can cut 8 pcs boards with multiple sets of knives work at the same time.

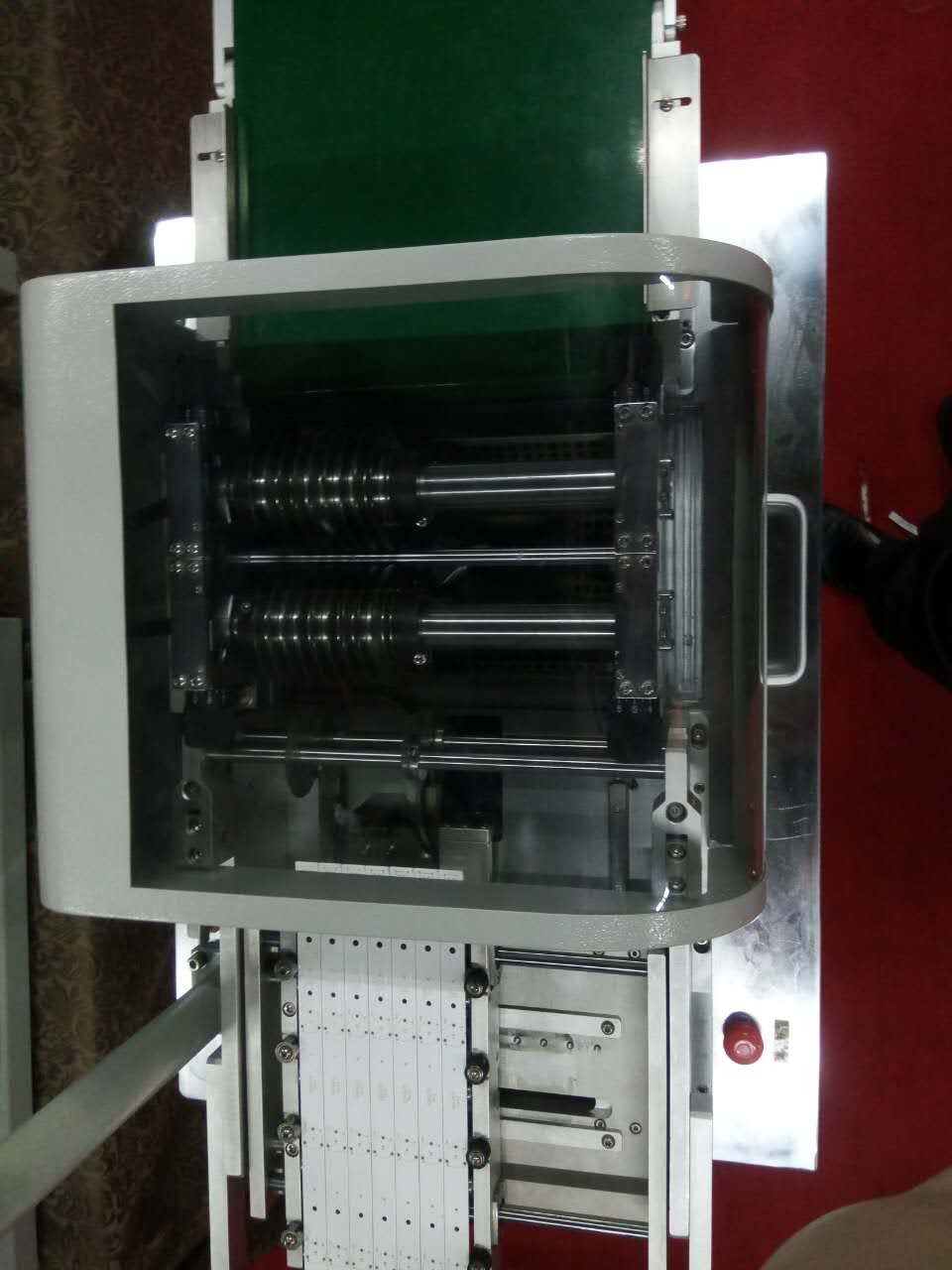

3. The knife flywheel is adjustable and distance between knives is regulable.
4. The blade is made of high speed steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
