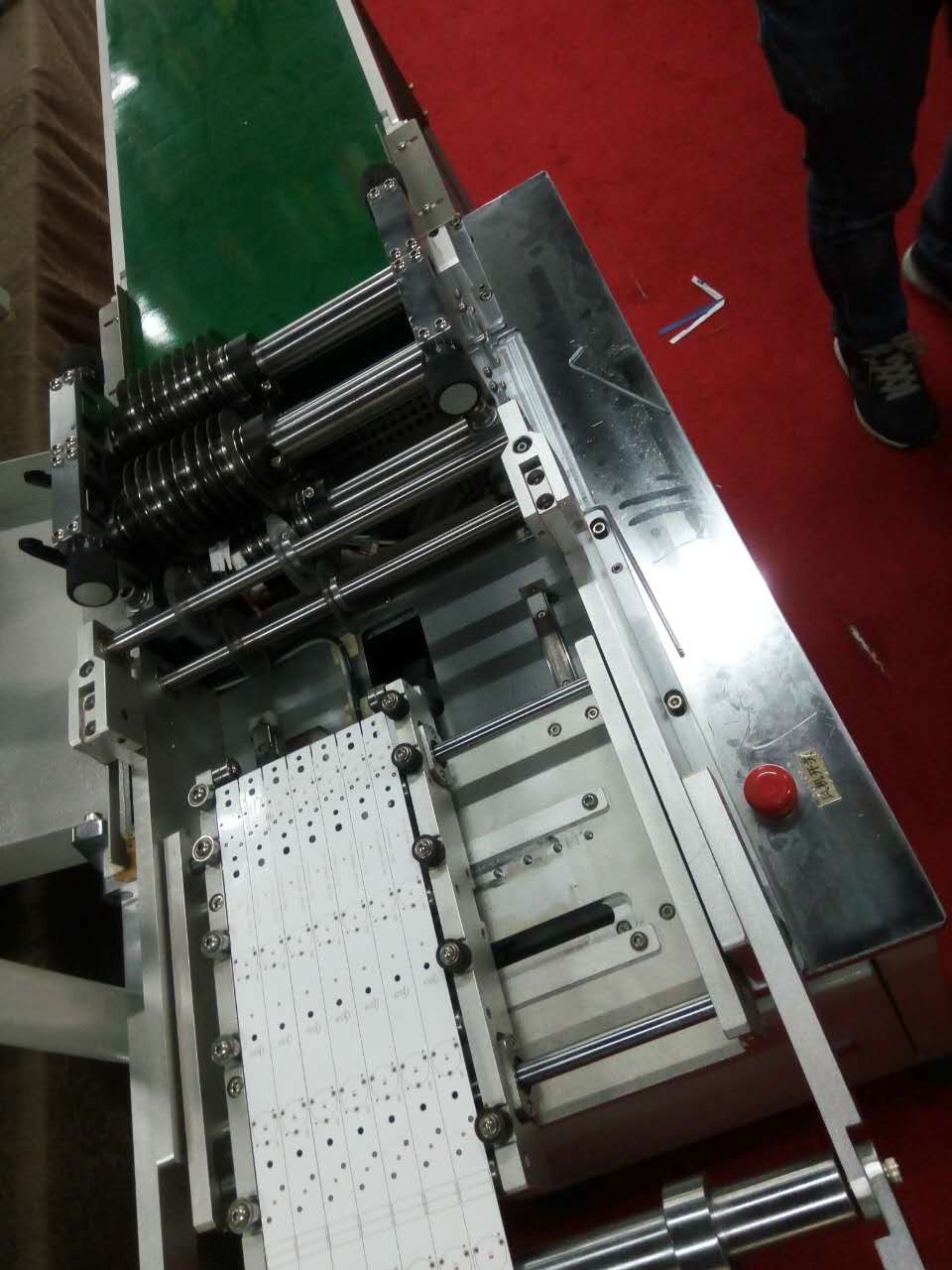

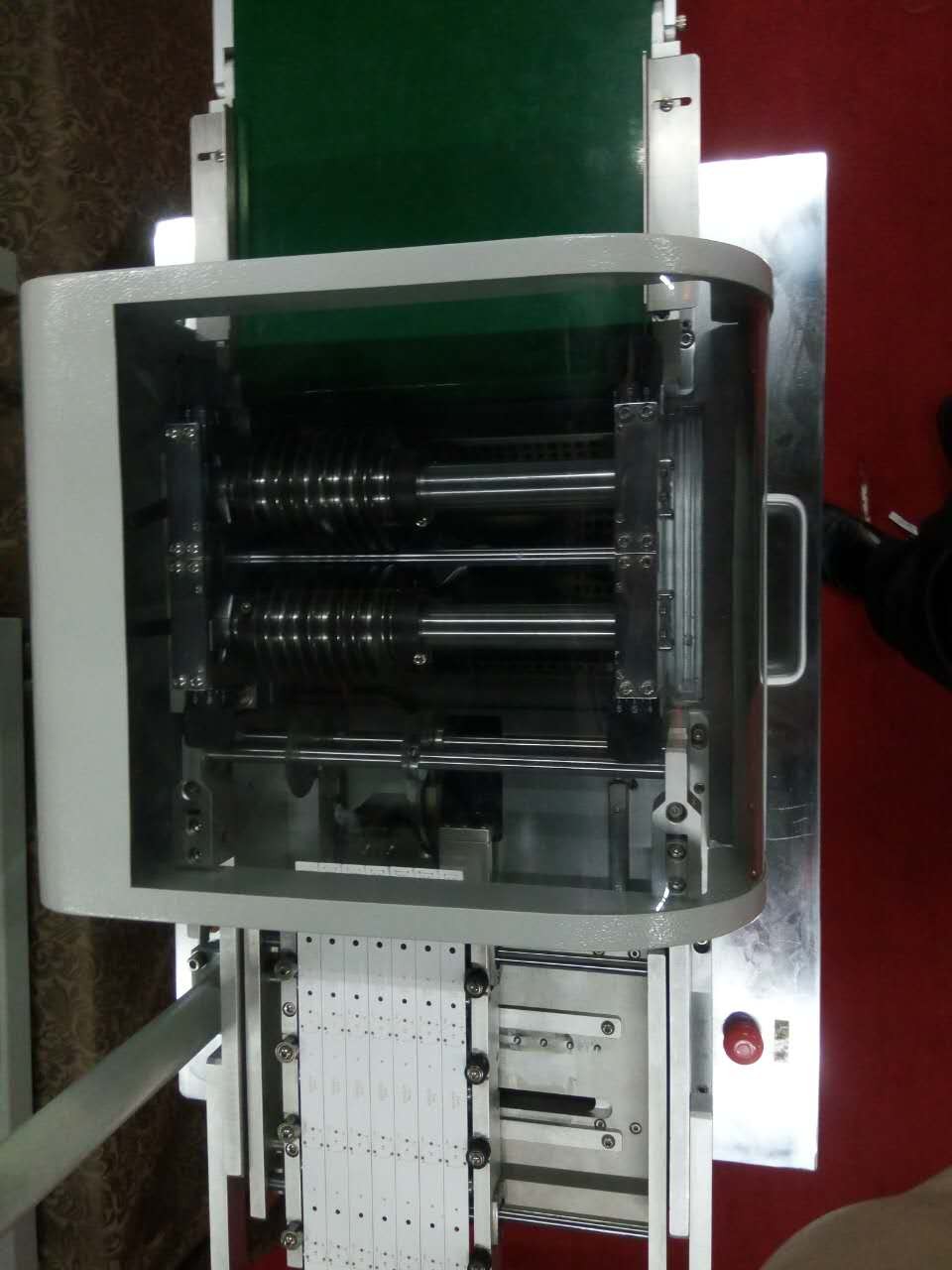

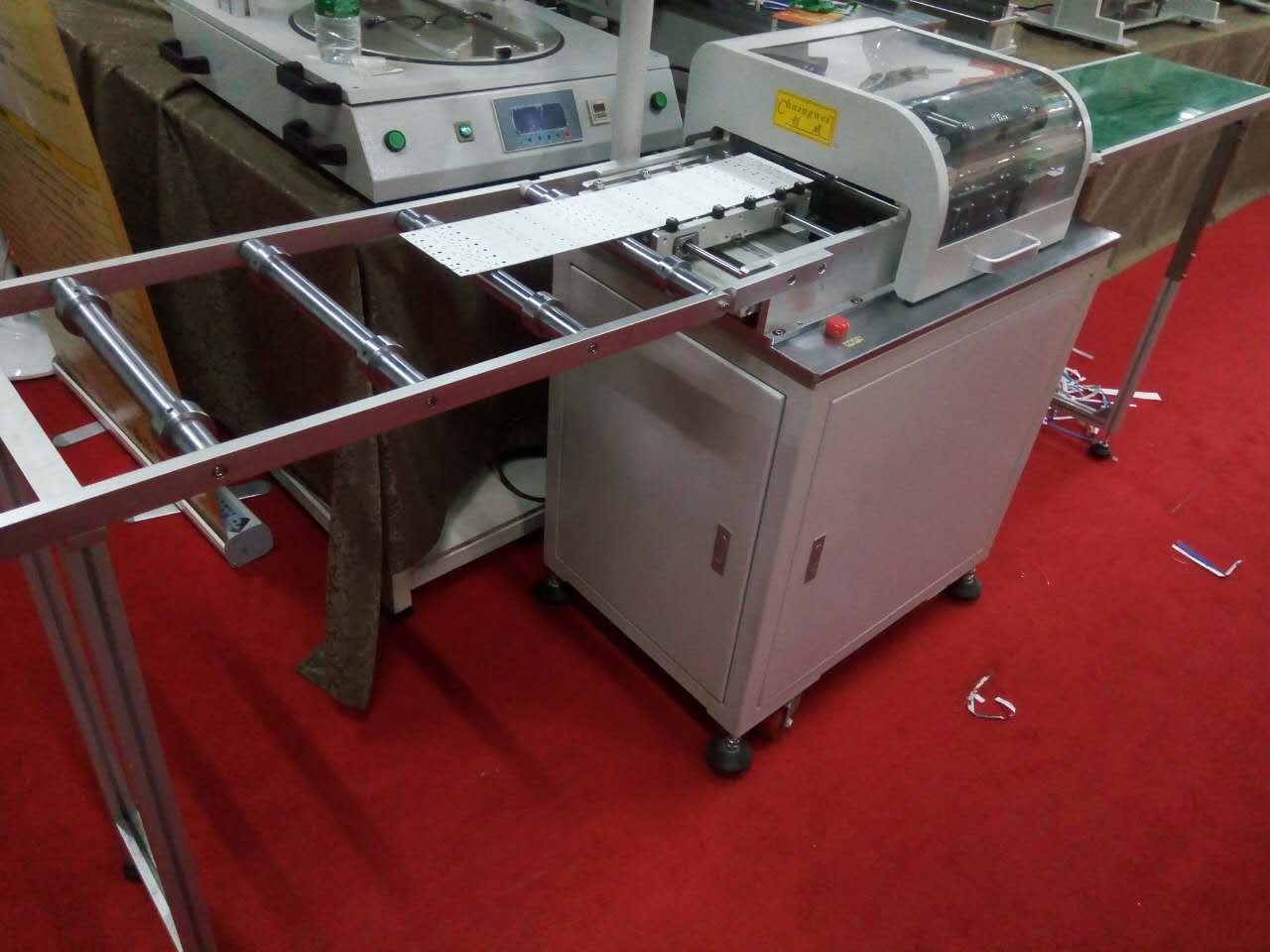

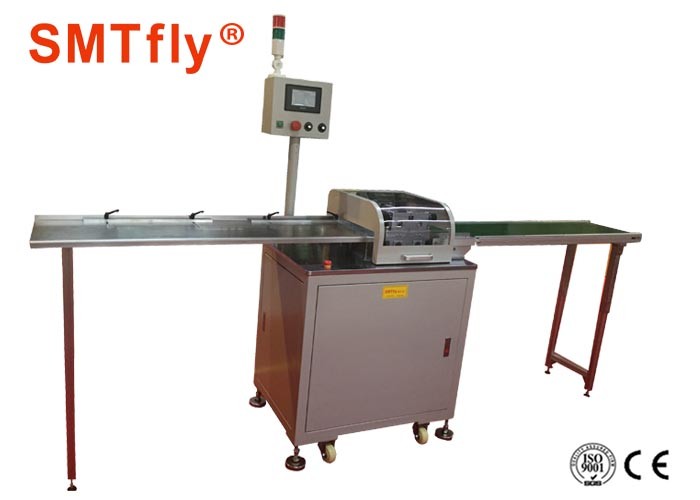

CE PCB Depaneling Cutting Mahcine for Long LED Panel Aluminium MCPCB
Specification:
| Separation speed | 100-220 mm/s |
| Panel length | 100-570mm |
| Panel width | Max 310mm |
| PCB Width | Min 7mm |
| Number of blades | 10 pairs |
| Component height Component side | max 30mm |
| Platform length | 2.4M |
| Machine weight | 180kgs |
| Warranty | 1 year |
Features for pcb separator :
1), 10 pairs of blades is available
2), Of the blades is adjusted toindividual PCB
3), Sensors are used to monitor the separating process
4), The PCBs are placed either by hand or they feed automatically by a loading station.
5), Easy operating
6), Could be adjusted according to PCB sizes and customers' requirements
7), Could be customized made as customers' request
