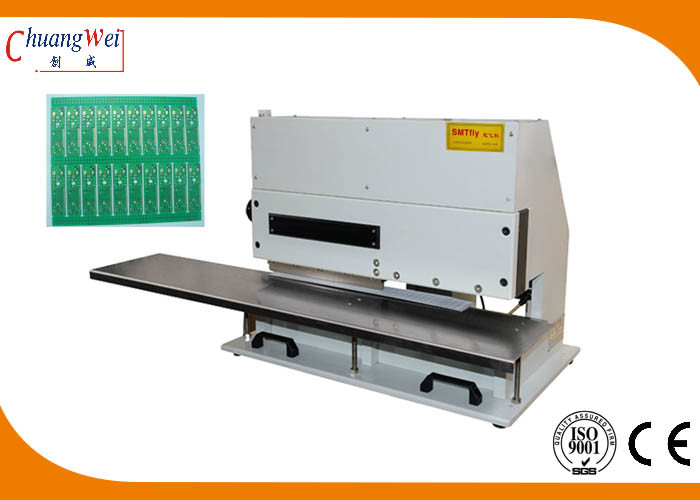

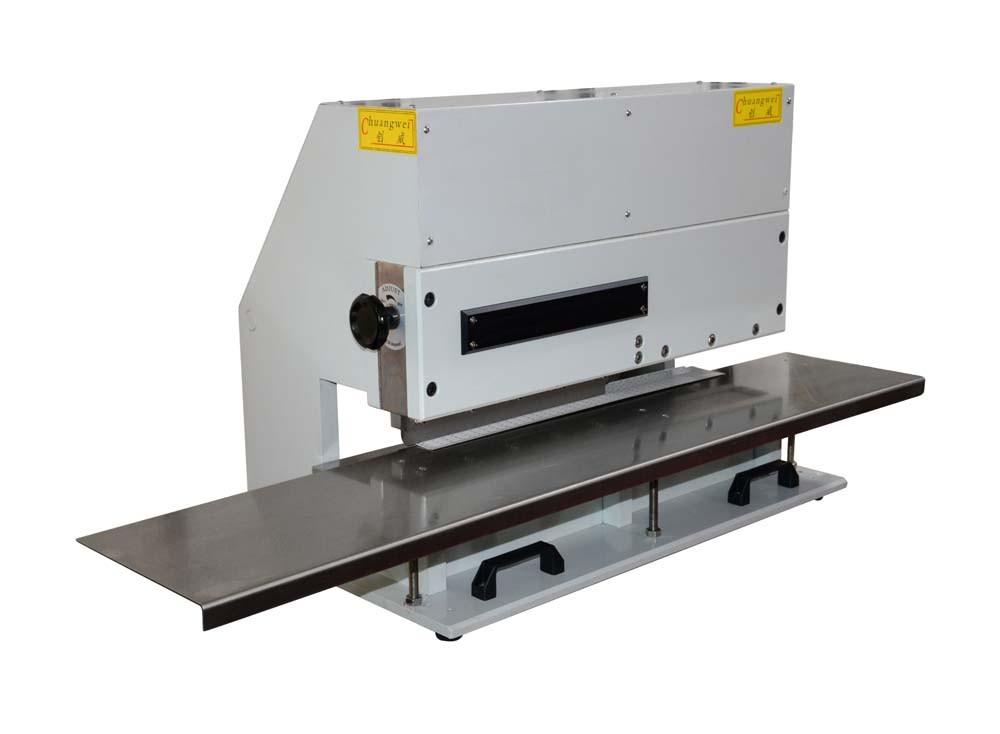

PCB Separattion Machine With Two Linear Blades High Speed Steel Features:
1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations
Specification
| Model | CWVC-3 |
| Max. PCB separating length | unlimited |
| PCB separating thickness | 0.3-3.5mm |
| PCB separating speed | by operator skilled level |
| Voltage | 110/220V |
| PCB separator machine size | 780x500x620mm |
| PCB separator machine weight | 185Kg |
Ditailed Product Discribe
1. The machine was designed to separate pre-scored PCB carefully, without bending and tension stress.
2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the separating process, or thin board even to 0.3mm can be worked safely.
3. Separating process without vibrations
4. PCB separating control method is by pneumatic-driven and electromagnetic valve

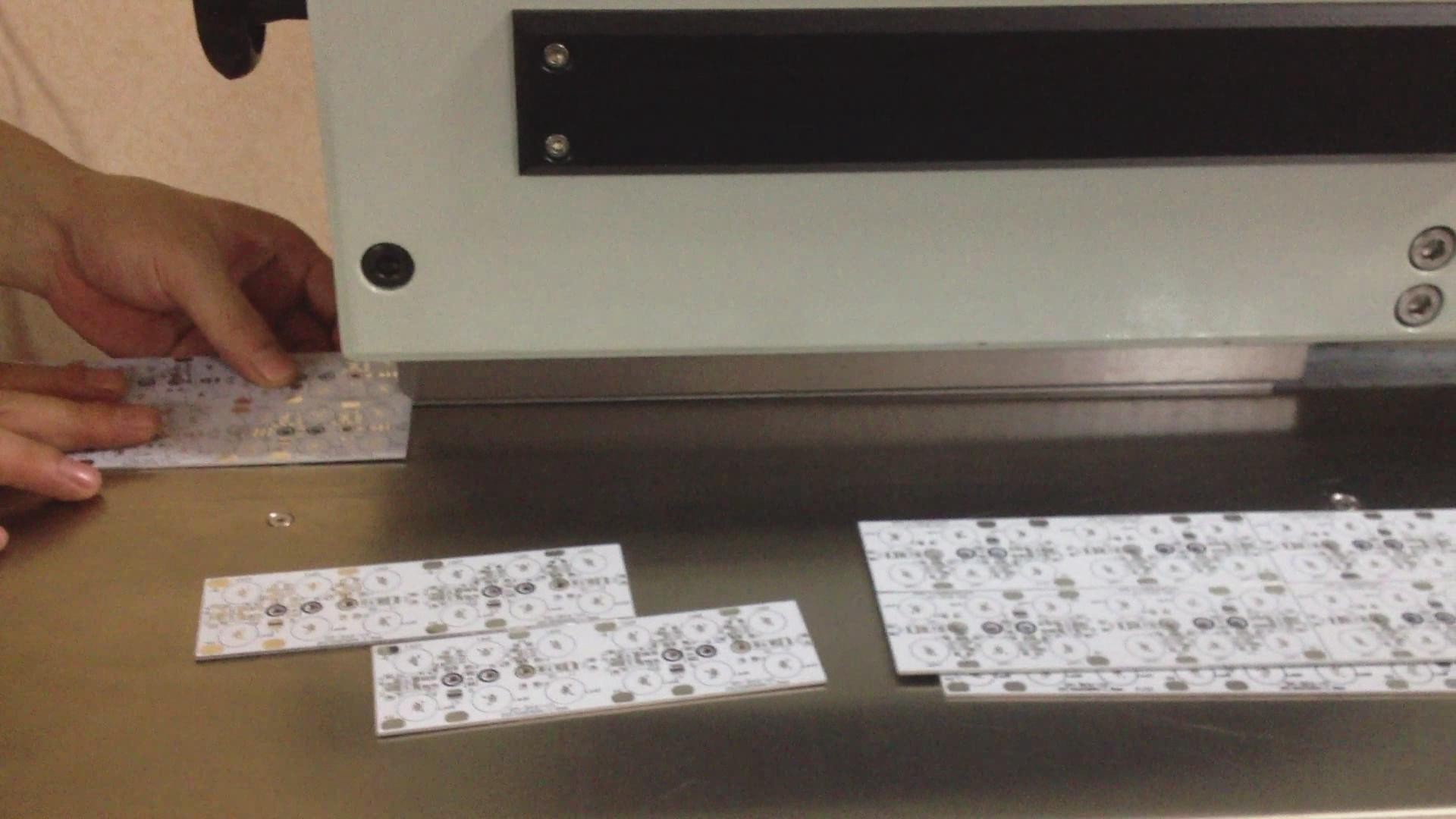

5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust
Please kindly find the video by following link
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
Company information
From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB separator machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely.
