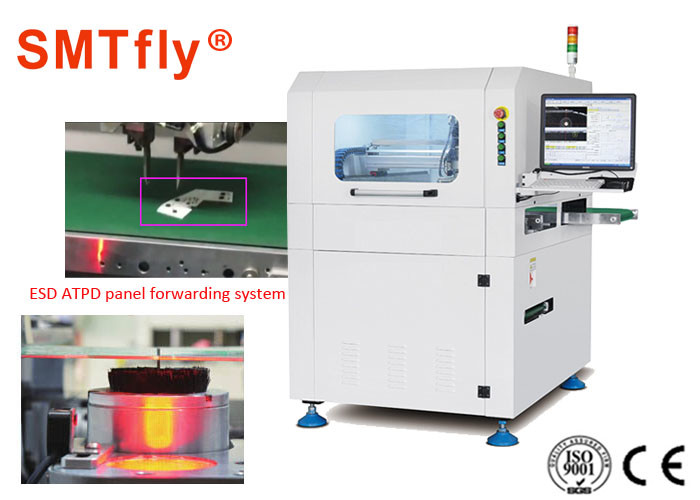

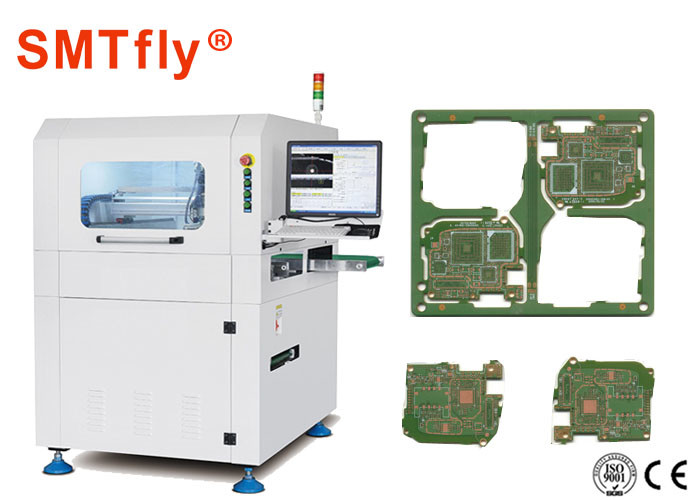

KAVO Spindle Inline PCB Router PCB Routing with High reliability cutting system, CW-F03
An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.
Specification:
| Model | CW-F03 |
| Machine Size | 1000*1200*1533mm |
| Weight | Approx 1900kgs |
| Max PCB Size | 350*350mm |
| PCB Thickness | 0.4-6mm |
| Transmission height | 900±50mm |
| Transmission direction | Left -> Right |
| Transmission speed | 1500mm/s(max)/adjustable |
| Feeding plate type | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication signal of upper and lower computers | SMEMA |
| PCB Positioning | Upper and lower guide rail clamping |
| Picking system | 360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most |
| Cutting spindl/speed | Germany KAVO, 60,000rpm/min |
| Cooling type | Air compression |
| ESD monitoring | Yes |
| Automatic tool change | Yes |
| Cutting stress feedback | Yes |
| Break blade check | Yes |
| Cutting speed | 1-200mm/s |
| Cutting accuracy | ±0.5mm |
| Repeat positioning accuracy | ±0.01mm |
| Coordinate moving speed | 1000mm/s |
| Out plate type | ESD belt transportation/batch panel forwarding unit |
| Waste collection type | Out off the track |
| Procedure programming | GERBER drawing import/Editing program through visual system |
| Air supply | 5-8kg/cm2 |
| Power supply | AC380V±5%, 50/60Hz, 3KW |
Features:
1. Automatic tool change
2. ESD monitoring
3. Cutting stess feedback
4. Automatic production mode
5. Linkage between Spc statistic functionand customer’s management system-ERP
6. Can be equipped with explosion-proof function of vacuum cleaner
Advantages:
High reliability cutting system
Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.
Super Vision System
A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it
supports all functions of machine calibration, compensation and positioning, featuring highstablility and anti-disturbance capacity.
Automatic tool changer
The standard tool changer supports three kinds of 3.175mm tools, each of which has a top loading Capacity of 10 ones. It is combined with precise clamping system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism can realize tool changing.
This model is suitable for PCB board with milling joints,if you're interested in it,contact us:
