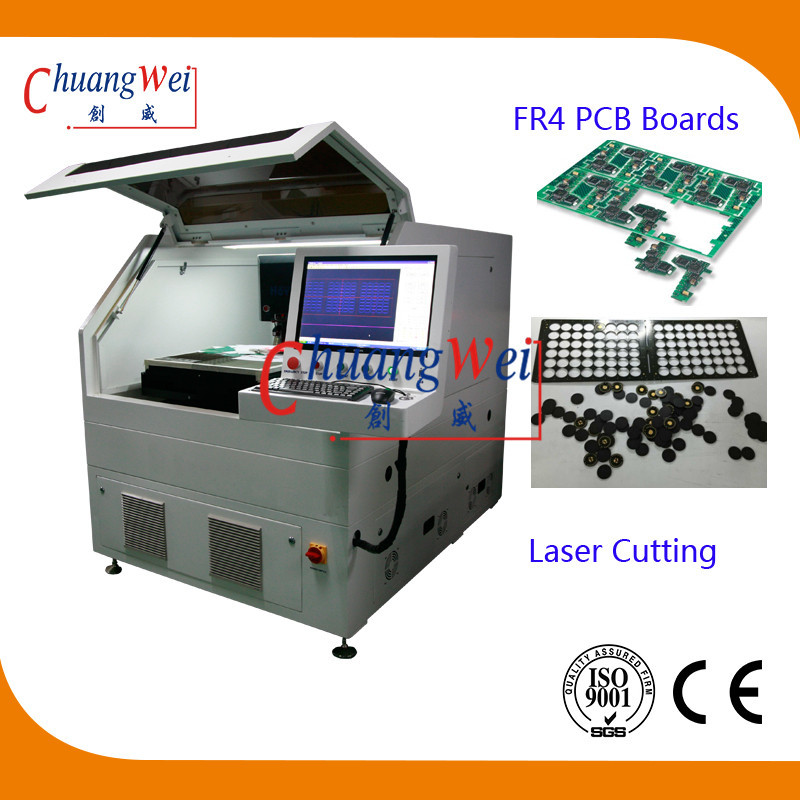

PCB Board Laser Cutting Machine with Imported America 15W UV Laser PCB Laser Cutting Machine Photos
PCB Laser Cutting Machine Parameter
| Parameter | ||
|
Technical parameters |
Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of the | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) |
|
| Material | ≤1.2 mm | |
| Precision | ±20 μm | |
| Positioning | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 600*600 mm | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine table | Marble | |
PCB laser cutting machine Parameter Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
PCB laser cutting machine Cutting Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

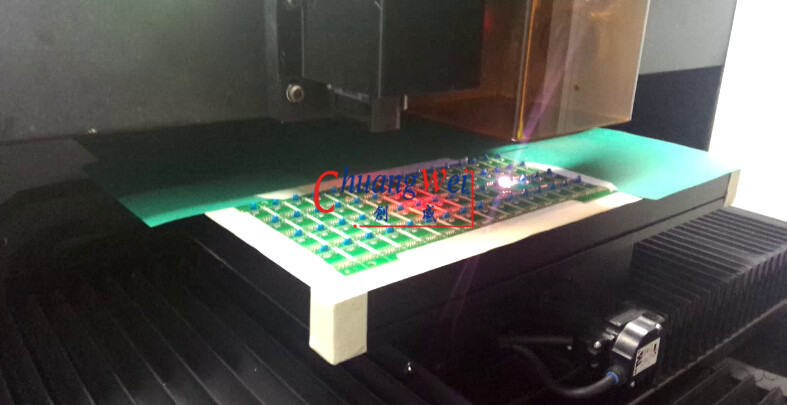

PCB laser cutting machine Cutting Samples

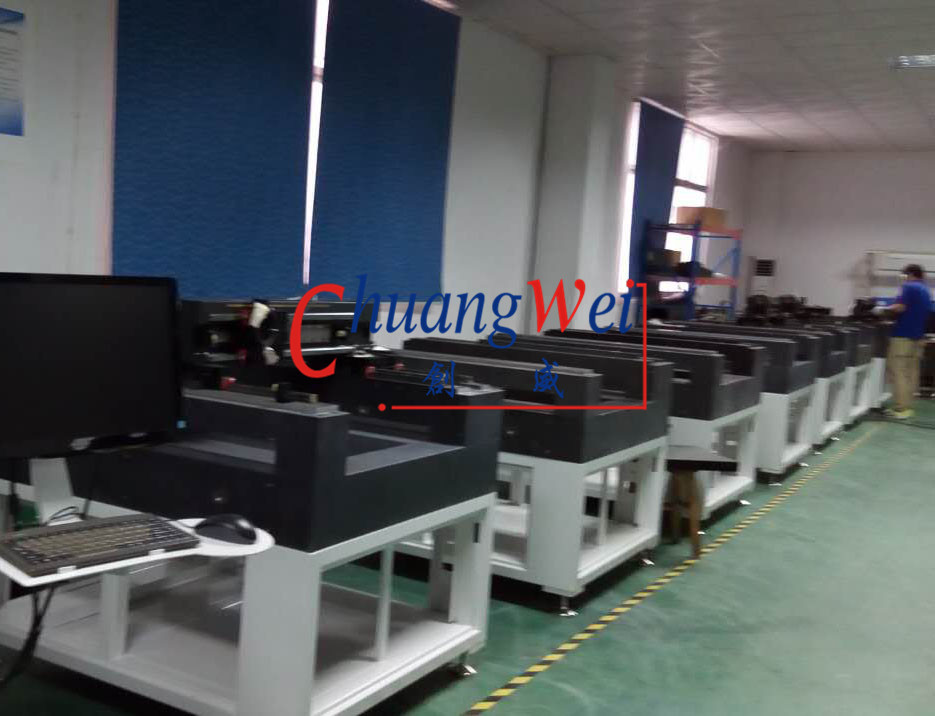

PCB Laser Cutting Machine Details:
