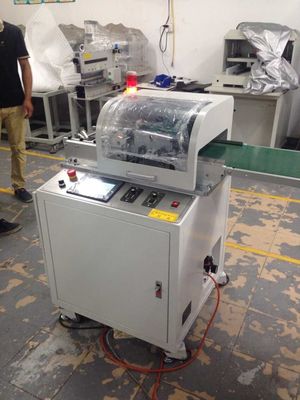

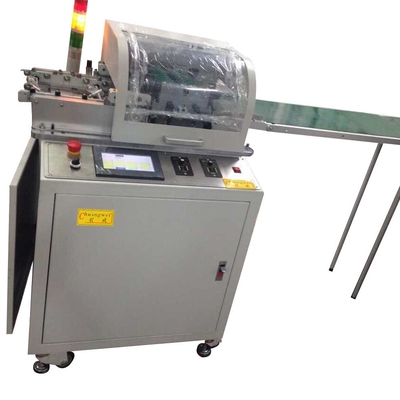

Multi-blade PCB Separator for LED Tube with High Efficiency
Separating the whole light bar board one time , high-efficient cutting machine recommendation : ASC multigroup and multiblade cutting machine .
Features of machine:
The machine adopts the computer screen control with a counting device , which you can use to preset the processing production . And the space of cutting tool is visible on the screen .
It can cut many boards with multiple sets of knives work at the same time .
The knife flywheel is adjustable as a whole from 0 to 5mm
The distance between knives is regulable as well , applying to pcb with width from 15mm to 20mm .
The blade is made of imported high speed steel material, which is durable and have a long service life.
It is convenient to adjust the cutting speed through rotary knob.
No limits of the cutting length .
Thickness range of pcb : 0.2-5.0 mm

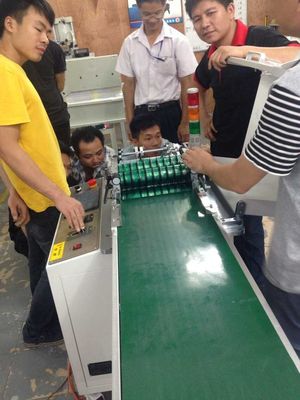

With a conveyor belt line , the separated pcb can be send out directly to reduce pick- and-place .
The machine adopts multiple blade to separate boards with simple operation and high efficiency, fitted for batch production.
Specification
Maximum board length : unlimited
Board thickness :1.0-3.5 mm
Plate feeding speed : 400 mm/s
Blade material : high speed steel
Working temperature : 10-35℃
Storage temperature : -20-50℃
Voltage : 220/110V
Dimension : 2120mm * 630mm * 1150mm
