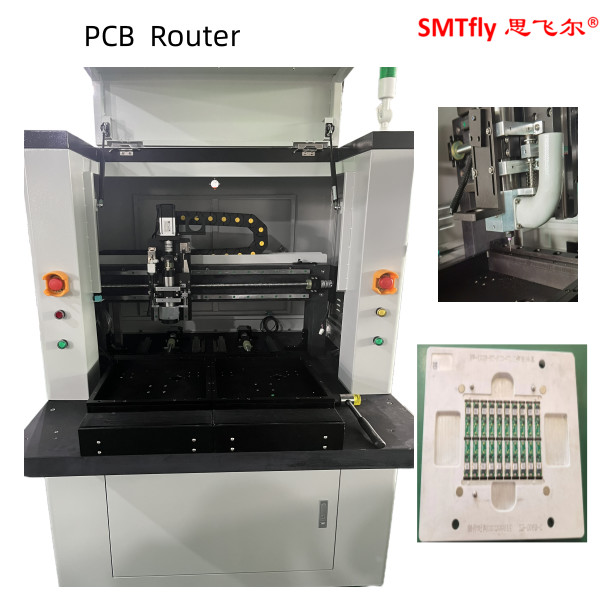

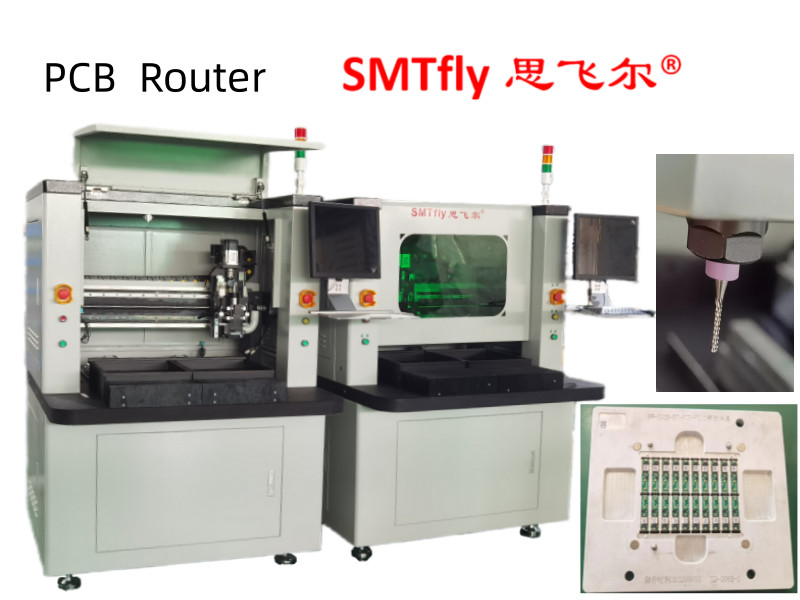

High Precision PCB Router Machine,PCB Router Depaneling Device
1. Machine Parts List
|
I. Hardware |
|
|
SPINDLE |
Morning Star spindle and inverter |
|
CCD |
Sony 520 line industrial cameras |
|
LENS |
Computar EX2C |
|
Screw |
TBI Precision ground ball screw imports |
|
Guide |
HIWIN widening Imported linear guide rail |
|
MOTOR |
JiaBao LCF Series |
|
I/O CONTRONL CARD |
HFC PCI-9074 |
|
DRIVER CONTRONL CARD |
HFC PCI-9074 |
|
I/O CARD |
PCI-9074-64pcs/-38pcs |
|
Static cleanup |
STATIC-ST401A Series |
|
Computer |
RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
|
Machine interface |
AOC LCD17",Logitech mouse |
|
2. software |
|
|
Control system |
Windows XP Professional (Service3,v.3244) |
|
Operation GUI |
Chinese Windows XP |
|
Program edit |
Inline |
|
Vision system |
CCD AOTU offset |
|
Control system |
F 1.0.2 version |
2.Performance Parameters
|
Overall |
|
|
Dimensions(W*D*H) |
1220mm*1450mm*1420mm |
|
Weight |
550KG |
|
Height offset |
60~110mm |
|
Manipulator |
|
|
Motor type |
JiaBao series |
|
Positioning repeatability |
0.001mm |
|
Axis working area(max) |
680mm*360mm*50mm |
|
Work station |
|
|
PCB fixation |
standard,specialization |
|
PCB loading/unloading |
manual |
|
PCB size (max) |
322mm*322mm |
|
PCB thick (max) |
5mm |
|
Fixturing |
|
|
Rigidity fixturing |
standard |
|
Fixturing fixation |
machinery |
|
Spindle Motor |
|
|
Power |
400W |
|
Spindle |
50000rpm/min |
|
Protect |
self/wind cooling |
|
Change cutter |
Specialization |
|
Routing capability |
|
|
Cutting speed(max.) |
100mm/s |
|
Driving speed(max.) |
3000mm/s |
|
Precision of cutting |
0.01mm |
|
Vacuum System |
|
|
Vacuum power |
2.2KW AC 380V |
|
Vacuum |
plumb |
|
Utilities |
|
|
Power |
2.2KW AC380V |
|
Air supply |
2~5KG/cm2 |
|
Programming |
|
|
Program edit |
Inline |
|
Function edit |
Line,arc,circula,U-curve |
|
Program storage |
HDD |
|
Vision system |
SONE colour CCD |
|
milling cutter offset |
AUTO |
|
Vacuum setup |
AUTO |
|
Operation Monitors |
|
|
Iindicator |
Iindicator Machine state |
|
tool check |
Automatic detection tool life, the use of time testing |
|
Motor protect |
Have overheating, overload, low voltage protection function |
|
motor over loading check |
Have Overload, the line is normal, low voltage protection function |
|
Tool usable time |
Automatic detection tool life, |
|
Data statistic |
Separate board model, separating count, diverse counting methods |
|
Error record |
Software automatically records all alarms memory of machines |
|
III. Accuracy |
|
|
Axis precision |
0.001mm |
|
Cutting precision |
0.1mm |
|
IV. Safety |
|
|
Working area protect |
With four sealed protection |
|
Door sensor |
Front and rear safety door micro-switch sensor (optional) |
|
Exigency stop button |
|
3.Function Description
1) X10 zoom-in image makes programming easier&increase the accuracy of point setting
2) Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
3) AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting
4) Routng bit automatically lift and shift to next programmed point then cutting to extend the life time of routing bit.
5) Safety door industry design
6) CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting
