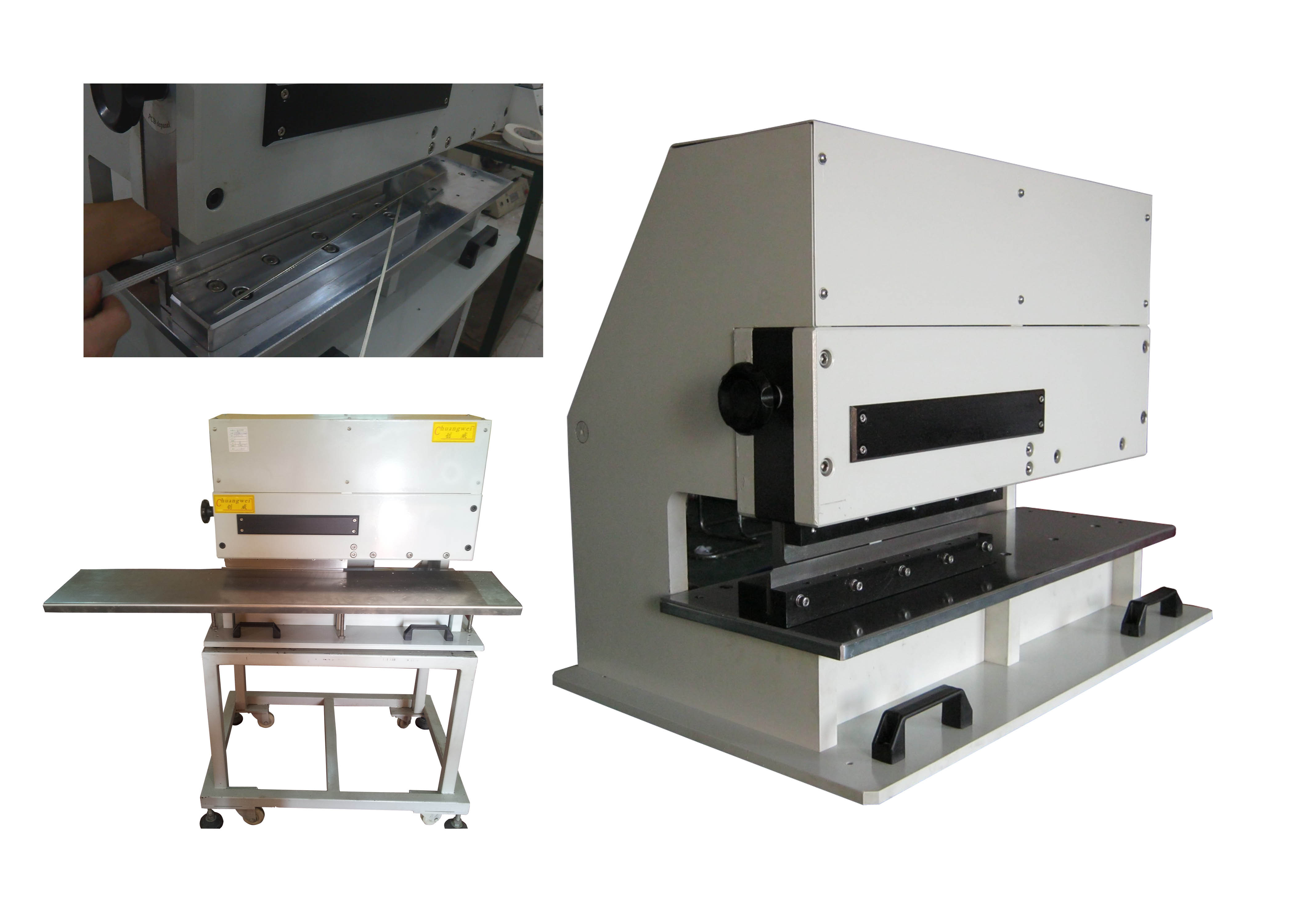

PCB Separator Machine Handling Long Hard FR4 / Aluminium Boards
Use two horizontal knives to separate without stress and will not damage parts as close as 0.5mm from the score line and the operator cannot misfeed the board.
PCB Separator Machine Handling Long Hard FR4 / Aluminium Boards Specifications
pcb separater equipment for export
1.lead time:3days
2.separate length:unlimited 3.separate thickness:1.0-3.5mm
3.Easy operation
4.Hot selling
5.Dealing with all kinds of pcbs
6.Safe cutting and operator cannot misfeed the boards
7.Stable working
PCB Depaneling Router Machine Specification:
|
Model |
CWVC-3 |
|
Max PCB Length |
unlimited |
|
Size |
780*500*620mm |
|
Thickness |
0.3-3.5mm |
|
Weight |
185kgs |
|
Air Pressure |
0.6-0.8Mpa |
Aluminium PCB depanelizer mahine Features:

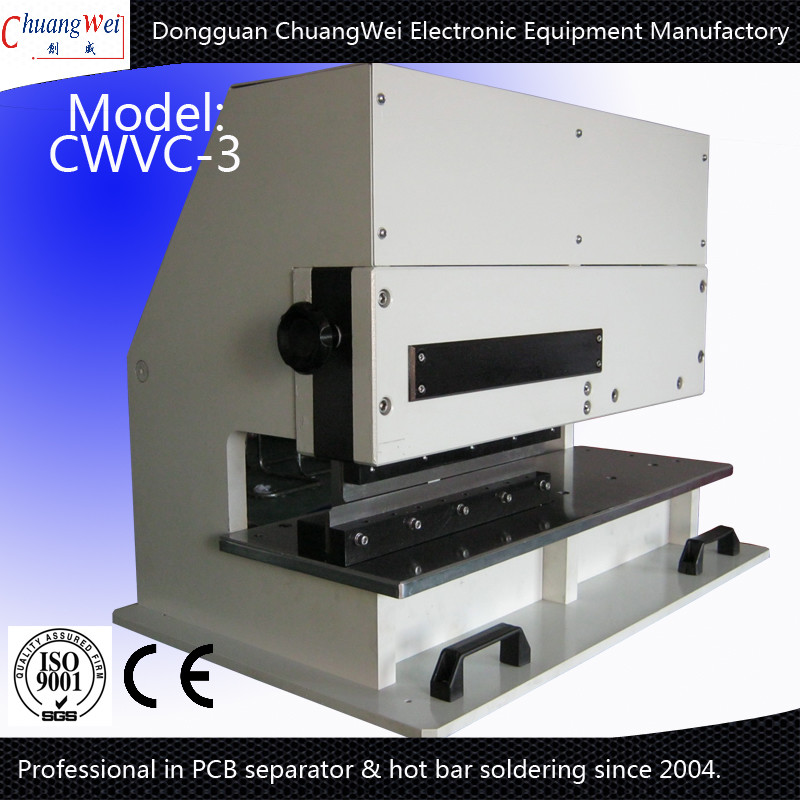

Penumatic Depanelizer CWVC-3
1.Cut any length metal board more safety and easily.
2.Separates long boards directly,without turn direction
3.Separates boards up to 2.0mm thick Metal Board
4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives
The longest Minimize: unlimited
