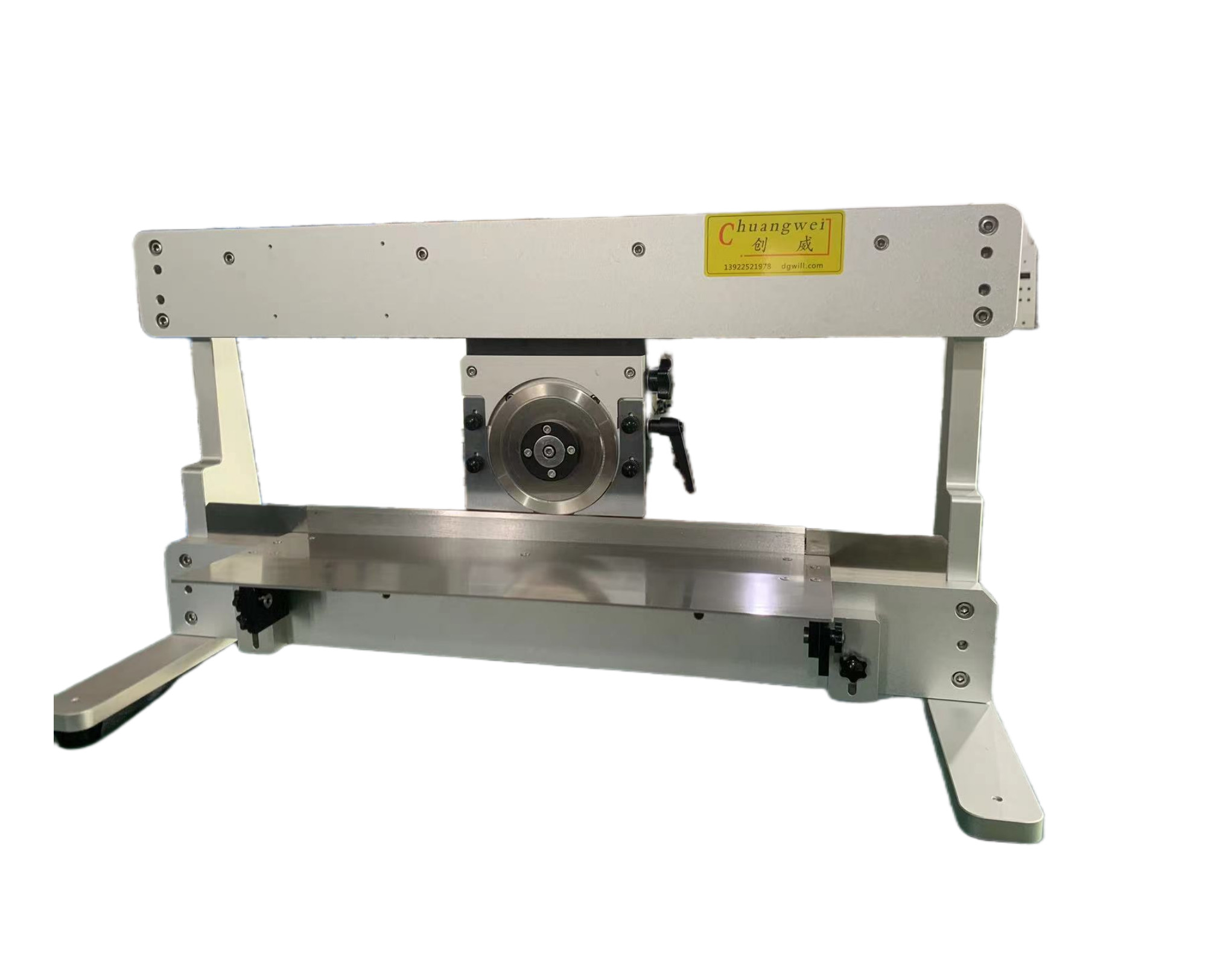

Manual PCB Separtor no Vibration for Safe V-groove PCB Depanelizing

Manual PCB Separtor no Vibration for Safe V-groove PCB depanelizing

1.The price is very economical
2.Easy maintanance and operation
3.Low bending stress,no vibration

[ Chuangwei Manual V-CUT PCB singulation machine specifications: ]

[ Chuangwei Manual V-CUT PCB singulation machine  descriptions: ]

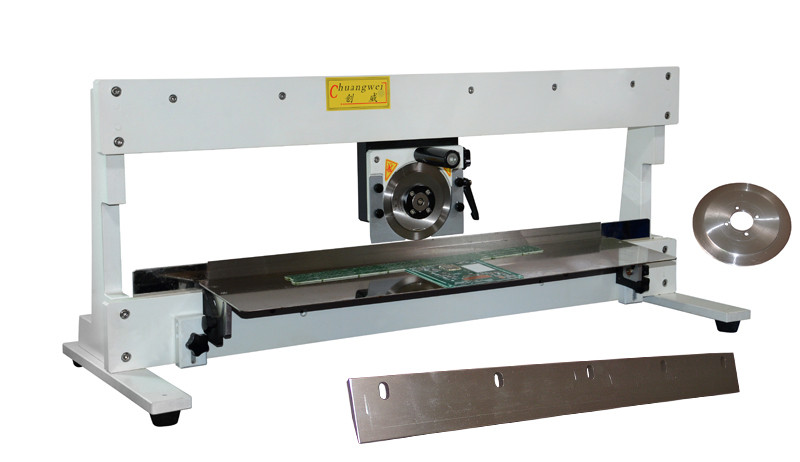

1.Singulation type:upper component side(circular blade),bottom solder side(linear blade).
2.Singulation  for small and large PCBs with pre-scored V groove.
3.Singulate  pre-scored V groove PCB assembly without stress on either PCBs or component.
4.Singulating   speed is controlled by hand and very easy operation.
5.Large stainless steel platform on both side of cutting blade prevents PCBs shaking and the table height and angle could be adjustable.

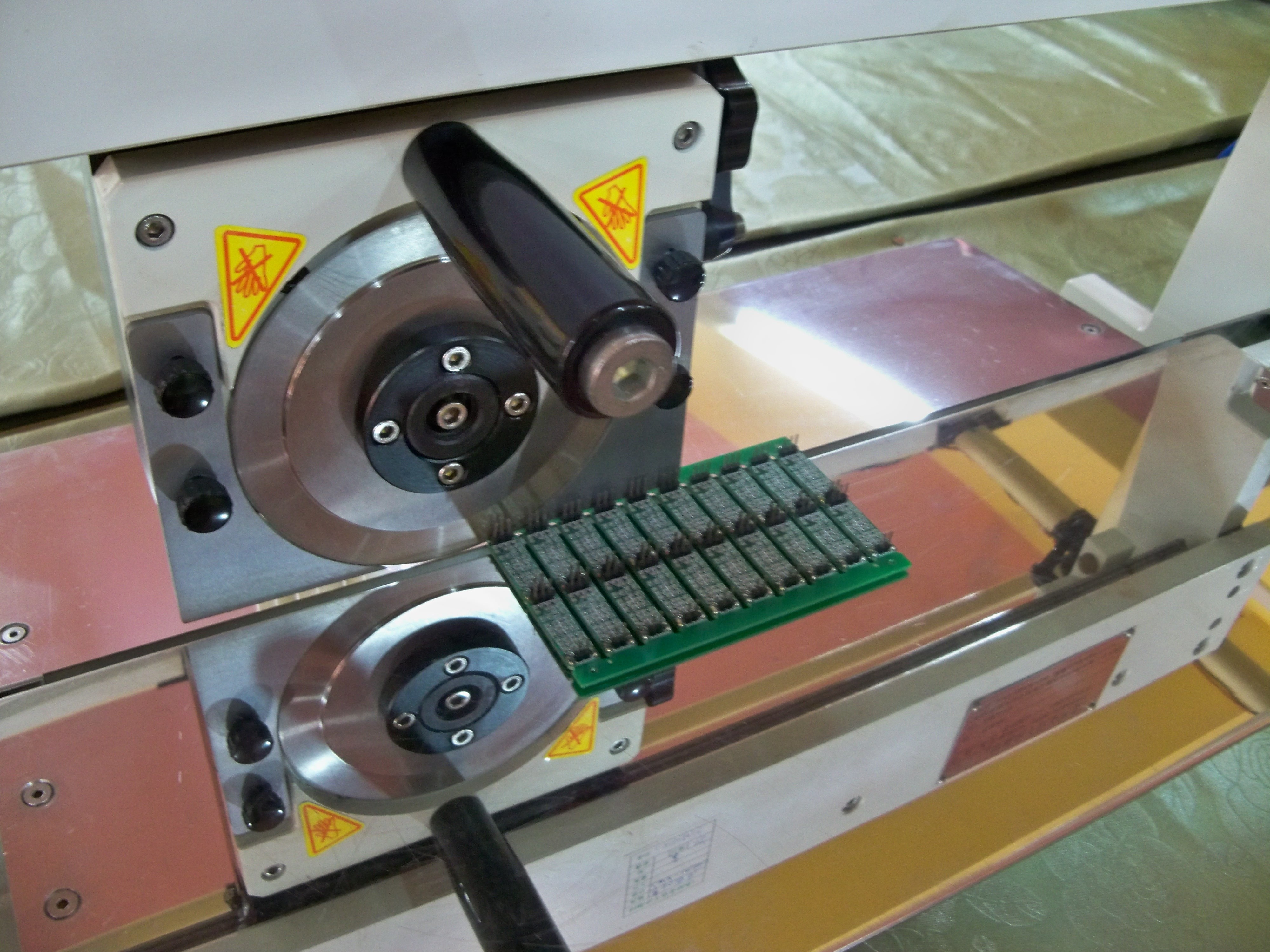

6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCBs.
7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.

Chuangwei PCB singulation/PCB depanelizer machine CE Certificate:
