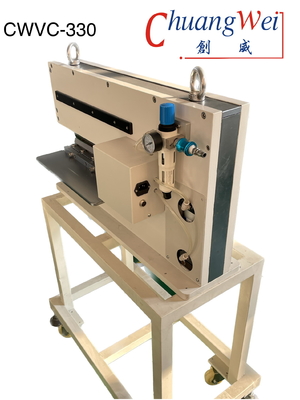

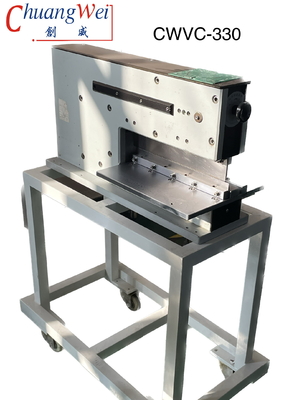

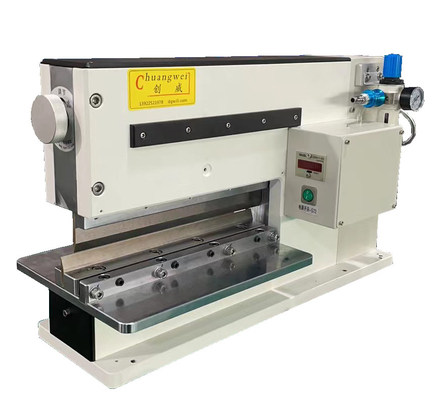

Aluminum CWVC-330 Pre-scored PCB Depaneling Machine 0.3mm,PCB Separator
The most professional PCB singulation machine manufacturers in China.

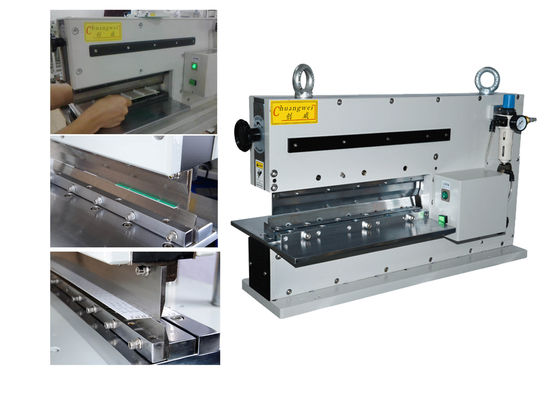

***V CUT PCB singulation machine***
1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be singulated safely
3.Singulating process without vibrations due to pneumatic drive unit
***V CUT PCB singulation machine specifications***
| Model | CWVC-330 |
| Max. PCB singulation length | 330mm(Can custom made) |
| PCB singulation thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB singulating speed | due to operator skilled level |
| PCB singulation machine size | 620*230*400mm |
| PCB singulation machine weight | 165kg |
***V CUT PCB singulation machine features:***
1.Pneumatically driven and electromagnetic valve control.
2.Singulating process without vibrations due to pneumatic drive unit .
3.Singulating PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be singulated safely.
4.Singulating operation is that operator stamps the foot pedal to singulate PCB.
5.Highest components near the v groove of PCB can be up to 70mm.
6.The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
***V CUT PCB singulation machine operation video please see below: (CWVC-330)***
http://www.youtube.com/watch?v=zuFZH9KcxZs
http://www.youtube.com/watch?v=PWOYDPsJiUY
http://v.youku.com/v_show/id_XNTk2NzgxNDEy.html
http://v.youku.com/v_show/id_XNTk2NzU4NzA4.html
***Chuangwei PCB singulation machine***
***Since 2004 ChuangWei started to development,manufacture,sale,service for PCB singulation machine, until now,we have produced different kind PCB singulation machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB singulation machine base your actual requires.
***PCB singulation machine mainly applies to singulate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
