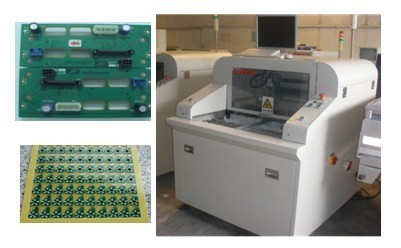

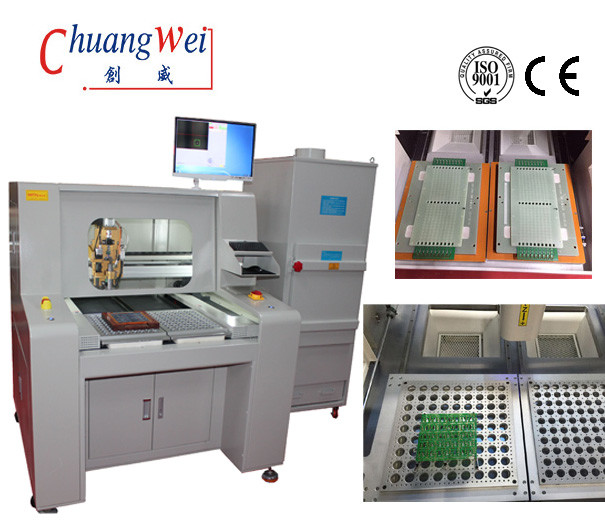

High Speed Pcb Depaneling Machine PCB CNC Router For PCB Cutting
Setting fixture 2 stations Working Area X:330mm Y:330mm Z:15mm Component Height Top side: 15mm Bottom side: 45mm PCB Thickness 0.5 ~ 2mm (It’s necessary to contact Aurotek in advance for over 2mm ) Precision of Cutting0.1mm Positioning Accuracy0.01mm Positioning Repeatability0.02mm Number of axes in use 4 (X,Y1,Y2,Z)
Driving Speed (Max.) X, Y: 1000mm/sec, Z: 750mm/sec Cutting Speed (Max.) X, Y, Z: 100mm/sec (It’s according to the specification of Bit for the best speed setting)
Spindle High speed variable frequency motor, 150W(Max. 58,000 rpm) Cutting possibilities Linear, Arc, Circular, U-curve, L-curve Motor of Axes 4 axes (200W AC Servo motors) Routing bit sectioning Max. 2 sections Route planning Direct coordinate input or manual Guiding with 10 x CCD camera Safety area sensor Standard Tool break detection Standard Operating System Windows XP Program storage HDD Program backup USB Man-machine interface TFT monitor + keyboard + mouse PCB loading/unloading Manual
Power Supply 3-Phase AC220V±5 50/60Hz [3HP Vacuum included]3kw,11A Air Dry Air 0.5Mpa Dimensions 1190x1039x1401+535 mm (signal tower) Weight 390kg Working hight 90cm±5cm
