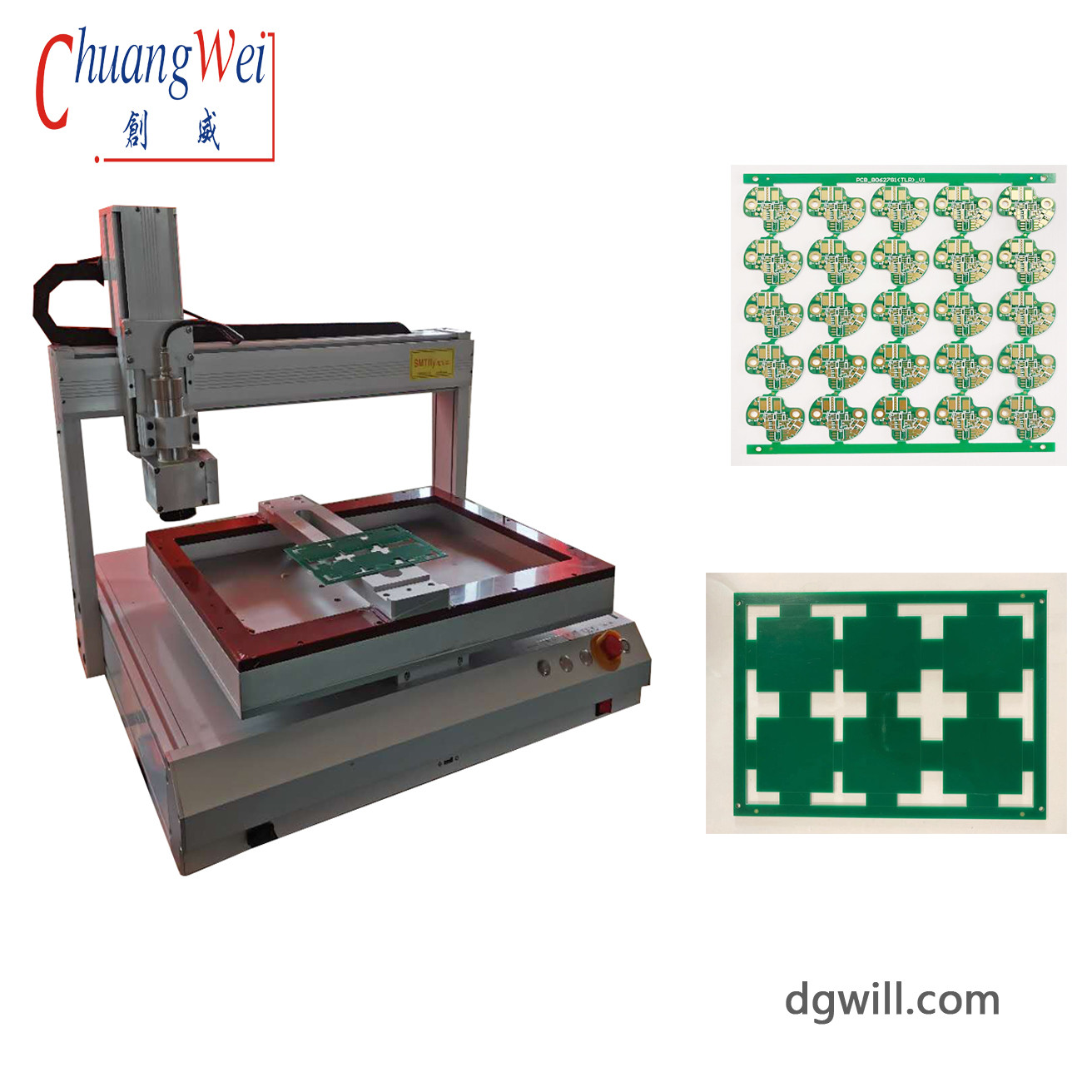

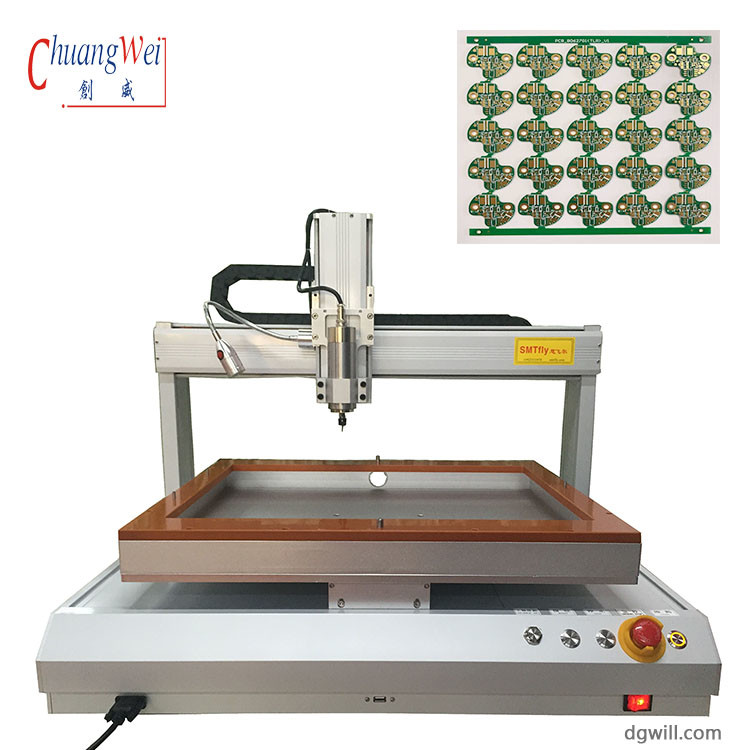

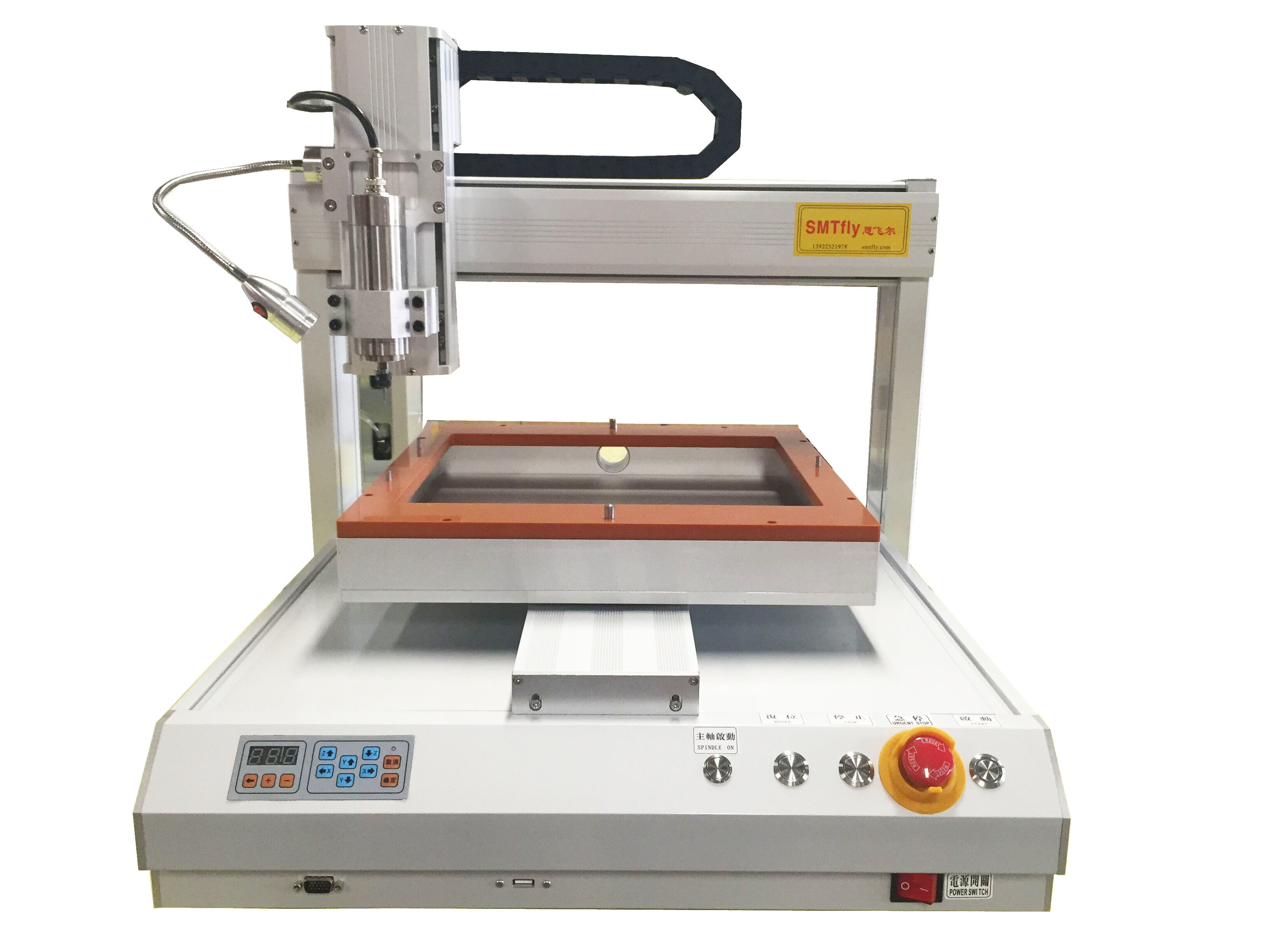

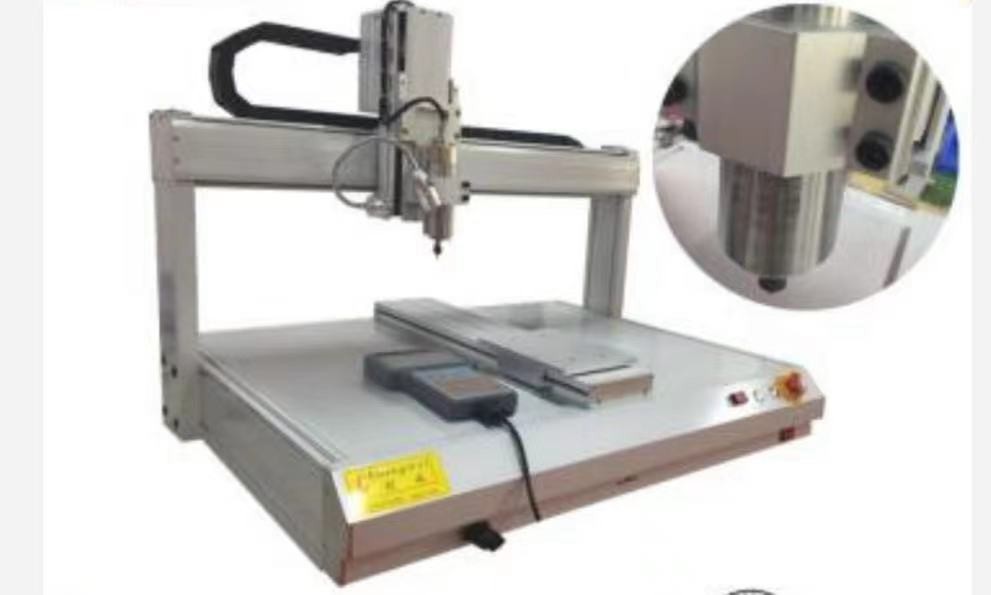

PCB Router PCB Depanelizer Desktop Easy Programming by Teaching Pedal
Specification:
Motor drive system |
Servo/stepper motor |
Spindle speed |
50000r/s |
Cutting performance |
500mm/s |
Drive system repeatability |
±0.02mm |
Cutting speed Resolution |
±0.01mm |
Configuration |
X, Y, Z 3 axis Max 100mm/S(depends on PCB material and cutting quality) |
Repeatability |
<0.1mm |
PCB positioning fixture load/unload |
Manual |
PCB thickness |
0.6-3.5mm |
Working area |
650*450mm |
Spindle motor power |
0.5KW |
Spindle motor speed |
50000r/m |
Spindle motor cooling |
Air-cooled |
Machine dimension |
980*580*615mm |
Weight |
135KG |
Security settings |
emergency stop switch |
●Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s
●Cut continuously without interruption during loading and unloading
●High-quality shaft system allows the system to quickly ramp, reduce the period, Improve productivity, and maintain high precision
●Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft
●Avoid tin cracks and component damage caused by manual folding;
●The operation is simple When changing the model, you only need to adjust the cutting program and change the fixture to start production;
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
