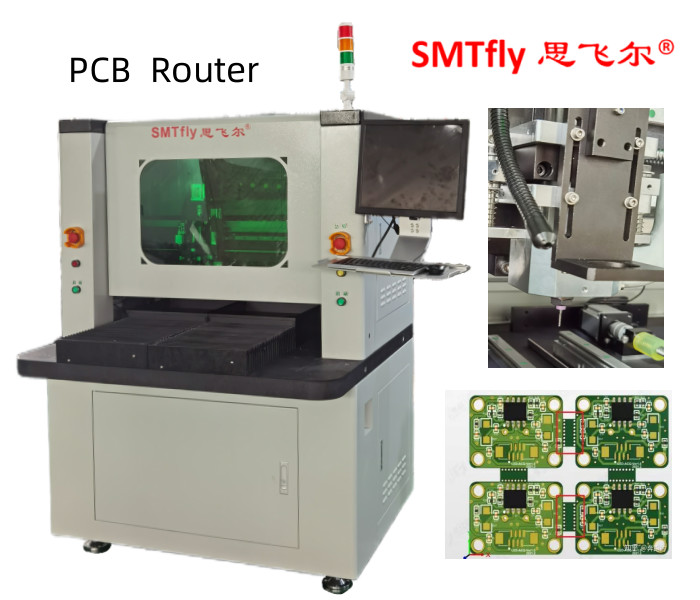

PCB Router Machine 150W 3.5mm Thick Cnc Machine For Pcba Making / Cnc Router Pcb Milling
Features:
1. Broken knife detection, automatic knife changing function, ensure the continuous working time of the machine, reduce the operation difficulty.
| Specification | |
| Depaneling accuracy: ±0.05 | X,Y1,Y2,Z Driving Method :Servo Denso |
| Maximum size of depaneling: 320mm*350mm(Dual-platform merger 640*700) | Control Method: Adoption of Industrial Motion Controller + Industrial Computer Man-machine |
| Maximum cutting speed: 100 mm/s | Operation and Data Storage Method: Industrial Computer |
| Cutting Repeatability: 0.01mm | Mainframe Size: 1200*1250*1680 (L X H X D)mm |
| Cutting Form: Straight, round, arc, U-shape, L-shape, etc. | Machine Weight: 650Kg |
| Image : intelligent industry | Working Air Pressure: 5KG/CM² |
| Operation Interface: Chinese Interface | Fiducial Mark: CCD Auto Alignment Function |
| Mainframe Voltage: :AC 220V 50/60Hz | Program Preview: Path Simulation Function |
| Dust Collector Size: 650 x 400 x 1250 (L X H X D)mm | Program Preview: CCD Path Simulation Function |
| Maximum Rotation: Taiwan Spindle Max 45000rpm | Dust Collector : 4HP |
| Dust Collector Power Supply : AC 380V 50/60Hz | Dust Collector Weight :122kg |

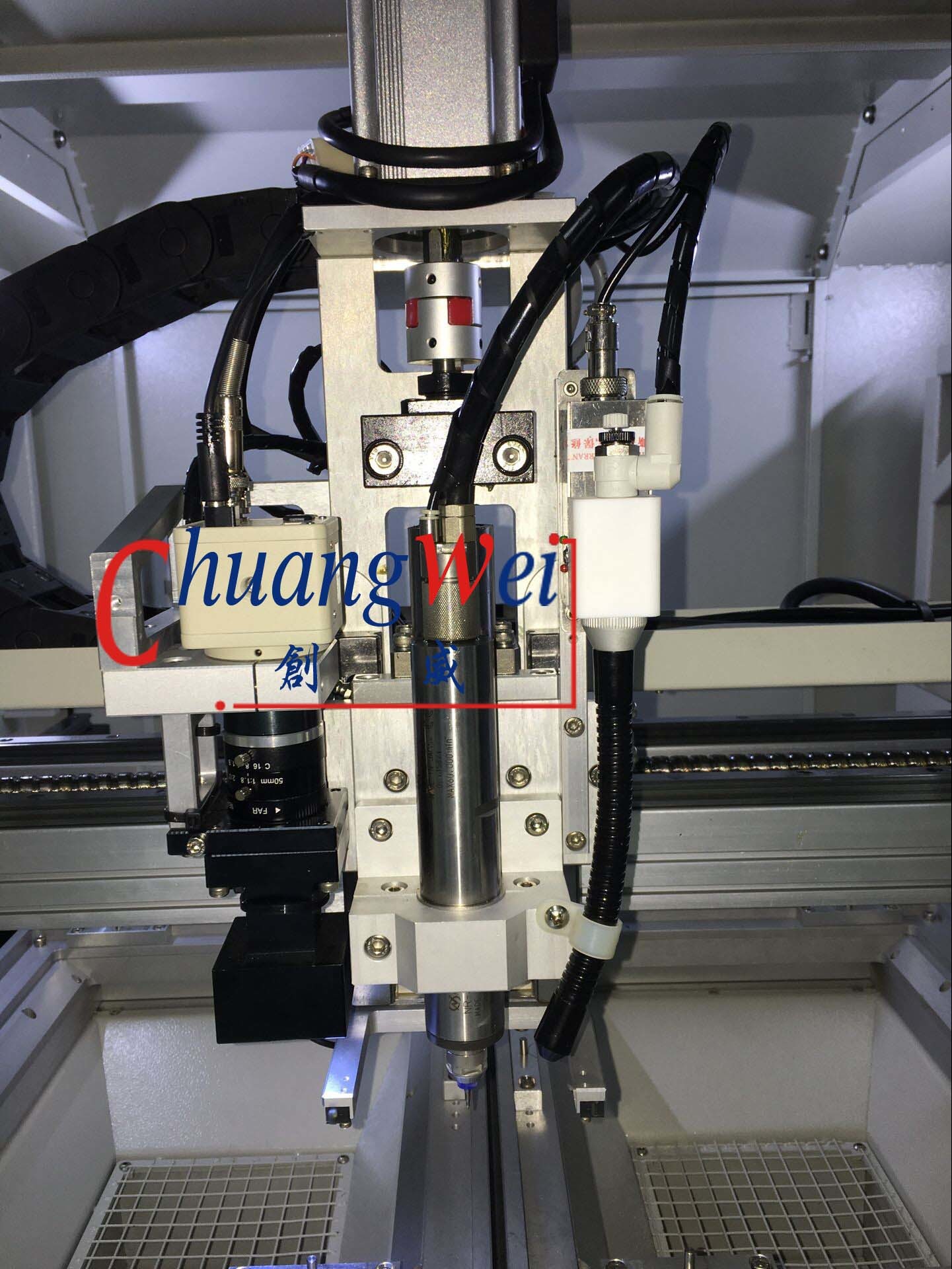

Router Detailed Photoes:

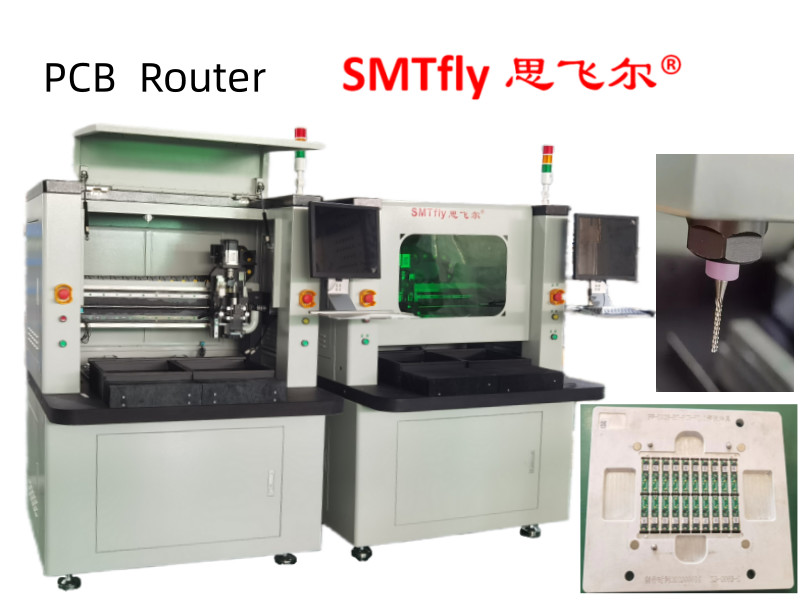

Router Depaneling fixture Photoes:
