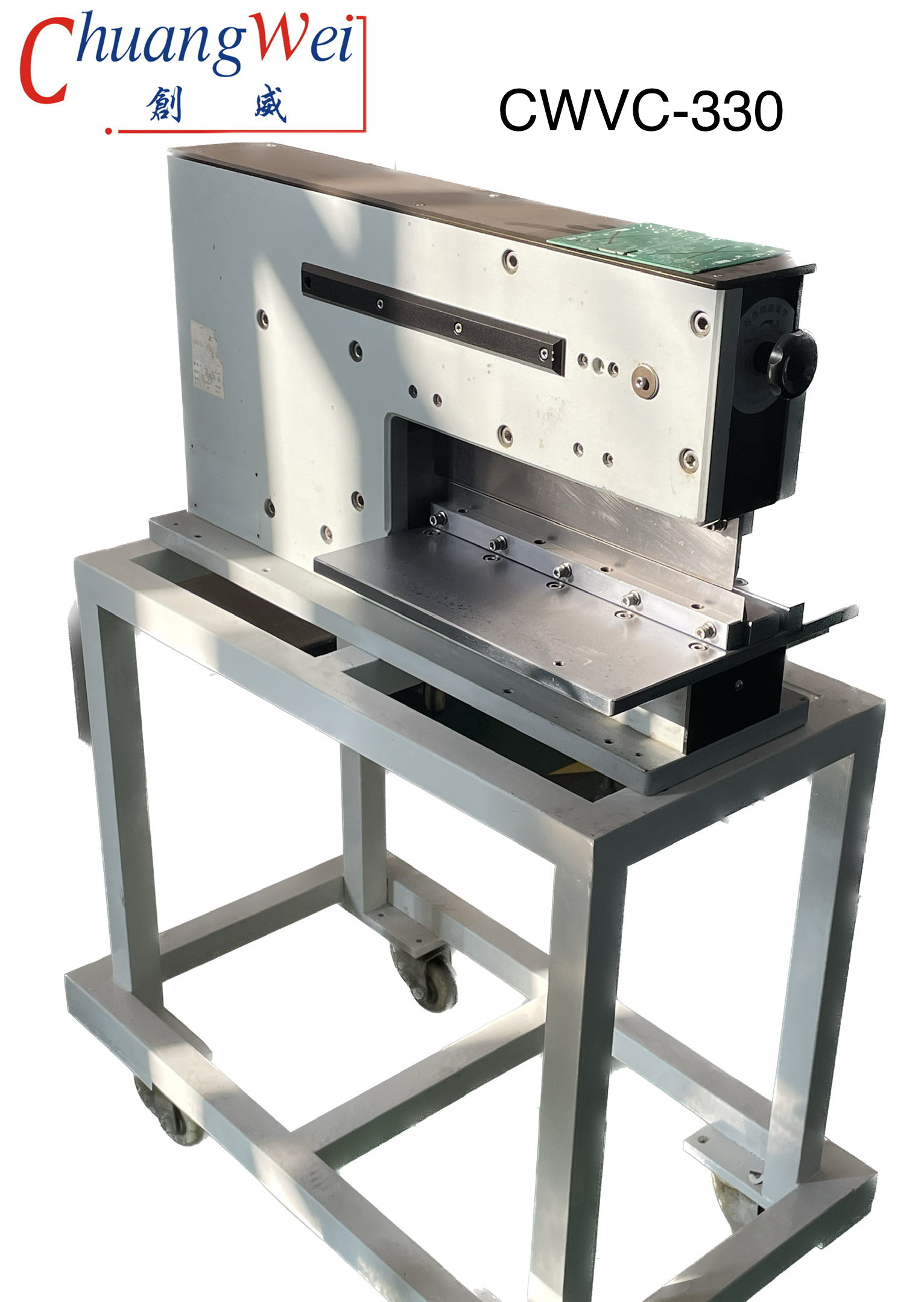

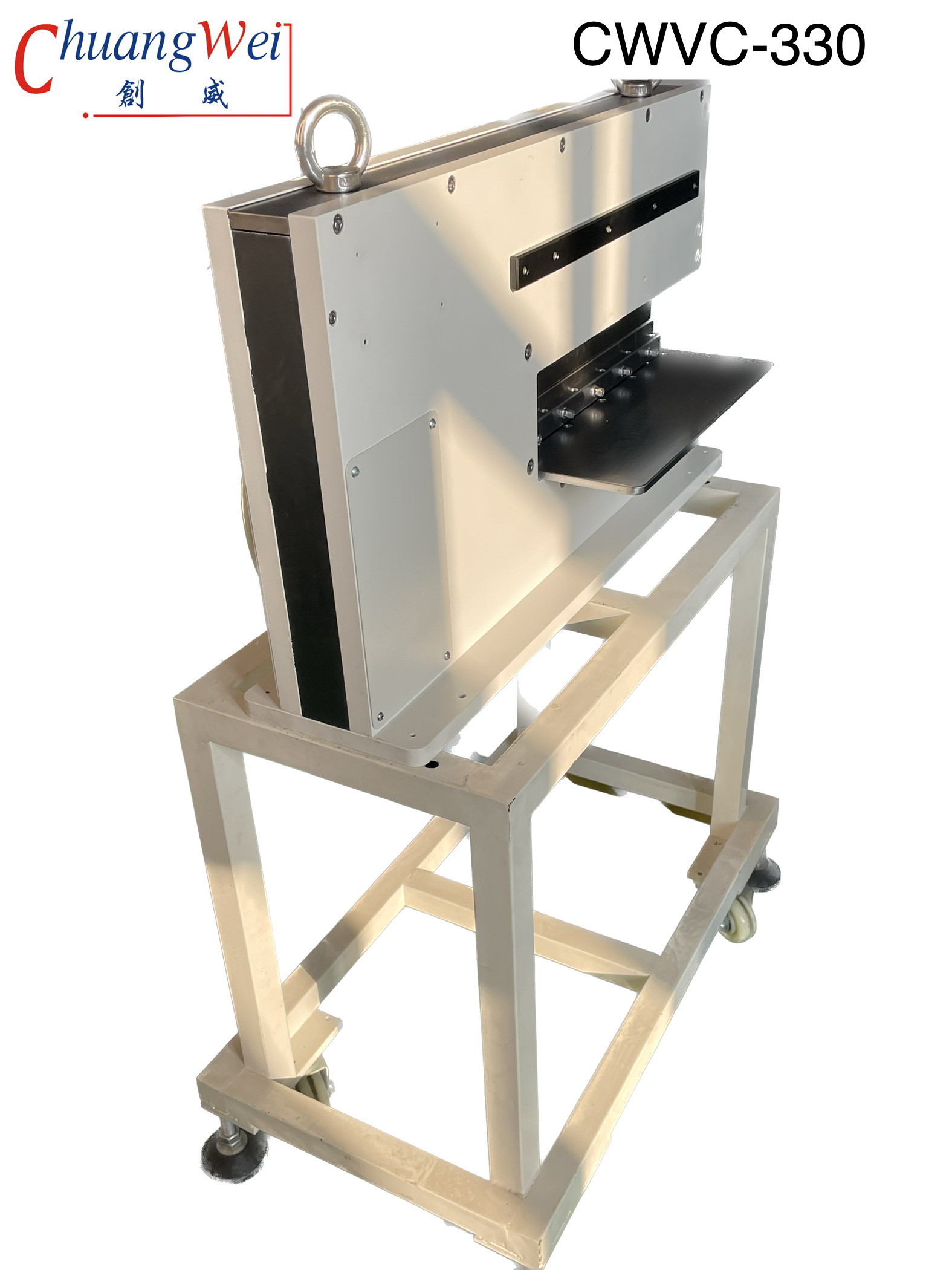

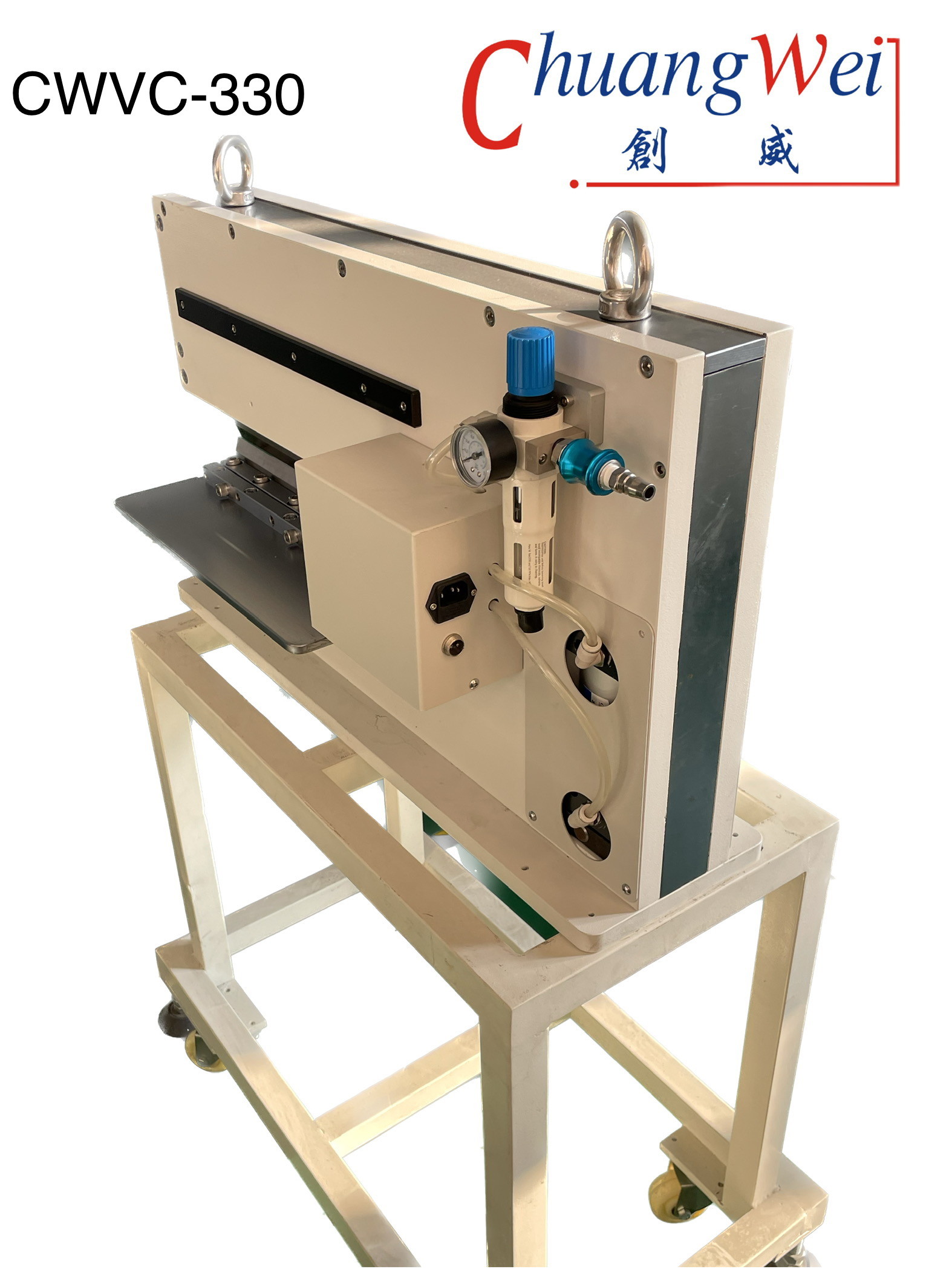

V Cut PCB Separator MCPCB Depaneling Machine With CE ISO Certification Details
1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit
Features:
1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
| Model | SMTfly-330 |
| Max. PCB shearing length | 330mm(Can custom made) |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB shearing speed | due to operator skilled level |
| PCB shearing machine size | 620*230*400mm |
| PCB shearing machine weight | 165kg |
Clients Feedback
Our Service
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
Our Sales Network
Certification
