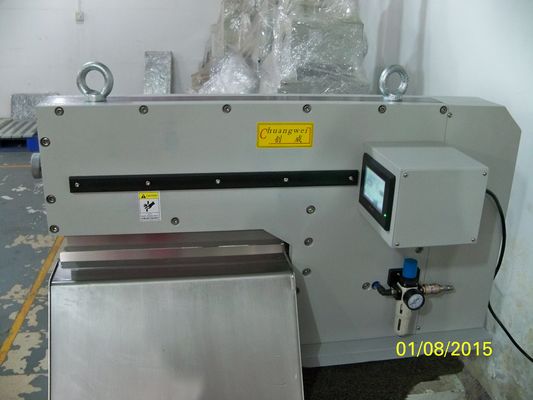

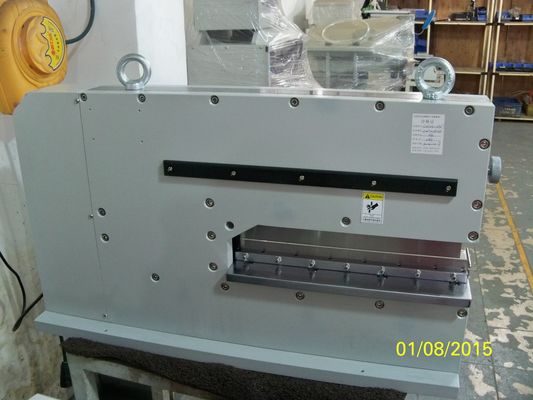

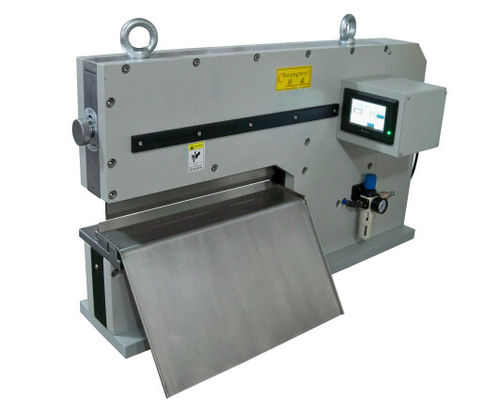

Pcb Separator For Led Alum Board high speed steel with Large LCD Quick Detail:
1. PCB separate
2. Pneumatically driven electric control
3. can cut all kind of PCB board
4. hight quality
5. lowest cut stress.
Features:
1, No vibration during the process to prevent damage to precise PCB
2, Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.

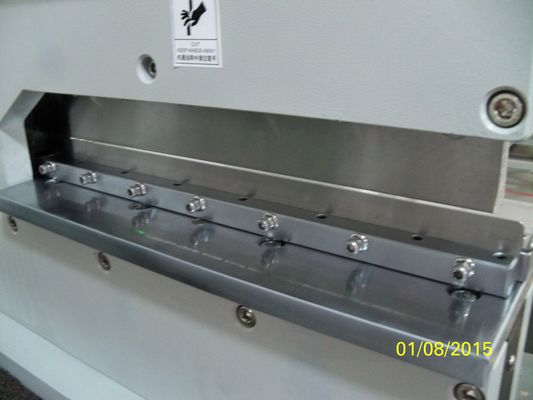

3, Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.
4, Operation and maintenance can be done also by unskilled personnel
Specifications:
| Pcb Separator Model | CWVC- 450J |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB separation length | 450 mm |
| PCB separating thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7Mpa |
| Warranty | free for one year |
| PCB separate supply ability | 1000sets / year |
Company information:
Chuangwei Electronic Equipment Manufactory Limited started to development,manufacture,sale,service for PCB separator machine in1999, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.So you can depend on your company's condition and choose the most suitable one. Also We can manufacture PCB separator machine base your actual requires. Our PCB separator machine mainly applies to separate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
Why us
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
Why us
| 1. Engineers available to service machinery overseas. | Engineers are available to be sent to foreign countries to do machinery training and offer technical support. |
| 2. Mature technique & forerunner to process makes high-quality machinery. | As the largest manufactory in South China, we have 12 years of experience on PCB separator machines and soldering machines. PCB router machine Our R&D team continuously upgrades the existing machines to meet the market development trend. |
| 3. Effective customer service. PCB router machine | All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm, and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
| 4. One year warranty for the machines except for accessories. b router machine | Robust frame construction and Japanese steel blades obtained good appraise and recognized by and overseas clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
| Our mission: | Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
| Our Vision: | PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
