Vietnam Flexible V Groove Single Bench 3 Axis 100mm/S 0.01mm Desktop Long Service Life

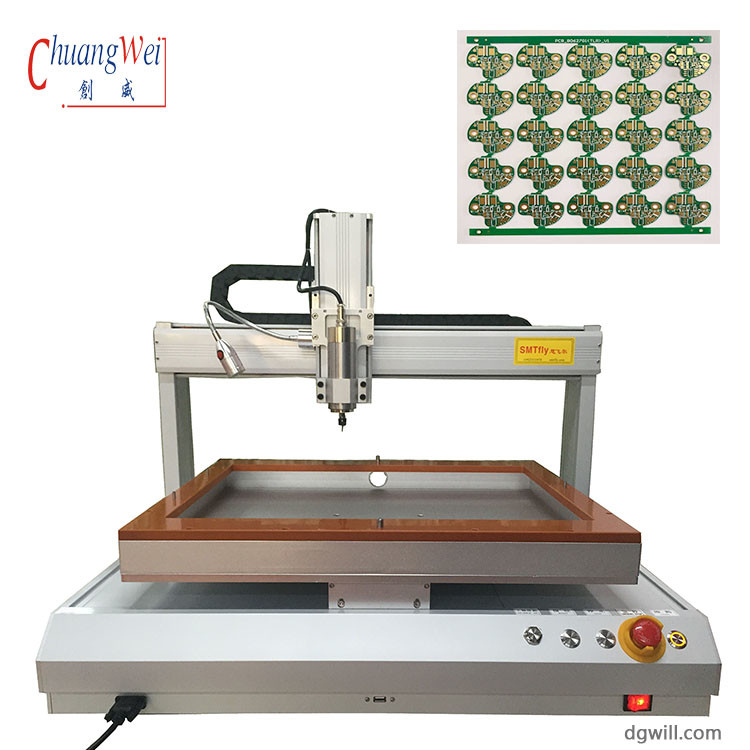

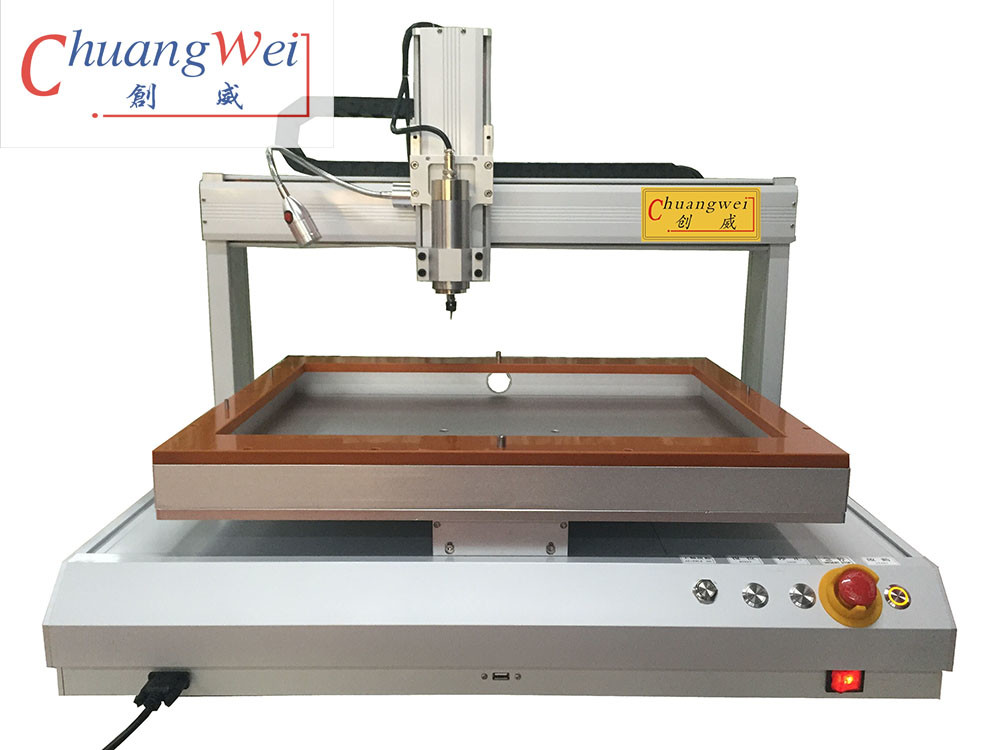

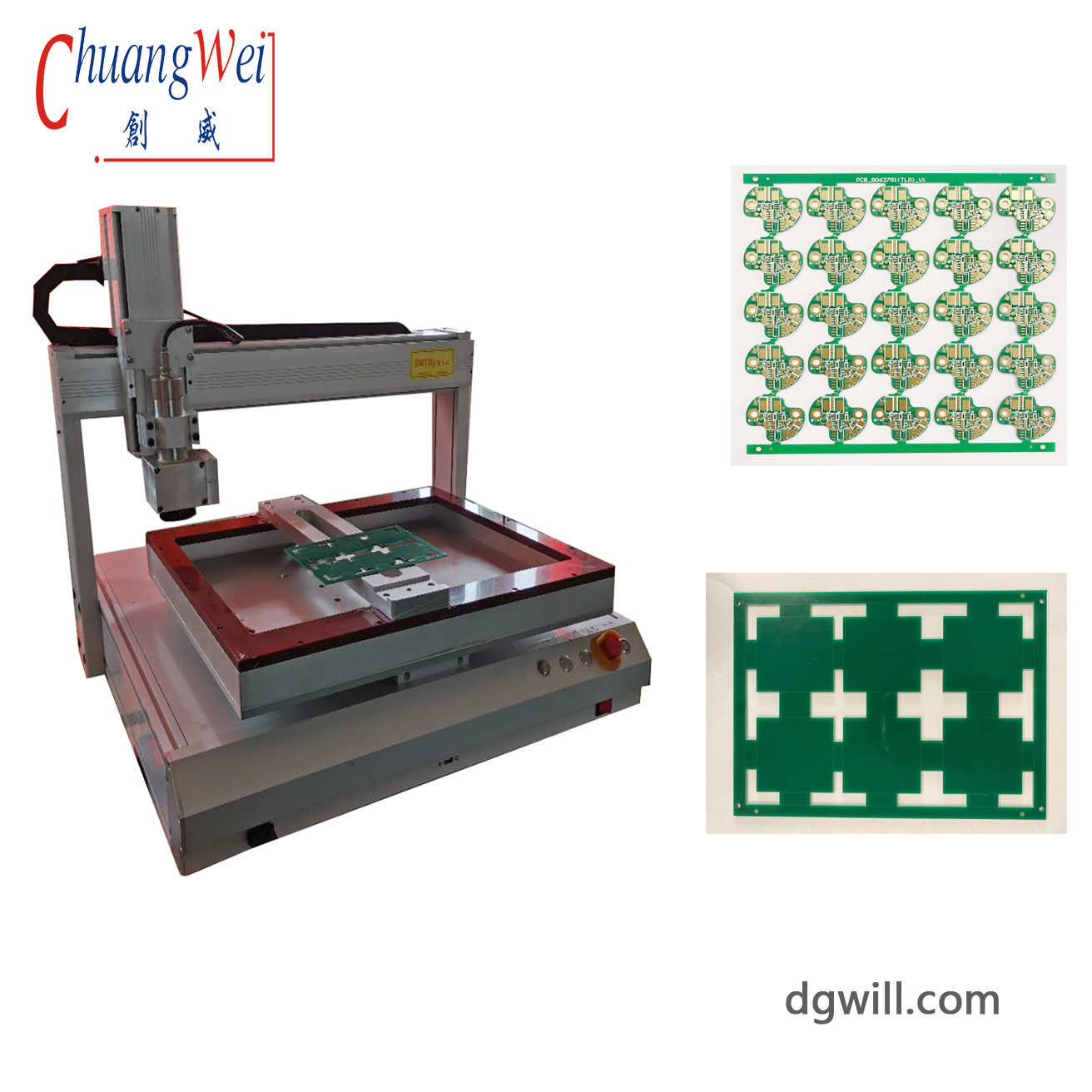

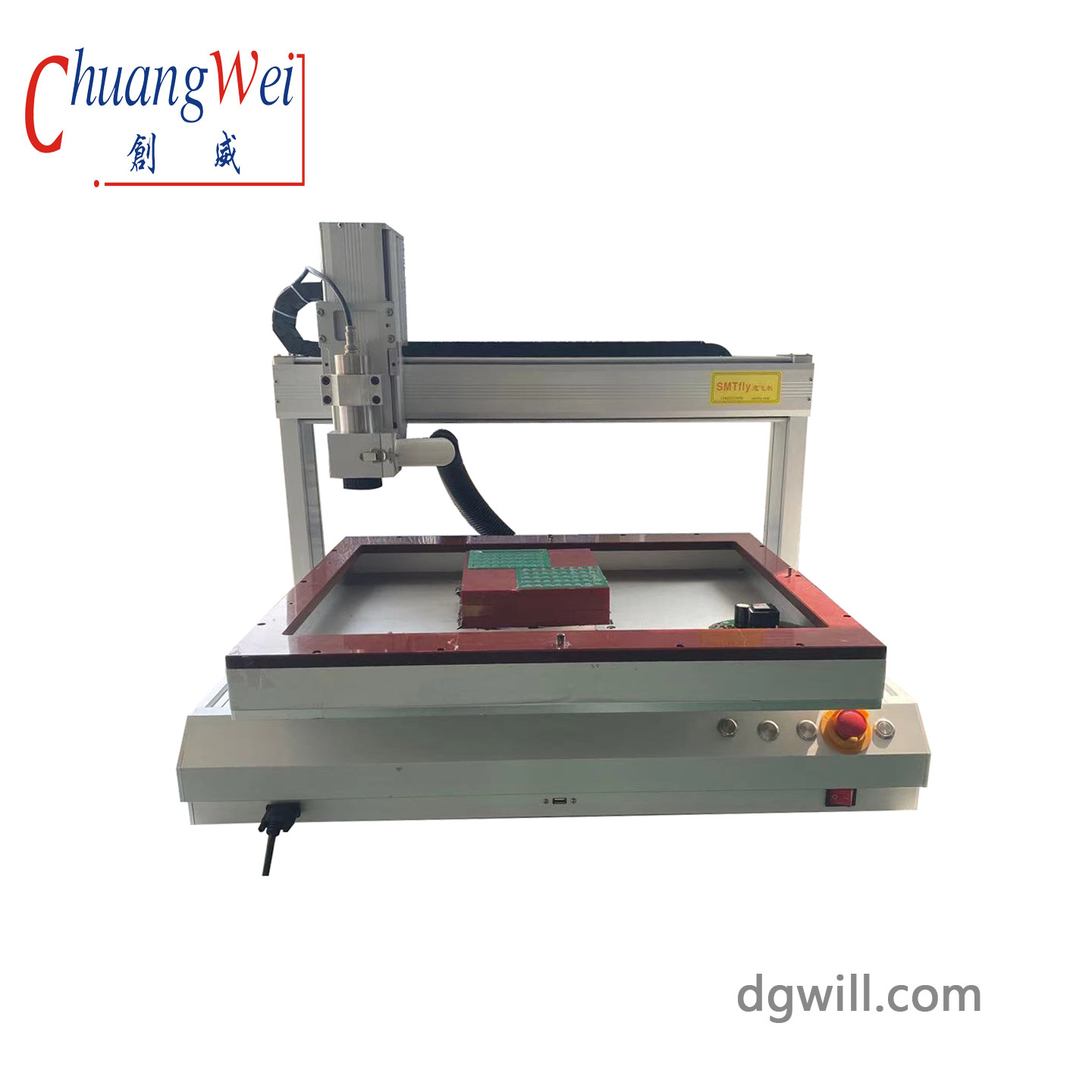

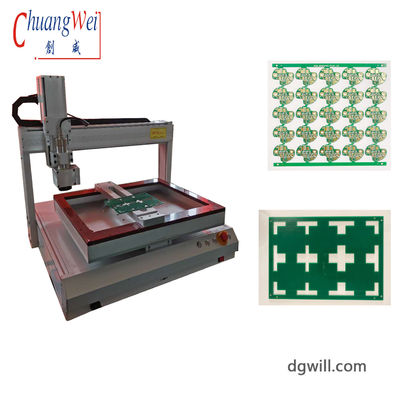

Desktop Single Bench PCB Router Machine With High Speed Cutting And Long Service Life
|
Motor drive system |
Servo / stepper motor |
|
Spindle speed |
50000r/s |
|
Cutting performance |
500mm/s |
|
Drive system repeatability |
±0.02mm |
|
Cutting speed Resolution |
±0.01mm |
|
Max PCB shearing Length |
Unlimited |
|
PCB shearing thickness |
0.3-3.5mm |
|
Voltage and Power |
110V/220V -- 10W |
|
PCB thickness |
0.4-4mm |
|
Working area |
650*450mm |
|
Working air pressure |
0.5-0.7Mpa |
|
Spindle motor speed |
50000r/m |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
980*580*615mm |
|
Weight |
185KG |
|
Security settings |
emergency stop switch |
1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
2. Cut continuouslwithout interrution durinloadinand y p g g
unloading
3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
4. Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
5. Use high-quality hardware to ensure high rigidity and high performance
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 1-2 days after getting your payment
Model: CWVC-3
Power supply: 220V/110V 50HZ/60HZ, 250W
Blade length: 430mm
PCB thickness: 0.2-3.2mm
Size: L740 * W550 * H460mm
Weight: 60KG
Package: Wooden case
It can cut v-cut pcb board to units. Suitable for pcb, aluminum PCB, and fiber panel.
Available PCB thickness: from 0.2mm to 3.2 mm
Available V-cut thickness: from 0.2mm to 2.0mm
Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
