PCB Depaneler PCB Routing Machine for Milling Joints FR4/CEM/MCPCB Boards
PCB Depaneler Specification
| Model | CW-F01-S |
| Standard working area | 350*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |

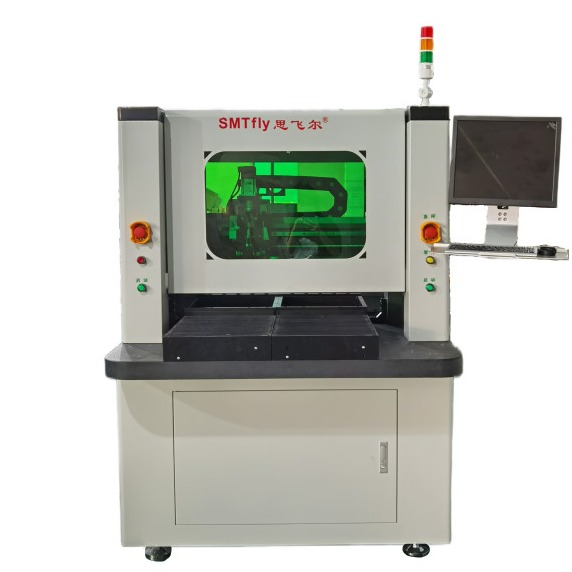

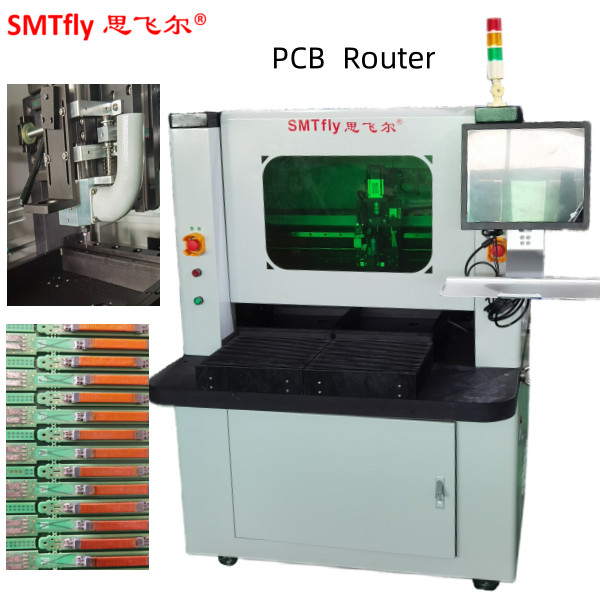

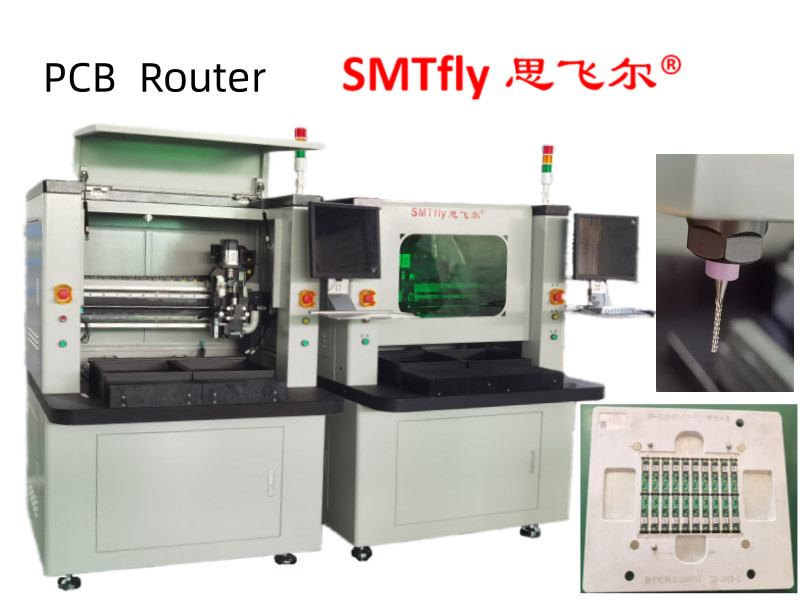

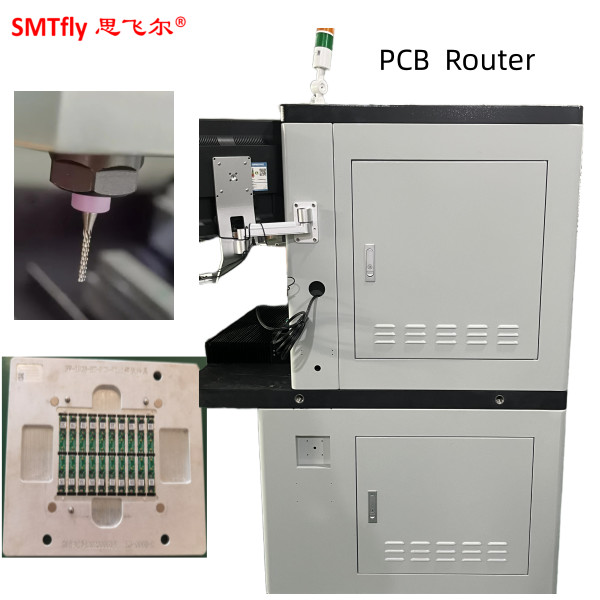

PCB Depaneler Description
This is a new range of Router Machine. It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The system boasts being the worlds fastest router with a cycle rate of 1.5 seconds per tab.
It can accommodate larger PCBs in its two table configuration with maximum panel size of 450mm x 350mm.
A new Graphical User Interface (GUI) software provides user friendly "visual" programming for rapid and accurate online programming.
Gerber files could be imported into the software for easier programs.
