0.01mm Positioning Repeatability CNC PCB Router Machine for Depanelization of PCBA
Introduction:

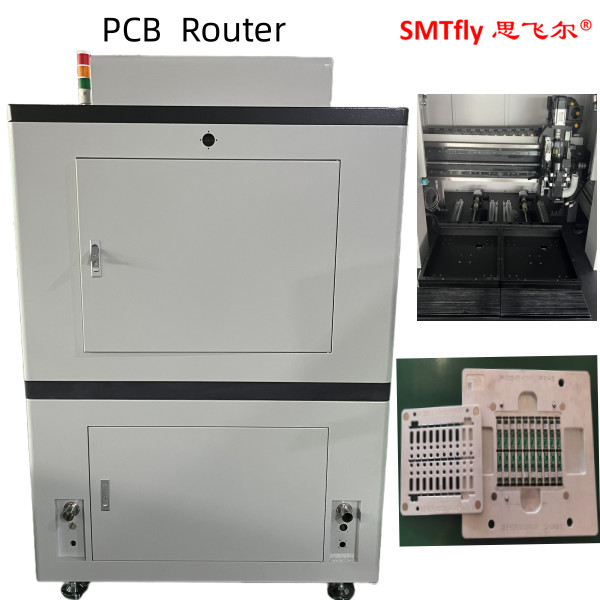

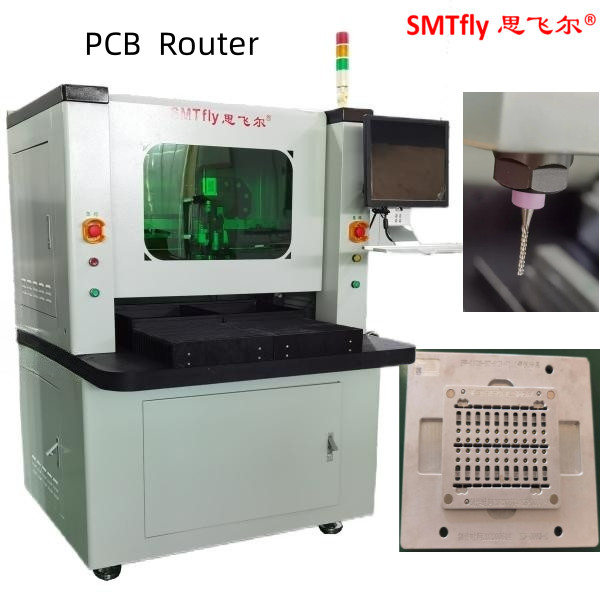

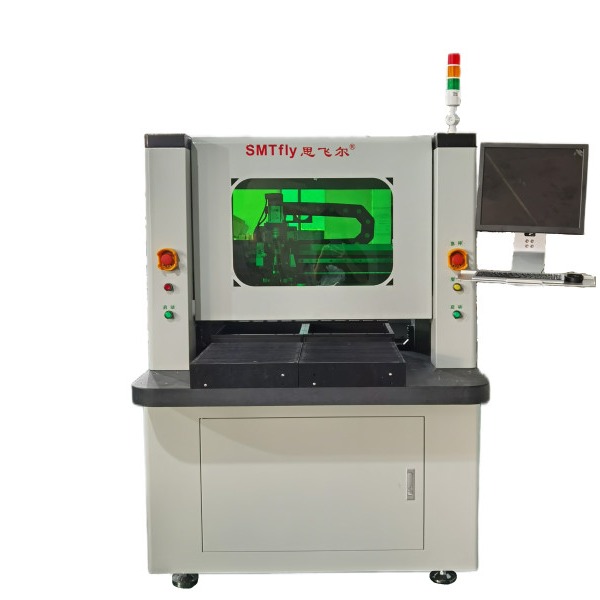

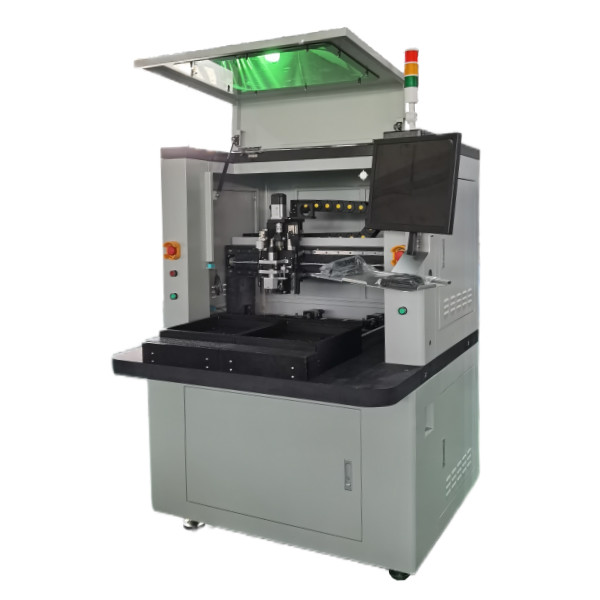

It is a stand-alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accommodate larger PCBs in its two table configuration with a maximum panel size of 650mm x 500mm. Its advanced control software provides user-friendly "visual" programming for rapid and accurate online programming.
Specification:
| Model | SMTfly-F01-S |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | KAVO Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Features:
1. Manual loading/unloading processing.
2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.
3. Friendly touch panel with 10X CCD camera to minimize the time of programming.
4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy.
5. Auto router bit check to prevent the bit break incomplete cutting.
Why choose us
1 . Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2 . One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3 . Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4 . Mature technique & forerunner to process makes high quality machinery .
As largest manufactory in South China , we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
