Home /Products/PCB Router Machine/60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline

60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline

1 Set
MOQ
Negotiable
Price
60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline
Features Gallery Product Description Request A Quote
Features
Specifications
Work Area: 320*320mm
Table: 2
Warranty: One Year
PCB Thickness: 0.5-3.5mm
Spindle Speed: 60000RPM
Description: PCB Router Separator
High Light:

60000RPM PCB Router Machine

,

0.5mm Thickness PCB Router Machine
Basic Infomation
Place of Origin: Dongguan
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-F01-S
Payment & Shipping Terms
Packaging Details: each set be packed in carton boxes
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Product Description

Inline PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board

60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline

Features:



1. Splitting machine can be automatically docked to the production line, saving labor costs

2. Mark point automatic alignment, intelligent correction error

3. Broken knife and sliding knife monitoring, to ensure the normal use of tools

4. Automatic tool change, no need for manual tool change.

5. Followed by dust removal, the dust removal effect is good.


Specification:

Specification
X Y Z Stroke:450*600*60mm Into the board direction: left into the right out
Depanel thickness:0-5mm Cutting range:330mm*330mm
Cutting speed:0~100mm/s adjustable Machine Size: L1800*D1100*H1600
Cutting shapes: straight, L-shaped, square, round, curved Machine Weight:about900KG
Spindle motor: German high-speed motor Host Control: Advantech Industrial Computer
Static electricity elimination: SMC Ion Generator Servo system: Fuji servo
position accuracy:±0.01mm Input Power: AC220V/50Hz
Screws/Guides: HIWIN/THK Air consumption:10N1/Min
Track width adjustment: automatic track adjustment Inlet plate thickness:0.6mm-5mm

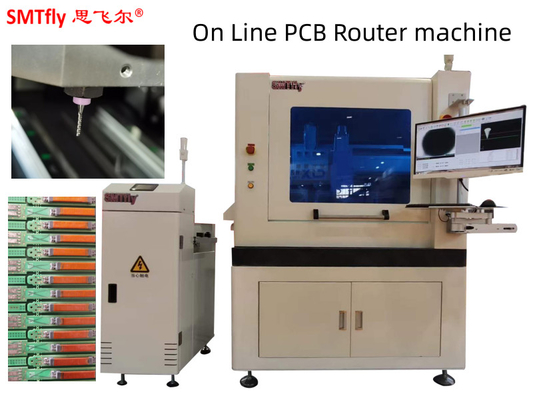

Inline PCB Router Detailed Photos:



60000RPM PCB Router Machine 0.5-3.5mm Thickness CNC Printed Circuit Board Inline 0







More information welcome to contact us:


Email: sales@dgwill.com

Wechat/Whatsapp(Donna): +86 15273473462
SMTfly Electronic Equipment Manufactory
